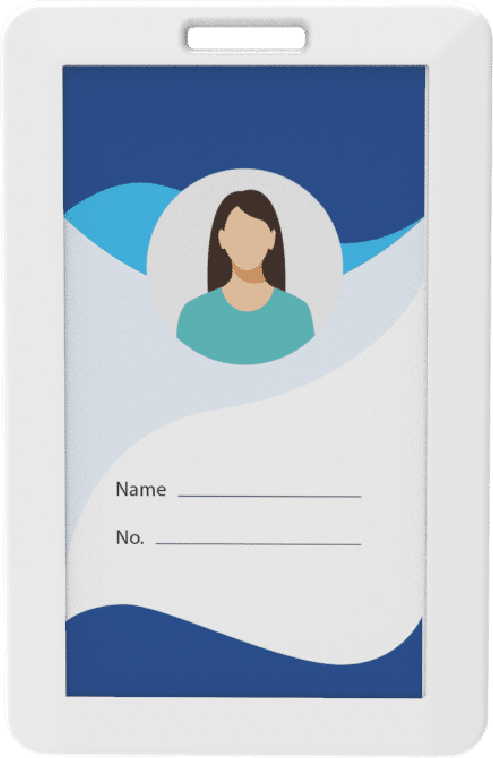

Contact Tracing Badge

Badge Bluetooth Beacon

Lansitec contact tracing badge is designed based on Bluetooth 5.0 and LoRa technology. It uses RSSI for distance measurement and contact tracing. The badge is mainly used for keep social distance in work place or hospital and is especially useful during COVID-19.

Proximity detection function: the badge beeps when other badges  approach. The badge can use vibration and sound to alert the user even without LoRa network. NFC function is also integrated in the badge to facilitate management

Proximity detection, accuracy 2~3m Indoor tracking Distance adjustable

Multiple auto-configuration modes
Multiple contact history report mode

Add your friend/colleagues to the group to avoid noise inteference

FOTA with Bluetooth NFC for easy management

PARAMETERS

Bluetooth Protocol

Bluetooth 5.0

LoRaWAN Protocol

LoRaWAN 1.0.2B

LoRaWAN Band

US915, AU915, EU868, EU433, AS920-923, AS923-925, RU864, ID920, KR920, IN865, KZ865, CLAA, CN470, CN470-Ali

LoRa Distance

> 1km in urban area

LoRa Sensitivity

-139dBm @SF12, BW125kHz, 434MHz/470MHz -137dBm @SF12, BW125kHz, 868MHz/915MHz

Bluetooth Distance

~25m sight distance

Indoor Tracking

Bluetooth, 2~3m accuracy

NFC

Supported

Encryption

AES128

Low Battery Alert

Supported

Buzzer

75dB

Vibrator

Supported

Vibrator Mechanical Noise

<50dB

Proximity Detection

Supported, 2 meters by default. Distance is adjustable through commands.

Bluetooth FOTA

Win10, Android, iOS

Decoder

On-line decoder and decoder source code to expedite the development

Battery

600mAh rechargeable battery

Standby Time

100 hours

Charge Jack

5% ~ 95%

Dimension

97*62*7mm

Operating Temperature

-10°C ~ +60°C

Storage Temperature

-20°C ~ +80°C

Weight

28g

Operating Current

20μA ~ 139mA

Certification

CE, FCC, RCM, UN38.3

Operating Humidity

5% ~ 95%

Certification

CE, FCC, RCM, UN38.3
