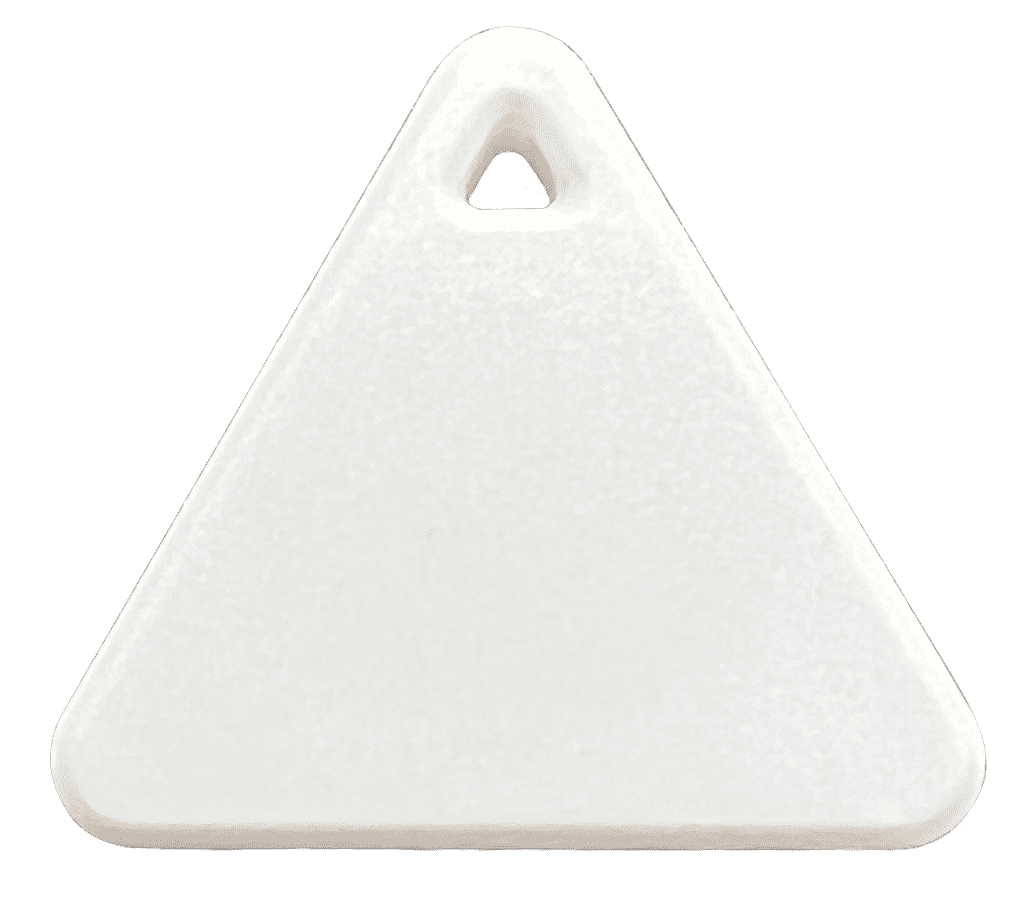

The B003 Bluetooth Beacon is a device that helps you find your personal belongings quickly and easily. You can attach the beacon to anything you want to keep track of, and it will buzz when it communicates with the gateway. The beacon is small and easy to install. It also helps clients monitor the location, condition, and utilization of their assets, as well as the whereabouts of their staff.
Product Specifications
Connectivity
Beacon Protocol
iBeacon
RF Power
-20~+5dBm
Advertise Interval
100ms~10s
Transmission Distance
150m sight distance
Bluetooth Protocol
Bluetooth 5.0
Mechanics
Material
PVC
Colour
Black/White/Green/Pink
Dimension
Equilateral triangle, 37mm side length; thickness 7.5mm
Hole Size
2.8mm
Weight
6.8g
Operating Temperature
-20°C~+70°C
Storage Temperature
-25°C~+75°C
Operating Humidity
5% ~ 95% (non-condensing)
Installation Method
Double-Side Tape; Lanyard; Key Chain
Standby Current
≤5μA
Peak Current
8mA
Average Current
15μA @ 0dBm, 5s advertising interval
Functions
Power Button and SOS Button
Support
Buzzer
Support *It can be activated via a Bluetooth command, for lost and found
Low Power Alarm
Support
LED
Support
Power
Battery Model
CR2032
Battery Capacity
230mAh
Battery Life
765 days on average @ 0dBm, 5s advertising interval
