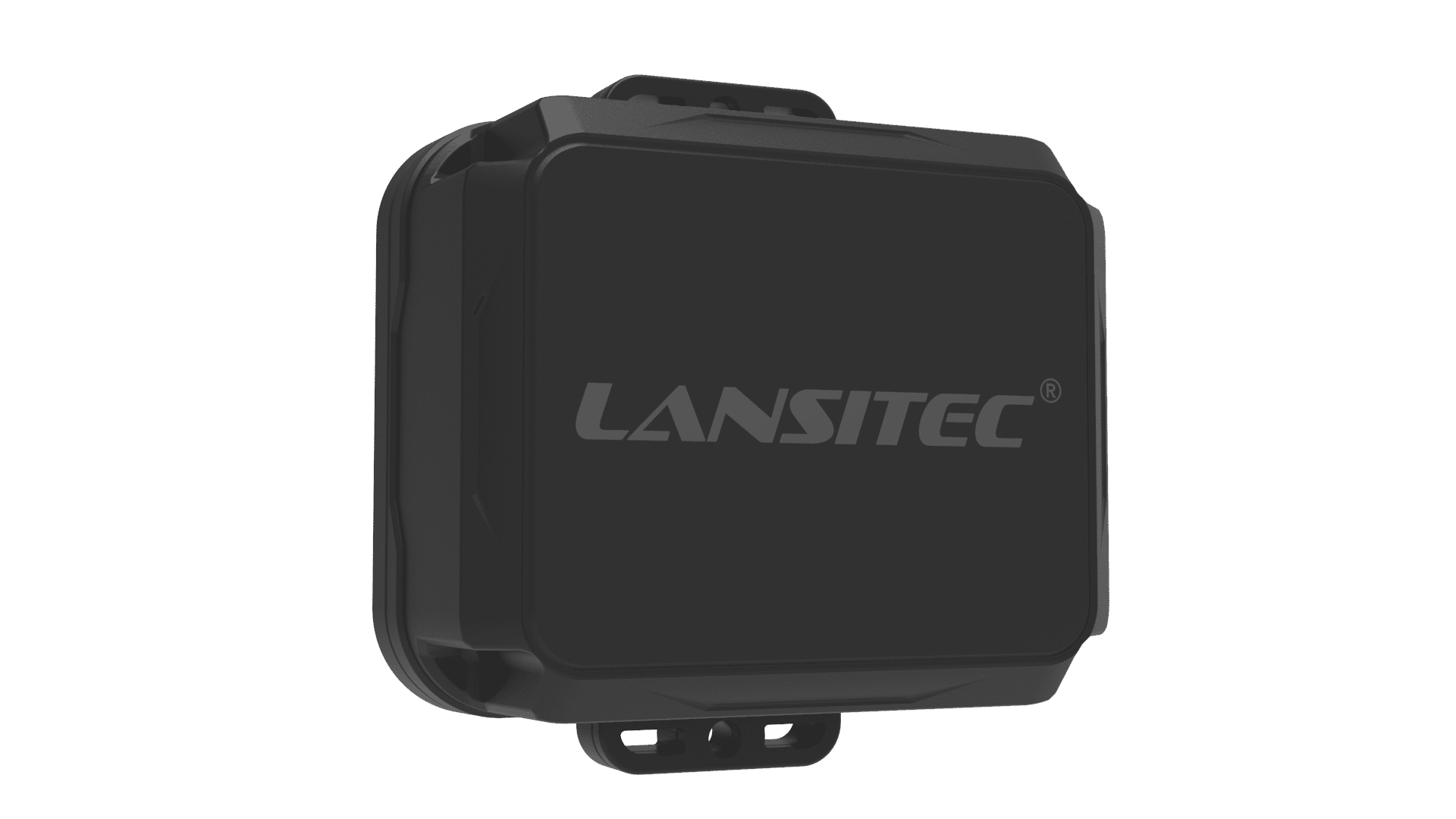

Boost indoor asset visibility with Lansitec’s Micro Bluetooth Gateway, a palm-sized LoRaWAN/BLE bridge that silently harvests beacon and sensor data and pushes it to the cloud in near-real time. Its dual 4000 mAh Li-SoCl₂ cells deliver 6-plus years of maintenance-free uptime, while the rugged IP68 enclosure shrugs off dust, water, and extreme temperatures – giving you dependable coverage anywhere assets move.
Mobile Medical Assets
Locate imaging carts, pumps, or drug trolleys in seconds to boost utilisation and cut losses.
Pharmaceutical Inventory
Scan BLE-tagged drug bins to spot soon-to-expire stock and automate replenishment.
Fleet & Yard Management
Live yard positioning of trailers and service vehicles for faster dispatch.
Personnel Safety Zones
Geo-fence alerts keep staff out of restricted or hazardous areas.
Smart Warehousing
Automate pallet and forklift tracking to accelerate pick-and-pack workflows.
Event & Exhibition Control
Temporary deployment guides visitor flow and protects rental equipment.
Mechanics
Dimension
78*79*35mm with the mounting lugs; 78*66*35mm without the mounting lugs
Operating Temperature
-20°C ~ +70°C
Storage Temperature
-10°C ~ +30°C
Operating Humidity
0% ~ 95% (non-condensing)
Weight
133g
Ingress Protection
IP68
Housing Material
PC and ABS
PCB Coating
Water proof coating
Power
Battery
Li-SoCl2 Battery, 4000mAh×2
Battery Life
Standby current: 25μA Total Uplink Reports: 67000 65 months @ 17dBm, SF7, Bluetooth receiving duration is 60s and LoRaWAN report interval is one hour
Connectivity
Bluetooth Protocol
Bluetooth 5.0
LoRaWAN Protocol
LoRaWAN 1.0.2B
LoRa Frequency
US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470
LoRa Maximum RF Power
22dBm
High TX Power Option
Max. 30dBm and -150dBm receiving sensitivity
LoRa Sensitivity
-139dBm @SF12, BW125kHz, 434MHz/470MHz
-137dBm @SF12, BW125kHz, 868MHz/915MHz
Access Quantity
>500 in one LoRaWAN gateway
Data Rate (bps)
300~30K
Functions
Encryption
AES128
Positioning Precision
3m
Configurable Bluetooth data filter and payload report
Filter any data bytes in a Bluetooth payload and report any via LoRaWAN
Switch
Mechanical
Adjustable Position Report Interval
5s x n (1 to 65536)
Heartbeat Report Interval
30s x n (1 to 255)
FOTA over Bluetooth
Support
Switch
Mechanical
Max. Beacons Supported
105*, maximum of 15 beacon messages at one single LoRaWAN package @SF9
* Please reach out to us if more are needed.
Multiple Bluetooth gateway LoRaWAN report synchronization
Sync the clock and LoRaWAN report
TDMA
Support
Bluetooth Data Compression
Support
