B014 Flex Tag

Achieve ultimate installation flexibility with the Lansitec Flex Tag. Built with a soft, adhesive-friendly silicone gel base, this beacon effortlessly attaches to curved, uneven, or cylindrical surfaces—making it perfect for tracking tools, medical supplies, or equipment with non-flat exteriors. Measuring just 40 × 25 × 18.6 mm, it continuously broadcasts iBeacon packets and supports up to six unique advertising frames. A CR1225 coin cell powers the device for up to 5 years in typical usage scenarios.

B014 Flex Tag Features

What Makes it Unique

Attach Everywhere This beacon effortlessly attaches to curved, uneven, or cylindrical surfaces
Multi-Frame Advertising Supports up to six simultaneous beacon frames for richer data broadcasts (e.g., iBeacon plus custom telemetry).

Flexible Triggers Configure advertisement intervals (100 ms to 10 s) and power levels (-20 dBm to +4 dBm) to balance battery usage and detection range.
Extended Battery Life With two 50mAh CR1225 batteries, it can run up to 5 years on a 5s interval at 0 dBm, minimizing maintenance.

B014 Flex Tag Features Use Cases

What it Could be Used for

Easy and Versatile Installation

Designed with a soft silicone gel base, the Flex Tag
conforms to a wide variety of surfaces—including curved,
irregular, or cylindrical shapes—without the need for
additional brackets or adhesives. Simply press it onto the
target surface for a secure, long-lasting hold, making
deployment quick and hassle-free in any environment.

Tool Inventory

Mark key fobs, spare parts, or diagnostic equipment within fleet vehicles or maintenance bays. The 150 m line-of-sight beaconing range supports timely alerts on asset movement and location status.

Warehouse Management

Streamline inventory by labeling crates, pallets, or high-value items. Optional accelerometer-based advertising helps detect unauthorized movement or mishandling events.

Retail & Event Operations

Deploy on merchandise or promotional materials in pop-up stores and exhibitions. Track foot traffic patterns, item interactions, and replenish stock quickly to meet demand.

Smart Home & Office

Attach to personal belongings or shared office resources (e.g., laptops, conference room equipment). The BLE beacons allow easy device lookup, reducing time spent on searches and losses due to misplacement.

Technical Details

Product Specifications

Mechanics

Dimension

90*60*1.5mm, Thickness: 1.5~2.5mm.

Weight

6.3g

Operating temerature

-20°C~+60°C

Housing Material

Silicone gel

Ingress Protection

IP65

Power

Battery

CR1225 50mAh x 2, Non-replacable battery

Battery Life

5 years (0dBm, 10s advertising interval)

Max. Current

8mA

Standby time

16μA

Bluetooth

TX Power

iBeacon

Advertise Interval

-20~+5dBm

Sensitivty

100ms~10s

Transmission Distance

150m sight distance

Positioning Accuracy

Bluetooth 5.0

Antenna

PCB Antenna

Function

Magnet Button

Support

Status LED

Support

FOTA over Bluetooth

Support

Battery level report

Support

Certification

CE, to be obtained

LoRaWAN

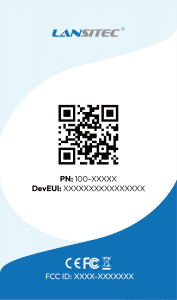

Tracking Label

Say goodbye to lost shipments and untraceable assets with Lansitec’s ultra-thin Tracking Label. Combining GNSS, Bluetooth 5.0, and LoRaWAN technology, this disposable tracking solution provides reliable indoor and outdoor positioning for packages, pallets, and containers. Whether you’re shipping goods across the globe or simply managing inventory within a warehouse, the Tracking Label’s 3-axis accelerometer and automatic BLE/GNSS switching ensure efficient power use without compromising on accuracy. With up to three years of battery life (based on six GNSS reports per day) and an IP66 rating, this label is built to stand up to harsh conditions and lengthy transit times—giving you the confidence to monitor and manage your assets from end to end.

Features

What Makes it Unique

Ultra-Thin & Disposable Design At just 3mm thick, it’s easy to attach to packages or pallets, making it the ideal lightweight, single-use tracking solution.
Dual Indoor/Outdoor Tracking Switch automatically between Bluetooth (1–3m accuracy) indoors and GNSS (<2.5m CEP) outdoors for consistent location visibility.
Long Battery Life A built-in 2000mAh disposable lithium battery can last over three years under typical usage, significantly reducing maintenance.

Intelligent Motion Detection The 3-axis accelerometer detects movement or tampering and adjusts tracking frequency to conserve power.
Rugged IP66 Enclosure Safeguards against moisture, dust, and mild impacts, ensuring reliable performance in transit or storage.
Low Operating Costs LoRaWAN connectivity removes the need for costly cellular data plans, lowering your total cost of ownership.

Use Cases

Where it Could be Used for

Package & Pallet Tracking

Monitor shipments in real time across multiple carriers, alerting you to potential delays, re-routes, or tampering.

Warehouse Inventory Control

Combine the label’s indoor BLE tracking with LoRaWAN coverage to instantly locate items—preventing stockouts or overstock.

Cold Chain Logistics

Pair optional environmental sensors with the label to track temperature-sensitive goods, ensuring compliance and preventing spoilage.

Rental & Leasing Management

Affix a disposable label to equipment or assets on short-term leases, offering accurate usage data and location without long-term commitments or high operational costs.

Smart Returnable Packaging

Improve asset utilization by tracing returnable containers or crates in real time, minimizing losses and accelerating turnaround times.

Relative articles

More Cases

May 28, 2024

Exploring the Lansitec IoT Asset Tracking Label A Technical Review

July 22, 2024

SmartTrack™ Labels for Enhanced Supply Chain Visibility

August 14, 2024

IoT Library Book Tracking: Streamlining check-in/check-out processes and reducing lost…

Technical Details

Product Specifications

Mechanics

Dimension

120*75*3mm

Operating Temperature

-35°C ~ +75°C

Storage Temperature

-45°C ~ +85°C

Operating Humidity

0% ~ 95% (non-condensing)

Weight

50g

Ingress Protection

IP66

Power

Battery

1800mAh Disposable Lithium Battery

Battery Life

> 3 years @ 6 GNSS reports a day

Operating Current

20μA ~139mA

Connectivity

Bluetooth Protocol

Bluetooth 5.0

LoRaWAN Protocol

LoRaWAN 1.0.2B

LoRa Frequency

US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470

LoRa Distance

>1km in urban area

LoRa Sensitivity

-139dBm @SF12, BW125kHz, 434MHz/470MHz
-137dBm @SF12, BW125kHz, 868MHz/915MHz

Bluetooth Distance

150m sight distance

Indoor Tracking

Bluetooth, 1~3m accuracy

Outdoor Tracking

GNSS, <2.5m CEP

Functions

3D Accelerometer

Support

Encryption

AES128

Low Battery Alert

Support

Vibration Intensity Adjustment

Support

Operating Mode

GNSS coordinates acquisition frequency adjustable, LoRa communication frequency adjustable, Automatic BLE and GNSS tracking switching

Certification

CE, FCC, RCM

B011 Helmet Beacon

The Lansitec B011 Helmet Beacon is purpose-built for industrial, healthcare, or security contexts where reliable, long-lasting Bluetooth tracking is crucial. Equipped with a 1,200 mAh rechargeable Li-ion battery, it can run for up to a year at 0 dBm and a 0.5 s broadcast interval. Its IP66-rated ABS/PC housing shields the beacon from dust and water, making it suitable for rugged environments. Supporting iBeacon and optional AoA protocols, the B011 ensures precise indoor/outdoor tracking—even at distances up to 150 m—while optional temperature monitoring adds another layer of situational awareness.

B011 Helmet Beacon Features

What Makes it Unique

Extended Battery Life Sustain up to a year of continuous advertising at moderate intervals; ideal for helmets, machinery, or roaming assets.
Robust Construction IP66 enclosure (80 × 80 × 35 mm, 90 g) withstands heavy use in warehouses, factories, and outdoor sites.
Adjustable RF & Intervals Set RF power from -20 to +4 dBm and advertisement intervals from 100 ms to 10 s to optimize power usage and detection range.

AoA (Optional) Achieve superior location accuracy with angle-of-arrival gateways, crucial for high-security or high-precision tracking.
Temperature Sensing (Optional) Monitor ambient conditions (±5 °C accuracy) in demanding setups, from construction sites to medical wards.
Buzzer Support Enable audible alerts for lost-and-found scenarios, emergency notifications, or status confirmations.

B011 Helmet Beacon Use Cases

What it Could be Used for

Hospital Asset Tracking

Affix the beacon to vital medical equipment or trolleys. The real-time broadcasts help staff locate items quickly, reducing delays in patient care.

Vehicle Monitoring

Attach to hardhats used by drivers or forklift operators in large depots. The beacon’s robust build and year-long battery ensure consistent updates without frequent battery changes.

Industrial Workflow

Place on helmets worn by workers in heavy manufacturing or construction sites. AoA compatibility provides pinpoint positioning for improved safety oversight and efficient team coordination.

Outdoor Equipment

Use the IP66-rated beacon on external power tools or rolling stock in challenging conditions. Extended coverage (up to 150 m) ensures location signals remain strong over extensive work areas.

Maintenance Scheduling

Integrate temperature data and usage intervals to predict maintenance needs on equipment or protective gear. Automate restock alerts and safety checks based on reliable, real-time telemetry.

Relative Articles

More Cases

September 22, 2023

Keep your Workers Safe with Lansitec’s Helmet Tracker Sensor

June 6, 2024

IoT Based Smart Helmet for Construction Workers Tracking

June 10, 2024

Visitor Management with Smart Helmet using IoT

Technical Details

Product Specifications

Mechanics

Dimension

80*80*35mm

Weight

90g

Color

White

Material

ABS and PC

Operating Temperature

-10°C~+65°C; optional: 1200mAh battery, -40°C~+125°C

Storage Temperature

-25°C ~ +75°C

Operating Humidity

5% ~ 95% (non-condensing)

Ingress Protection

IP66

Power

Battery

1200mAh Li-ion rechargeable battery

Battery Life

1 Year (0dBm, 0.5s transmit interval)

Connectivity

Beacon Protocol

iBeacon, Bluetooth AoA

RF Power

-20~+4 dBm, configurable in 4 dBm steps

Sensitivity

-96dBm

Advertise Interval

100ms ~ 10s adjustable

Bluetooth Protocol

Bluetooth 5.1

Coverage Range

150m sight distance

Supply Capacity

>300k/month

Frequency

2.4GHz

Functions

Temperature Report

Optional, please advise Lansitec upon ordering

Temperature Sensor Range

-40°C~+85°C

Temperature Accuracy

Chamber temperature in the beacon, ±5°C

Temperature Resolution

0.25°C

Buzzer

Optional

Certification

CE, FCC

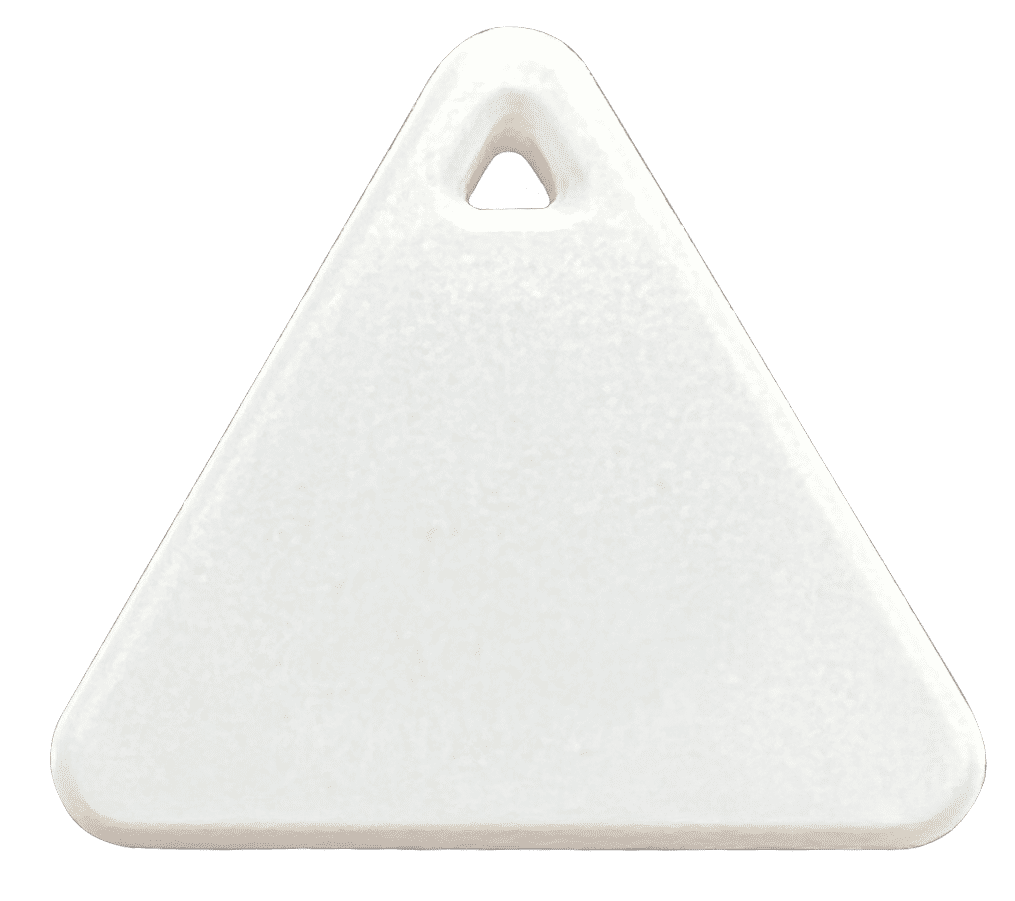

B004 Bluetooth Beacon

Introducing the Lansitec B004 Bluetooth Beacon—a sleek, triangle-shaped device that can be attached to anything you want to track or safeguard. Operating on Bluetooth 5.0 and supporting the iBeacon protocol, it transmits signals up to 150 m (line of sight) to compatible gateways or smart devices. Powered by a single CR2032 battery (230 mAh), the beacon can last about 765 days at a 5 s advertisement interval and 0 dBm RF power. In addition to location broadcasting, it features a built-in buzzer for lost-and-found alerts, an SOS button for quick assistance, and optional AoA capabilities to boost positioning accuracy. Its compact form factor and low power consumption make it ideal for personal belongings, vehicle keys, and on-the-go employees who need an extra layer of security and convenience.

B004 Bluetooth Beacon Features

What Makes it Unique

Compact & Lightweight Triangle design (side length ~37 mm, thickness ~7.5 mm) easily attaches to keyrings, lanyards, or valuables.
Long Battery Life A single CR2032 cell (230 mAh) delivers up to 765 days of runtime at 0 dBm and 5 s advertisement intervals.
Buzzer & SOS Built-in audible alarm activated via BLE, plus a power/SOS button for quick assistance or manual power toggling.

Flexible Advertisement Adjust intervals from 100 ms to 10 s, balancing real-time visibility with power efficiency.
Optional AoA Support Enables enhanced positioning accuracy when paired with AoA-capable gateways, ideal for high-precision asset or personnel tracking.
Low Power Alarm & LED Offers visual and battery-level alerts to maintain reliable service with minimal downtime.

B004 Bluetooth Beacon Use Cases

What it Could be Used for

Personal Asset Tracking

Secure wallets, keychains, or laptops. Receive immediate beeps or location pings if they go missing, cutting down search times or theft risks.

Vehicle Key Management

Keep track of multiple key fobs in auto dealerships, fleet operations, or personal garages. The beacon’s buzzer quickly locates misplaced keys, ensuring minimal disruption to daily workflows.

Personnel & Visitor IDs

Equip staff or guests with discreet beacons in large facilities (factories, campuses) for real-time location monitoring and a built-in SOS function. Quick identification helps address emergencies or restrict unauthorized movements.

Public Rental Services

Attach beacons to e-scooters or bikes. The wide 150 m broadcast radius and buzzer function aid in quick returns and reduce theft or misuse.

Event & Expo Navigation

Distribute beacons to attendees or VIPs. The iBeacon signals help with crowd analytics or customized notifications—like location-based announcements—while the buzzer and SOS features offer a safety net in busy venues.

Relative Articles

More Cases

June 27, 2024

Track Assets Efficiently with New B004 Bluetooth Tracker Label

July 24, 2024

Smart Bluetooth Tracker Beacon Tag B004: A Technical Review

July 29, 2024

Visitor Experience at Tourist Attractions with B004 Bluetooth Beacon

Technical Details

Product Specifications

Mechanics

Dimension

Equilateral triangle, 37mm side length; thickness 7.5mm

Weight

6.8g

Color

Black/White/Green/Pink

Material

ABS

Operating Temperature

-20°C~+70°C

Storage Temperature

-25°C~+75°C

Operating Humidity

5% ~ 95% (non-condensing)

Installation Method

Double-Side Tape; Lanyard; Key Chain

Power

Battery

CR2032

Battery Capacity

230mAh

Battery Life

765 days on average @ 0dBm, 5s advertising interval

Standby Current

≤5μA

Peak Current

8mA

Average Current

15μA @ 0dBm, 5s advertising interval

Connectivity

Beacon Protocol

iBeacon

RF Power

-20~+4dBm

Advertise Interval

100ms~10s

Transmission Distance

150m sight distance

Bluetooth Protocol

Bluetooth 5.0

Functions

Power Button and SOS Button

Support

Buzzer

Support
*It can be activated via a Bluetooth command, for lost and found

Low Power Alarm

Support

LED

Support

Lansitec Bluetooth Bracelet

The Lansitec Bluetooth Bracelet goes beyond basic tracking by incorporating motion-sensor–based positioning (1–3 m accuracy), health monitoring (skin temperature, heart rate, blood pressure, steps), and an SOS button for emergency assistance. Featuring wear detection, the device automatically enters a low-power mode when it’s not on a user’s wrist—extending its battery life (4–10 days under normal usage). A 210 mAh rechargeable battery provides more than one month of standby, while the magnetic charging port allows full recharging in just 1.5 hours. Its compact form factor, real-time alerts for low power/shutdown, and iBeacon broadcasting capability make the Lansitec Bluetooth Bracelet a versatile choice for patient care, workforce safety, or visitor oversight.

Bluetooth Bracelet Features

What Makes it Unique

Indoor/Outdoor Tracking Tracks location via BLE with 1–3 m accuracy and automatically reports data as configured.
Vital Sign Monitoring Reads skin temperature, heart rate, blood pressure, and step count for continuous health insights.
Wear Detection & Power Saving Switches to low-power mode when not worn, prolonging battery life (up to 4–10 days under normal use).

SOS Button Triggers alarm messages, starts positioning, and reports health metrics immediately in emergencies.
Magnetic Charging Recharges the 210 mAh battery in around 1.5 hours, providing more than one month standby time.
Low Power/Shutdown Alerts Notifies the user of critical battery levels or device shutdown for uninterrupted tracking.

Bluetooth Bracelet Use Cases

What it Could be Used for

Patient Safety & Care

Track patient movement across wards or care facilities. Monitor vital signs in real time, and respond faster to wandering or emergency calls.

Healthcare Coordination

Enhance operational efficiency with accurate, real-time information on patient positions—streamlining handovers, reducing delays, and minimizing miscommunication among caregivers.

Workforce Security

Issue bracelets to employees in high-risk areas (factories, chemical plants). The real-time position data and SOS function help managers coordinate safe operations and respond rapidly to incidents.

Visitor Oversight

Provide guests with temporary bracelets at large events, theme parks, or secure compounds. Track crowd flow, retrieve health metrics (if applicable), and quickly address lost or off-limits scenarios.

Long-Term Patient Monitoring

Deploy for patients needing extended observation—e.g., in rehab centers or senior homes. Blood pressure, temperature, and step counts empower staff to detect anomalies promptly and deliver proactive care.

Relative Articles

More Cases

March 11, 2021

How is Bluetooth Bracelet helpful in Reopening Schools Safely?

April 25, 2024

Improving Elderly Care in Assisted Living Facilities with Bluetooth Bracelet

December 23, 2024

Industrial Worker Safety with a Smart Helmet and Bluetooth Bracelet…

Technical Details

Product Specifications

Mechanics

Dimension

43*23*13mm

Weight

25g

Color

Black by default

Material

ABS

Operating Temperature

-10°C~+65°C

Storage Temperature

-20°C~+80°C

Operating Humidity

5% ~ 95% (non-condensing)

Waterproof Level

IP67

Wristband

TPU

Power

Battery

210mAh, 3.8V

Battery Life

More than 1 month

Normal Usage

4~10 days (depends on positioning frequency)

Charging Method

Magnetic adsorption charging

Charging Time

1.5 hours

Connectivity

Beacon Protocol

iBeacon

Bluetooth Protocol

Bluetooth 5.0

Bluetooth Function

BLE (Bluetooth Low Energy)

OTA via Bluetooth

Support

Positioning Accuracy

1~3m

Display

Screen Resolution

64x32, White OLED

Screen Size

0.49 inch

LED

2 LED lights (red and blue)

Functions

LED

Support

Physical Button

Support

Skin Temperature

Support

Blood Pressure

Support

Heartbeat

Support

Step Count

Support

Vibration Motor

Support

SOS Function

Support

Wear Detection

Support

RFID

Optional

Touch Button

Not Support

WiFi

Not Support

B003 Bluetooth Beacon

The Lansitec B003 Bluetooth Beacon is a compact triangular device that makes lost-and-found scenarios a breeze. Powered by a single CR2032 battery, it can last up to 765 days with typical usage (5 s advertisement interval). Its built-in buzzer sounds alerts when activated via a Bluetooth command—handy for locating misplaced belongings or issuing SOS signals. With iBeacon compatibility, 150 m line-of-sight coverage, and an optional AoA feature for precise positioning, the B003 Beacon is ideal for personal items, staff monitoring, and asset management across various industries.

B003 Bluetooth Beacon Features

What Makes it Unique

Compact Triangular Design Sleek, 37 mm-sided form factor (7.5 mm thick) that fits easily on keychains, lanyards, or inside bags.
Buzzer & SOS Button Trigger audible alerts for lost-and-found or emergency signals when connected to a compatible gateway or mobile app.
Extended Battery Life A single CR2032 battery (230 mAh) provides up to 765 days of operation at a 5 s advertising interval.

iBeacon & Optional AoA Broadcast iBeacon packets for straightforward integration with most Bluetooth gateways; enable AoA for more precise location data.
Low Power Alarms & LED Receive warnings when the battery is running low; LED and buzzer guide the user during pairing or reconfiguration.

B003 Bluetooth Beacon Use Cases

What it Could be Used for

Personal Item Tracking

Attach the beacon to keys, wallets, or other daily essentials. If misplaced, activate the buzzer or use the real-time location data to find items quickly, minimizing downtime and frustration.

Vehicle Monitoring

Keep a beacon on vehicle keys, spare parts, or diagnostic gear. Ensure quick retrieval or theft deterrence with automatic motion alerts when the beacon is moved unexpectedly.

Personnel Tracking

Provide employees or visitors with the beacon in large facilities. Combine with BLE gateways to detect real-time whereabouts, ensuring security and prompt responses to emergencies or restricted-area violations.

Shared Asset Management

Track multi-user resources—like projectors, tools, or safety equipment—to see who has them, where they are in use, and receive alerts if they’re taken beyond authorized boundaries.

Travel & Luggage

Slip a beacon into suitcases or backpacks before traveling. Whether at busy airports or hotel lobbies, the buzzer function offers an instant alert if your luggage moves unexpectedly, preventing mix-ups or theft.

Relative Articles

More Cases

May 26, 2024

Lansitec B-Mobile Solution for Car and Key Tracking in Dealerships

June 20, 2024

Cleaning Staff Tracking with B003 Bluetooth iBeacons

July 31, 2024

Mini Smart Bluetooth Tracker Beacon Tag B003 Comprehensive Technical Review

Technical Details

Product Specifications

Mechanics

Dimension

Equilateral triangle, 37mm side length; thickness 7.5mm

Weight

6.8g

Color

Black/White/Green/Pink

Material

ABS

Operating Temperature

-20°C~+70°C

Storage Temperature

-25°C~+75°C

Operating Humidity

5% ~ 95% (non-condensing)

Installation Method

Double-Side Tape; Lanyard; Key Chain

Power

Battery

CR2032

Battery Capacity

230mAh

Battery Life

765 days on average @ 0dBm, 5s advertising interval

Standby Current

≤5μA

Peak Current

8mA

Average Current

15μA @ 0dBm, 5s advertising interval

Connectivity

Beacon Protocol

iBeacon

RF Power

-20~+4dBm

Advertise Interval

100ms~10s

Transmission Distance

150m sight distance

Bluetooth Protocol

Bluetooth 5.0

Functions

Power Button and SOS Button

Support

Buzzer

Support
*It can be activated via a Bluetooth command, for lost and found

Low Power Alarm

Support

LED

Support

B002 Bluetooth Label

Introducing the Lansitec B002 Bluetooth Label, a remarkably thin (1.5–2.5 mm) BLE device built around the iBeacon protocol. Flexible yet durable, it can be attached to various surfaces—from medical equipment and shipping boxes to wallets and personal items—using double-sided adhesive. Whether you need to track assets within a hospital or manage inventory in a bustling warehouse, the B002 Bluetooth Label offers reliable, low-power beaconing that gateways or mobile devices can detect and decode in real time. With optional motion-based advertising and battery-level reporting, it helps you maintain pinpoint visibility over your most critical resources.

B002 Bluetooth Label Features

What Makes it Unique

Ultra-Thin Form Factor At just 1.5–2.5 mm thick, the flexible PVC construction suits tight spaces or curved surfaces, simplifying deployment.
Configurable Advertisement Interval Adjust between 100 ms and 10 s to balance power consumption and real-time detection.
Long Battery Life A built-in 500 mAh Li-MnO₂ battery can last up to 52 months at a 5 s interval without an accelerometer.

Movement & Battery Reporting (Optional) Enable motion-based broadcast or battery-level alerts for dynamic asset monitoring.
AoA Support (Optional) Pair with AoA-capable gateways for high-precision positioning, enhancing location granularity.
iBeacon Protocol Seamless integration with Bluetooth 5.0 receivers, ensuring broad compatibility across asset-tracking applications.

B002 Bluetooth Label Use Cases

What it Could be Used for

Hospital Asset Tracking

Affix labels to critical tools or devices, such as infusion pumps or portable imaging systems. Automatic location updates ensure rapid retrieval, reducing losses and improving patient care.

Vehicle Tracking

Mark key fobs, spare parts, or diagnostic equipment within fleet vehicles or maintenance bays. The 150 m line-of-sight beaconing range supports timely alerts on asset movement and location status.

Warehouse Management

Streamline inventory by labeling crates, pallets, or high-value items. Optional accelerometer-based advertising helps detect unauthorized movement or mishandling events.

Retail & Event Operations

Deploy on merchandise or promotional materials in pop-up stores and exhibitions. Track foot traffic patterns, item interactions, and replenish stock quickly to meet demand.

Smart Home & Office

Attach to personal belongings or shared office resources (e.g., laptops, conference room equipment). The BLE beacons allow easy device lookup, reducing time spent on searches and losses due to misplacement.

Relative Articles

More Cases

July 20, 2023

New Product: Bluetooth Tracking Sticker Label

May 14, 2024

B002 Bluetooth Label: Practicality in Tracking

June 18, 2024

Lansitec Launches Innovative B002 Bluetooth Label for Asset Tracking

Technical Details

Product Specifications

Mechanics

Dimension

90*60*1.5mm, Thickness: 1.5~2.5mm.

Weight

10g

Color

Blue in default, Customizable

Material

PVC

Operating Temperature

-35°C~+75°C

Storage Temperature

-45°C~+85°C

Operating Humidity

5% ~ 95% (non-condensing)

Installation Method

Double-side adhesive paste

Power

Battery

Li-MnO2, non-replaceable

Battery Capacity

500mAh

Battery Life

52 months @ 0dBm, 5s advertisement interval without the accelerometer

Standby Current

≤5μA

Peak Current

8mA

Average Current

15μA @ 0dBm, 5s advertising interval, without the 3D Accelerometer

Connectivity

Beacon Protocol

iBeacon

RF Power

-20~+4dBm

Advertise Interval

100ms~10s

Transmission Distance

150m sight distance

Bluetooth Protocol

Bluetooth 5.0

i5 Wearable
Bluetooth Beacon

The Lansitec i5 Wearable Bluetooth Beacon pairs a compact, IP67-rated beacon core with a comfortable silicone gel band—ensuring reliable, water-resistant performance in hospitals, care centers, event venues, and more. Powered by a single CR2032 battery, it continuously broadcasts iBeacon messages (with customizable intervals) for up to two years at 0 dBm. This durable bracelet is ideal for monitoring patients, visitors, or staff who need to be tracked in real time, helping improve safety protocols and operational efficiency. An optional AoA upgrade enables precision location services, further enhancing the beacon’s value in security-sensitive or healthcare environments.

i5 Wearable Bluetooth Beacon Features

What Makes it Unique

IP67 Water Resistance Fully sealed beacon core withstands splashes, dust, and submersion, making it suitable for frequent sanitization or outdoor usage.
Comfortable Silicone Gel Band Durable yet gentle on skin; easily adjustable for different wrist sizes in patient or visitor applications.
Extended Battery Life A CR2032 (230 mAh) cell provides up to 2 years of continuous broadcasting at 0 dBm/5 s intervals.

Multiple Power Settings RF power adjustable from -40 to +4 dBm, plus advertisement intervals from 100 ms to 10 s to balance energy consumption and detection range.
Optional AoA Support Combine with AoA-capable gateways to achieve sub-meter accuracy for high-priority tracking.
Lightweight & Low Profile Weighs just 21 g in total (7.8 g main body + band), offering ease and comfort for daily wear.

i5 Wearable Bluetooth Beacon Use Cases

What it Could be Used for

Patient Safety & Tracking

Monitor patient movements in hospitals or care facilities to ensure timely treatment and prevent wandering. In emergencies, instantly identify the patient’s location for faster response.

Visitor Monitoring

Issue bracelets to visitors in restricted or high-traffic venues, such as exhibitions or theme parks. Track real-time occupancy and movement patterns without the inconvenience of check-in stations.

Personnel Security

Assign wearable beacons to staff working in sensitive environments (labs, server rooms), triggering alerts if they approach unauthorized zones or need immediate assistance. Provide employees or visitors with the beacon in large facilities. Combine with BLE gateways to detect real-time whereabouts, ensuring security and prompt responses to emergencies or restricted-area violations.

Recreation & Sports

Arm participants with waterproof, lightweight tags for events like marathons or group activities. Organizers can track progress, record times, and quickly handle on-site medical or security incidents.

Workplace Timekeeping

Use the i5 Beacon as an automated check-in/check-out device for factory workers or contractors operating in large facilities. The hands-free beacon logs location-based timestamps, reducing manual paperwork while improving attendance accuracy.

Relative Articles

More Cases

March 11, 2021

How is Bluetooth Bracelet helpful in Reopening Schools Safely?

September 18, 2024

The i5 Wearable Bluetooth Beacon: Key Features and Real-World Applications

February 12, 2025

Case Study: Enhancing Windows Security with Lansitec Bluetooth Beacons and…

Technical Details

Product Specifications

Mechanics

Dimension

32.6*9.0mm

Weight

Main body: 7.8g; Total weight (with band): 21g

Color

Main: white, Band: black

Material

Main: ABS, Band: silicon gel

Operating Temperature

-20°C~+70°C

Storage Temperature

-25°C~+75°C

Operating Humidity

5% ~ 95% (non-condensing)

Ingress Protection

IP67

Power

Battery

CR2032

Battery Capacity

230mAh

Battery Life

2 years @ 0dBm, 5s advertising interval

Standby Current

≤5μA

Peak Current

8mA

Average Current

12μA @ 0dBm, 5s advertising interval

Connectivity

Beacon Protocol

iBeacon

RF Power

-40~+4dBm

Advertise Interval

100ms~10s

Transmission Distance

150m sight distance

Bluetooth Protocol

Bluetooth 5.0

i3 Portable Bluetooth Tag

Unlock effortless asset and personnel tracking with the Lansitec i3 Portable Bluetooth Tag. Featuring a compact 38 × 25 × 5 mm design, this beacon advertises iBeacon packets continuously and can broadcast up to six distinct frames. Powered by a CR2032 coin cell, it delivers up to 765 days of battery life under typical conditions. Thanks to its built-in 3D accelerometer, the tag can dynamically report movement data—ideal for monitoring medical equipment, vehicles, or any items in motion. The optional AoA (Angle of Arrival) feature further refines location accuracy for environments requiring pinpoint tracking.

i3 Portable Bluetooth Tag Features

What Makes it Unique

Ultra-Compact Build Fits easily on medical devices, office equipment, or personal belongings without adding bulk.
Multi-Frame Advertising Supports up to six simultaneous beacon frames for richer data broadcasts (e.g., iBeacon plus custom telemetry).
3D Accelerometer Triggers dynamic movement-based advertising to capture usage patterns or detect unauthorized activity.

Flexible Triggers Configure advertisement intervals (100 ms to 10 s) and power levels (-20 dBm to +5 dBm) to balance battery usage and detection range.
Extended Battery Life With a 230 mAh CR2032 battery, it can run up to 765 days on a 5 s interval at 0 dBm, minimizing maintenance.
Optional AoA Support Paired with AoA-capable gateways, achieves more accurate location tracking in crowded or multi-floor indoor environments.

i3 Portable Bluetooth Tag Use Cases

What it Could be Used for

Hospital Asset Tracking

Affix the beacon to portable imaging devices, patient transport carts, or medication boxes for real-time location updates. Accelerometer data reveals usage frequency, while battery-saving intervals reduce overhead.

Vehicle Monitoring

Place tags on key sets or diagnostic tools. Quick detection ensures minimal downtime during maintenance, and movement alerts can detect unauthorized usage or potential theft.

Personnel Tracking

Issue tags to staff in high-security environments (labs, server farms). The 3D accelerometer triggers location broadcasts only upon movement, prolonging battery life while retaining accurate logs of who goes where.

Tool Inventory

Keep close tabs on power tools or specialized equipment in workshops. Movement-based broadcasts reveal usage rates and movement data, helping managers coordinate maintenance schedules.

Smart Retail & Events

Equip conference badges or promotional items with multi-frame beaconing. Organizers track crowd flow and engagement in real time, enhancing visitor experiences and capturing actionable insights for marketing or security purposes.

Relative Articles

More Cases

August 21, 2024

Review of i3+ Mini Bluetooth Smart Finder Tag Tracker

August 30, 2024

Enhancing Delivery Operations with the i3+ Bluetooth Smart Finder Tag

Technical Details

Product Specifications

Mechanics

Dimension

38*25*5mm

Weight

6.2g

Color

White

Material

ABS

Hole Size

3mm

Operating Temperature

-20°C~+70°C

Storage Temperature

-25°C~+75°C

Operating Humidity

5% ~ 95% (non-condensing)

Installation Method

Double-side adhesive paste

Power

Battery

CR2032

Battery Capacity

230mAh

Battery Life

765 days on average @ 0dBm, 5s advertising interval, without the 3D Accelerometer

Standby Current

≤5μA

Peak Current

8mA

Average Current

15μA @ 0dBm, 5s advertising interval, without the 3D Accelerometer

Connectivity

Beacon Protocol

iBeacon

RF Power

-20~+4dBm

Advertise Interval

100ms~10s

Transmission Distance

150m sight distance

Bluetooth Protocol

Bluetooth 5.0

B005 Bluetooth Beacon

Experience long-lasting, hassle-free Bluetooth tracking with the Lansitec B005 Bluetooth Beacon, a robust BLE device delivering up to five years of continuous operation at a 500 ms advertising interval. Equipped with two high-capacity CR2477 batteries (total 2000 mAh), it broadcasts iBeacon or AoA messages to compatible gateways within a 150 m line-of-sight range. The IP68-rated enclosure and optional temperature monitoring ensure reliable performance in challenging conditions—making this beacon perfect for healthcare facilities, fleet operations, and large-scale asset tracking.

B005 Bluetooth Beacon Features

What Makes it Unique

Extended Battery Life Two CR2477 coin cells (2000 mAh total) enable up to five years of operation at 0 dBm, 500 ms transmit intervals.
Configurable Broadcast Advertisement intervals range from 100 ms to 10 s, with adjustable TX power from -20 dBm to +4 dBm.
IP68 Enclosure Dustproof, waterproof design (82 × 64 × 21 mm) with optional integrated temperature sensor (±5 °C accuracy).

AoA (Optional) Enhance location accuracy when paired with AoA-capable gateways, providing sub-meter asset or personnel tracking.
High Production Capacity Scalable supply of over 300 k units per month for widespread deployments in hospitals, factories, or logistics centers.

B005 Bluetooth Beacon Use Cases

What it Could be Used for

Hospital Asset Tracking

Securely attach the beacon to essential medical gear (like ventilators, portable imaging devices) for multi-year tracking without frequent battery changes. Real-time location updates minimize the risk of lost or delayed equipment.

Vehicle Tracking

Maintain oversight of fleets, monitor vehicle keys, or track on-board cargo. With up to 150 m coverage, operators can pinpoint items quickly, cutting downtime and preventing unauthorized use.

Warehouse Optimization

Place beacons on pallets or storage bins. The extended battery life allows them to remain in place for years, reducing maintenance overhead while providing continuous inventory visibility.

Extreme-Temperature Deployments

Leverage the optional -40 °C to +125 °C battery configuration for cold storage facilities or hot industrial plants, preserving operational data in harsh conditions.

Outdoor Event Management

Deploy beacons at outdoor fairs or festivals under IP68 protection. AoA capabilities and optional buzzer features enable real-time geolocation of staff or temporary structures, optimizing crowd flow and safety.

Relative Articles

More Cases

September 30, 2021

Hospital Asset Equipment and Staff Tracking System with Lansitec

February 12, 2025

B005 Bluetooth Beacon: Your Essential Tracker for Every Industry

February 12, 2025

Case Study: Enhancing Windows Security with Lansitec Bluetooth Beacons and…

Technical Details

Product Specifications

Mechanics

Dimension

82*64*21mm (with the lug)

Weight

43g

Color

White

Material

PC

Operating Temperature

-20°C~+70°C; optional: 1200mAh battery, -40°C~+125°C

Storage Temperature

-25°C~+75°C

Operating Humidity

5% ~ 95% (non-condensing)

Ingress Protection

IP68

Power

Battery

CR2477 (1000mAh) x2

Battery Capacity

2000mAh

Battery Life

5 Years (0dBm, 0.5s transmit interval)

Connectivity

Bluetooth Protocol

iBeacon, Bluetooth AoA

RF Power

-20~+4 dBm, configurable in 4 dBm steps

Sensitivity

-96dBm

Advertise Interval

100ms ~ 10s adjustable

Bluetooth Protocol

Bluetooth 5.1

Coverage Range

150m sight distance

Supply Capacity

>300k/month

Frequency

2.4GHz

Functions

Temperature Report

Optional, please advise Lansitec upon ordering

Temperature Sensor Range

-40°C~+85°C

Temperature Accuracy

Chamber temperature in the beacon, ±5°C

Temperature Resolution

0.25°C

Buzzer

Optional

Certification

CE, FCC

B006 Badge
Bluetooth Beacon

Introducing the Lansitec B006 Badge Bluetooth Beacon—a versatile, badge-style transmitter designed for easy wear or attachment. Powered by either a 600 mAh rechargeable Li-ion battery or a 440 mAh non-rechargeable option, it offers up to one year of service at 0 dBm and a 1 s advertisement interval. Broadcasting iBeacon messages continuously, the B006 can be fine-tuned (100 ms to 5 s intervals) to balance coverage (up to 150 m) and battery longevity. Whether tracking hospital equipment or managing a mobile workforce, this compact beacon (97×62×7 mm) offers flexible power choices, optional temperature sensing, and an AoA upgrade for precise location data.

B006 Badge Bluetooth Beacon Features

What Makes it Unique

Flexible Battery Options Choose between a 600 mAh rechargeable battery or a 440 mAh non-rechargeable (2×CR2032) battery to suit specific operational needs.
Up to 1 Year Standby Maintain reliable performance at 0 dBm with a 1 s broadcast interval, saving on maintenance checks.
Adjustable TX & Interval Set transmit power from -20 dBm to +4 dBm and adjust advertisement intervals (100 ms to 5 s) for maximum efficiency or real-time detection.

Wide Coverage Achieves a line-of-sight range of up to 150 m, ideal for industrial or campus-wide environments.
Optional AoA & Temperature Sensing Unlock precise asset tracking or environment monitoring by pairing with AoA-capable gateways or adding the temperature sensor.
Robust Build Lightweight ABS housing with optional buzzer integration for alerts or lost-and-found functionality.

B006 Badge Bluetooth Beacon Use Cases

What it Could be Used for

Hospital Asset Tracking

Label medical devices, beds, or patient wristbands with a rechargeable or disposable beacon. Real-time location data minimizes the risk of equipment misplacement and ensures timely patient care.

Vehicle Monitoring

Attach the beacon to driver badges or keyrings in fleet operations. Proactively track usage hours, location, and unauthorized movement to improve operational efficiency and security.

Warehouse Automation

Monitor pallets, carts, or staff ID badges in large distribution centers. The adjustable interval and power level let you balance real-time inventory checks with battery preservation.

Facility Access Control

Integrate with ID management systems for employees or visitors. AoA support offers floor-level accuracy, while the buzzer feature enables audible prompts during restricted-area breaches.

Event Credentialing

Use the B006 as an event pass that logs entries, triggers location-based announcements, or assists in crowd flow analysis. The long standby time covers multi-day conferences without frequent battery swaps.

Relative Articles

More Cases

December 2, 2024

B006 Bluetooth Beacon Badge for Indoor Asset Tracking Solution

February 12, 2025

How the B006 Badge Transformed Campus Attendance & Security

Technical Details

Product Specifications

Mechanics

Dimension

97*62*7mm

Color

White

Material

ABS

Operating Temperature

-10°C~+65°C

Storage Temperature

-20°C~+80°C

Operating Humidity

5% ~ 95% (non-condensing)

Power

Battery Option 1

Li-ion rechargeable battery, 600mAh

Battery Option 2

440mAh (2 x CR2032) non-rechargeable battery

Battery Life

One year (TX Power 0dBm, 1s interval)

Connectivity

Beacon Protocol

iBeacon

RF Power

4dBm to -20dBm in a 4dBm step (Bluetooth 5.0)

Sensitivity

-97dBm

Advertise Interval

100ms ~ 5s adjustable

Bluetooth Protocol

Bluetooth 5.0

Coverage Range

150m sight distance

Supply Capacity

>300k/month

Functions

Temperature Report

Optional, please advise Lansitec upon ordering

Temperature Sensor Range

-40°C~+85°C

Temperature Accuracy

Chamber temperature in the beacon, ±5°C

Temperature Resolution

0.25°C

Buzzer

Optional

B010 Industrial Beacon

Meet the Lansitec B010 Industrial Beacon, an IP68-rated Bluetooth 5.0 device built for reliable tracking in harsh environments like factories, warehouses, and shipping yards. Powered by two AA batteries (or optional Li/SOCl₂ cells), it can broadcast iBeacon messages for up to five years at 0 dBm and a one-second interval. Its robust PC housing shields internal components from dust, moisture, and vibrations, while optional AoA support delivers precise positioning for high-value assets and personnel. With a maximum range of 100 m and user-configurable TX power and intervals, the B010 stands out as a durable, long-lasting beacon solution.

B010 Industrial Beacon Features

What Makes it Unique

Long Battery Life Achieves up to five years of continuous iBeacon broadcasts at 0 dBm and a one-second interval using AA or Li/SOCl₂ battery options.
IP68 Industrial Casing Dustproof, waterproof PC enclosure (100×100×20 mm) withstands tough environments and temperature extremes.
Adjustable RF & Intervals Fine-tune output power (-20 dBm to +4 dBm) and advertisement rate (100 ms to 5 s) for optimal coverage and battery efficiency.

Optional AoA Support Improves real-time location tracking when paired with AoA-compatible gateways, making it ideal for large-scale production floors or busy distribution centers.
OTA Updates Use iOS, Android, or Windows 10 devices to adjust UUID, TX power, or intervals without dismantling the beacon.

B010 Industrial Beacon Use Cases

What it Could be Used for

Hospital Asset Tracking

Attach to critical medical equipment—like imaging devices or mobile carts—for real-time location monitoring. Streamlined searches reduce downtime and prevent equipment misplacement, especially in high-traffic areas.

Vehicle Tracking

Ideal for fleet yards, distribution hubs, or small vehicles in factories. Broadcast vehicle presence, enabling route optimization and reducing operational costs associated with idle time and unauthorized movement.

Industrial Workflow

Implement in factories to monitor material flow and coordinate forklift paths. The beacon’s extended battery life and IP68 enclosure thrive amid dust, vibrations, and varying climates.

Heavy-Duty Storage

Label long-term storage containers outdoors or in partially covered areas. The optional Li/SOCl₂ battery ensures year-round operation, even in freezing winters or scorching summers.

Construction & Mining

Track mobile assets or workers in rugged sites. AoA compatibility offers detailed location data, helping managers keep staff safe and respond promptly to equipment relocations or anomalies.

Relative Articles

More Cases

March 6, 2025

Build Smarter: B010 & B-Mobile for Construction Tracking

March 6, 2025

B010 Industrial Beacon: Advanced IoT Asset Tracking Solution

Technical Details

Product Specifications

Mechanics

Dimension

100*100*20mm

Weight

150g

Material

PC

Operating Temperature

-20 to 54°C (Alkaline battery), optional: -40°C ~ 85°C Li/SOCl2 Battery

Storage Temperature

-25°C ~ +75°C

Operating Humidity

5% ~ 95% (non-condensing)

Ingress Protection

IP68

Power

Battery

AAx2; optional Battery: 2xER14250 (2x1200mAh)

Battery Life

10 years @ 0dBm and 0.5s advertisement interval

Bluetooth

Bluetooth Protocol

Bluetooth 5.0

Beacon Protocol

iBeacon

Frequency

2.402GHz to 2.480GHz

TX Power

-20 to +4 dBm TX power, configurable in a 4 dBm step

Sensitivity

-96dBm

Range

Up to 100m

Advertising Interval

100ms ~ 5s, configurable in a 100ms step, 1s in default

UUID by Default

F2-A5-2D-43-E0-AB-48-9C-B6-4C-4A-83-00-14-67-20

OTA

Support iOS, Android, Windows 10

Antenna

PCB Antenna

Beacon

B014 Flex Tag

What Makes it Unique

What it Could be Used for

Technical Details

Product Specifications

LoRaWAN Tracking Label

Features

What Makes it Unique

Use Cases

Where it Could be Used for

Relative articles

More Cases

Technical Details

Product Specifications

B011 Helmet Beacon

What Makes it Unique

What it Could be Used for

More Cases

Technical Details

Product Specifications

B004 Bluetooth Beacon

What Makes it Unique

What it Could be Used for

More Cases

Technical Details

Product Specifications

Lansitec Bluetooth Bracelet

What Makes it Unique

What it Could be Used for

More Cases

Technical Details

Product Specifications

B003 Bluetooth Beacon

What Makes it Unique

What it Could be Used for

More Cases

Technical Details

Product Specifications

B002 Bluetooth Label

What Makes it Unique

What it Could be Used for

More Cases

Technical Details

Product Specifications

i5 Wearable Bluetooth Beacon

What Makes it Unique

What it Could be Used for

More Cases

Technical Details

Product Specifications

i3 Portable Bluetooth Tag

What Makes it Unique

What it Could be Used for

More Cases

Technical Details

Product Specifications

B005 Bluetooth Beacon

What Makes it Unique

What it Could be Used for

More Cases

Technical Details

Product Specifications

B006 Badge Bluetooth Beacon

What Makes it Unique

What it Could be Used for

More Cases

Technical Details

Product Specifications

B010 Industrial Beacon

What Makes it Unique

What it Could be Used for

More Cases

Technical Details

Product Specifications

LoRaWAN
Tracking Label

i5 Wearable
Bluetooth Beacon

B006 Badge
Bluetooth Beacon
