Bluetooth RSSI

B014 Flex Tag

Achieve ultimate installation flexibility with the Lansitec Flex Tag. Built with a soft, adhesive-friendly silicone gel base, this beacon effortlessly attaches to curved, uneven, or cylindrical surfaces—making it perfect for tracking tools, medical supplies, or equipment with non-flat exteriors. Measuring just 40 × 25 × 18.6 mm, it continuously broadcasts iBeacon packets and supports up to six unique advertising frames. A CR1225 coin cell powers the device for up to 5 years in typical usage scenarios.

B014 Flex Tag Features

What Makes it Unique

  • Attach Everywhere This beacon effortlessly attaches to curved, uneven, or cylindrical surfaces
  • Multi-Frame Advertising Supports up to six simultaneous beacon frames for richer data broadcasts (e.g., iBeacon plus custom telemetry).
  • Flexible Triggers Configure advertisement intervals (100 ms to 10 s) and power levels (-20 dBm to +4 dBm) to balance battery usage and detection range.
  • Extended Battery Life With two 50mAh CR1225 batteries, it can run up to 5 years on a 5s interval at 0 dBm, minimizing maintenance.

B014 Flex Tag Features Use Cases

What it Could be Used for

IoT Library Book Tracking

Easy and Versatile Installation

Designed with a soft silicone gel base, the Flex Tag
conforms to a wide variety of surfaces—including curved,
irregular, or cylindrical shapes—without the need for
additional brackets or adhesives. Simply press it onto the
target surface for a secure, long-lasting hold, making
deployment quick and hassle-free in any environment.

Smart Helmet with Sensors for Accident Prevention Enhancing Safety and Efficiency

Tool Inventory

Mark key fobs, spare parts, or diagnostic equipment within fleet vehicles or maintenance bays. The 150 m line-of-sight beaconing range supports timely alerts on asset movement and location status.

Warehouse Shelf B014 Flex Tag LANSITEC TECHNOLOGY CO. LTD

Warehouse Management

Streamline inventory by labeling crates, pallets, or high-value items. Optional accelerometer-based advertising helps detect unauthorized movement or mishandling events.

Retail Inventory Compact Bluetooth Gateway

Retail & Event Operations

Deploy on merchandise or promotional materials in pop-up stores and exhibitions. Track foot traffic patterns, item interactions, and replenish stock quickly to meet demand.

Smart Office Environment Socket Sync Bluetooth Gateway

Smart Home & Office

Attach to personal belongings or shared office resources (e.g., laptops, conference room equipment). The BLE beacons allow easy device lookup, reducing time spent on searches and losses due to misplacement.

Technical Details

Product Specifications

Mechanics

Dimension

90*60*1.5mm, Thickness: 1.5~2.5mm.

Weight

6.3g

Operating temerature

-20°C~+60°C

Housing Material

Silicone gel

Ingress Protection

IP65

Power

Battery

CR1225 50mAh x 2, Non-replacable battery

Battery Life

5 years (0dBm, 10s advertising interval)

Max. Current

8mA

Standby time

16μA

Bluetooth

TX Power

iBeacon

Advertise Interval

-20~+5dBm

Sensitivty

100ms~10s

Transmission Distance

150m sight distance

Positioning Accuracy

Bluetooth 5.0

Antenna

PCB Antenna

Function

Magnet Button

Support

Status LED

Support

FOTA over Bluetooth

Support

Battery level report

Support

Certification

CE, to be obtained

LTE Cat-1
Asset Management Tracker

The Cat-1 Asset Management Tracker unites multi-GNSS, BLE 5.0 and LTE Cat-1 for always-connected indoor & outdoor asset intelligence. Its twin 4 000 mAh Li-SOCl2 cells (8 000 mAh total) power up to 3+ years of adaptive reporting inside an IP68, palm-sized enclosure. Motion sensors, tamper switch and door-open detection transform raw position pings into actionable utilisation data—ideal for containers, transit cases and unattended machinery.

Asset Management Tracker (Cat-1) Features

What Makes it Unique

  • Global Cat-1 Coverage 25 + FDD bands with MQTT / HTTP(S) / TCP / UDP uplinks.
  • Dual-Mode Positioning < 2.5 m CEP by GNSS outdoors; 3 m BLE RSSI indoors.
  • Edge Smart Rules Geo-fence, motion duration, shock, door and tamper alerts on board.
  • Ultra-Long Autonomy 15 µA sleep current yields 30 k GNSS or 500 k BLE reports.
  • Offline Cache & Burst Stores 40 locations when out of coverage, uploads on reconnect.
  • Asset BLE Tag Sync Inventories nearby beacons to know what is inside each case.
  • Wide Temp Range −45 °C … +85 °C operation, waterproof-coated PCB.
  • FOTA & NFC Provisioning Firmware upgrades and tap-to-pair setup without unsealing.

Asset Management Tracker (Cat-1) Use Cases

What it Could be Used for

Factory Machine Status Monitoring LoRaWAN Container Tracker

Machine-Status Monitor

Correlate vibration hours and shock spikes to schedule maintenance and prevent downtime.

Cold Chain Logistic Temperature Monitoring

Cold-Chain Compliance

Pair with BLE temperature probes inside vaccine coolers; Cat-1 pushes threshold breaches instantly.

Visitor Experience at Tourist Attractions with B004 Bluetooth Beacon

Museum & Exhibit Security

Shock-, motion- and door-sensing safeguard priceless artifacts during transit and storage.

Enhancing Container Tracking Efficiency with Lansitec LoRaWAN Cat-1 Asset Management Tracker LANSITEC TECHNOLOGY CO. LTD

Container Tracking

Real-time GNSS & door-open alerts secure sea-rail containers through ports, depots and yards.

Technical Details

Product Specifications

Mechanics

Dimension

78*79*35mm with the mounting lugs; 78*66*35mm without the mounting lugs

Weight

133g

Ingress Protection

IP68

Housing Material

PC and ABS

PCB Coating

Water proof coating

Operating Temperature

-45°C ~ +85°C

Storage Temperature

-60°C ~ +90°C

Operating Humidity

0% ~ 95% (non-condensing)

Power

Battery

Li/SOCl2 4000mAh x 2

GNSS (report interval >10minutes)

Approx. 30,000 times

Bluetooth positioning

Approx. 500,000 times

Standby Current

15μA

Max. Current

145mA

Cat-1

Regions

North America

Europe / Africa

China / India

Latin America

FFD

B2/B4/B5/B12/B13/ B66

B1/B3/B5/B7/B8/B20

B1/B3/B5/B8

B2/B3/B4/B5/B7/B8/B28/ B66

TTD

N/A

N/A

B34/B38/B39/B40/ B41

N/A

SIM Card

Nano or eSIM

Protocol

MQTT, HTTP(S), TCP, UDP

Bluetooth

Bluetooth Protocol

5.0, iBeacon, Eddystone, private

Bluetooth TX Power

-20 to +4 dBm TX power, configurable in 4 dBm steps

Bluetooth Sensitivity

-96dBm

GNSS

GNSS

BDS/GPS/GLONASS

GNSS Position Accuracy

<2.5m CEP

Cold Start Duration

30s to 60s

AGPS

Support

Functions

Adjustable Position Report Interval

5s x n (1 to 65536)

Heartbeat Report Interval

30s x n (1 to 65536)

GNSS Position Report Interval

5s xn (1 to 65536)

FOTA over Bluetooth

Support

Temperature Report

Optional, please advise Lansitec upon ordering

Temperature Sensor Range

-40°C~+85°C

Temperature Accuracy

Chamber temperature in the beacon, ±5°C

Temperature Resolution

0.25°C

Cellular-based Positioning

Support

Configurable Bluetooth data filter and payload report

Filter any data bytes in a Bluetooth payload and report any via Cat-1

Bluetooth data compression

Support

NB-IoT & LTE-M
Asset Management Tracker

The Asset Management Tracker pairs multi-constellation GNSS with BLE 5.0 scanning and global NB-IoT / LTE-M back-haul to give assets a single tag for seamless indoor & outdoor visibility. Dual 4 000 mAh Li-SOCl2 cells deliver years of autonomy in a sealed IP68 housing, while onboard motion, shock, door and barometric sensors turn raw location into rich utilisation intelligence—perfect for containers, equipment, and mission-critical transit cases.

NB-IoT Asset Management Tracker

What Makes it Unique

  • Triple-Tech Positioning GNSS (< 2.5 m CEP50), BLE (3 m RSSI) and optional Wi-Fi fingerprinting.
  • Ultra-Long Life 8 000 mAh battery ≈ 30 000 GNSS or 500 000 BLE reports; 15 µA standby.
  • Rugged IP68 Shell −45 °C … +85 °C, 0–95 % RH, PC/ABS with waterproof PCB coating.
  • Smart Motion Suite 6-axis IMU for movement duration, vibration, shock & tamper alerts.
  • Door/Seal Sensor Magnetic switch flags unauthorised container or case openings.
  • Edge Payload Filter & Compression Byte-level rules minimise cellular data costs.
  • Autonomous & Cached Modes Offline logging with later burst upload when signal returns.
  • NFC & FOTA via BLE Quick field provisioning and firmware upgrades without unsealing.

NB-IoT Asset Management Tracker

What it Could be Used for

Factory Machine Status Monitoring LoRaWAN Container Tracker

Heavy-Machinery Utilisation

Correlate vibration hours and shock events to schedule maintenance and prevent costly downtime.

High Precision Pallet Positioning at CentralLink Logistics Warehouse

Smart-Warehouse Pallet Pools

BLE-tag pallets and use trackers on forklifts to map flow, cut search time and optimise layout.

Pipeline Flow Control lorawan valve position sensor

Pipeline Inspection Kits

Follow specialised NDT tools across rugged oil-&-gas sites; barometric altitude pinpoints underground or elevated sections.

Enhancing Container Tracking Efficiency with Lansitec LoRaWAN NB-IoT Asset Management Tracker LANSITEC TECHNOLOGY CO. LTD

Container Tracking

Real-time geofence & door-open alerts secure intermodal sea-/rail containers across ports and depots.

Technical Details

Product Specifications

Mechanics

Dimension

78*79*35mm with the mounting lugs; 78*66*35mm without the mounting lugs

Weight

133g

Ingress Protection

IP68

Housing Material

PC and ABS

PCB Coating

Water proof coating

Operating Temperature

-45°C ~ +85°C

Storage Temperature

-60°C ~ +90°C

Operating Humidity

0% ~ 95% (non-condensing)

Power

Battery

Li/SOCl2 4000mAh x 2

GNSS (report interval >10minutes)

Approx. 30,000 times

Bluetooth positioning

Approx. 500,000 times

Standby Current

15μA

Max. Current

145mA

Connectivity

Protocol

MQTT, HTTP

LoRaWAN

Optional

LTE-FDD

Band

Data Rate (Peak)

LTE-M

B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/ B20/B25/B26/B27/B28/B66/B85

588 (DL) 1119 (UL)

NB-IoT

B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/ B20/B25/B28/B66/B71/B85

Cat NB2: 127 (DL) 158.5 (UL)
Cat NB1: Max. 32 (DL) Max. 70 (UL)

Wifi

Optional, 2.4GHz, positioning only

N/A

SIM Card

Nano and eSIM

N/A

Bluetooth

Bluetooth Protocol

5.0, iBeacon, Eddystone, private

Bluetooth TX Power

-20 to +4 dBm TX power, configurable in 4 dBm steps

Bluetooth Sensitivity

-96dBm

Bluetooth Positioning Accuracy

3m

GNSS

GNSS

BDS/GPS/GLONASS/GALILEO/QZSS

GNSS Position Accuracy

<2.5m CEP

Cold Start Duration

30~120s

AGPS

Support

Functions

Adjustable Position Report Interval

5s x n (1 to 65536)

Heartbeat Report Interval

30s x n (1 to 65536)

GNSS Position Report Interval

5s x n (1 to 65536)

FOTA over Bluetooth

Support

Movement Duration

Support

Fall Detection

Support

G-sensor

Support

Barometer

Support

Battery Level Report

Support

Proximity Detection

Support

Switch

Button x 2

NFC Tag (optional)

1KB

Configurable Bluetooth data filter and payload report

Filter any data bytes in a Bluetooth payload and report any via NB-IoT and LTE-M

Bluetooth data compression

Support

NB-IoT & LTE-M

Indoor Bluetooth Gateway

Purpose-built for indoor deployments, the Lansitec Indoor Bluetooth Gateway marries long-range BLE 5.0 scanning with global NB-IoT / LTE-M back-haul to stream beacon and sensor data straight to the cloud. The compact 120 × 120 × 31 mm unit mounts on any wall or ceiling, draws 5 V / 1 A power, and carries a 600 mAh backup battery for ≈ 10 h of outage resilience. With TLS 1.2 security, geo-fencing and edge payload filtering, it is a plug-and-play cornerstone for indoor RTLS, safety and analytics systems.

Features

What Makes it Unique

  • Dual NB-IoT / LTE-M Back-haul Worldwide LPWAN bands with MQTT / HTTPS endpoints.
  • BLE 5.0 Long-Range Captures iBeacon, Eddystone & private sensor frames up to 120 m LOS.
  • High-Throughput Engine Ingests 200 beacon msgs / s and bundles 15 per cellular packet.
  • 3m Indoor Accuracy RSSI trilateration plus configurable geo-fence alerts.
  • TLS 1.2 Secure Pipe End-to-end encryption with AES-128 payload protection.
  • Smart Edge Filtering Byte-level filters & compression cut airtime and fees.
  • Battery + Mains Power 600 mAh Li-ion gives ~10 h backup during outages.
  • FOTA & Telemetry Wireless firmware updates and status LEDs for zero-touch maintenance.

Use Cases

Where it Could be Used for

Hospital Asset and Staff Tracking with Lansitec

Hospital Asset Tracking

Locate imaging carts, infusion pumps and surgical kits in seconds to boost utilisation and prevent loss.

Group of People Gathering Event Management Indoor Bluetooth Gateway

Public Space Management

Monitor visitor flow and environmental sensors in malls, stations or arenas to optimise crowd comfort and safety.

lorawan_campus_tracking

Smart Campus Analytics

Correlate student traffic, library occupancy and indoor air quality to enhance campus services and resource planning.

Visitor Experience at Tourist Attractions with B004 Bluetooth Beacon

Museum Exhibit Monitoring

Protect artifacts with vibration / temperature beacons and receive instant cellular alerts on abnormal handling.

Technical Details

Product Specifications

Mechanics

Dimension

120*120*31mm

Weight

175g

Operating Temperature

-40°C ~ +85°C

Storage Temperature

-45°C ~ +85°C

Operating Humidity

5% ~ 95% (non-condensing)

Power

Battery

Li-ion rechargeable battery, 600mAh

Power Supply Mode

5V/1A

Status LED

Support

Connect to Power Source

Yes

Charge Jack

Micro USB

Connectivity

Protocol

MQTT, HTTP

LoRaWAN

Optional

LTE-FDD

Band

Data Rate (Peak)

LTE-M

B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/ B20/B25/B26/B27/B28/B66/B85

588 (DL) 1119 (UL)

NB-IoT

B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/ B20/B25/B28/B66/B71/B85

Cat NB2: 127 (DL) 158.5 (UL)
Cat NB1: Max. 32 (DL) Max. 70 (UL)

Wifi

Optional, 2.4GHz, positioning only

N/A

SIM Card

Nano and eSIM

N/A

Bluetooth

Bluetooth Protocol

5.0, iBeacon, Eddystone, private

Bluetooth TX Power

-20 to +4 dBm TX power, configurable in 4 dBm steps

Bluetooth Sensitivity

-96dBm

Bluetooth Positioning Accuracy

3m

Functions

Configurable Bluetooth data filter and payload report

Filter any data bytes in a Bluetooth payload and report any via NB-IoT and LTE-M

Adjustable Position Report Interval

5s x n (1 to 65536)

Heartbeat Report Interval

30s x n (1 to 65536)

FOTA over Bluetooth

Support

Geo-fence

Support

Transmission Capacity

200 beacon messages can be received within 1s, 15 (defualt) beacon messages can be sent in one package

Encryption

TLS1.2

Bluetooth data compression

Support

Certification

CE, FCC, RCM

LoRaWAN

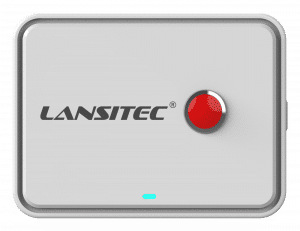

Micro Bluetooth Gateway

Boost indoor asset visibility with Lansitec’s Micro Bluetooth Gateway, a palm-sized LoRaWAN/BLE bridge that silently harvests beacon and sensor data and pushes it to the cloud in near-real time. Its dual 4000 mAh Li-SoCl₂ cells deliver 6-plus years of maintenance-free uptime, while the rugged IP68 enclosure shrugs off dust, water, and extreme temperatures – giving you dependable coverage anywhere assets move.

Features

What Makes it Unique

  • LoRa + BLE Dual-Mode Bridge Seamlessly funnels any BLE beacon or sensor data to public or private LoRaWAN back-haul.
  • Ultra-Long Autonomy 8000mAh battery pack sustains ≥ 6 years when scanning 60s/h.
  • 3m Indoor Accuracy RSSI-driven positioning plus configurable geo-fences for zone alerts.
  • Rugged IP68 Build PC/ABS housing, −20°C ~ +70°C, 0~95% RH (non-cond).
  • Smart Payload Filter On-device byte-level filtering & compression cuts airtime costs.
  • High Tag Capacity Tracks > 500 beacons; TDMA sync handles 105 packets per uplink.
  • FOTA-Ready Bluetooth firmware upgrades without site visits.
  • Global Band Support EU868, US915, AS923 and more, 22 dBm (30 dBm optional) TX power.

Use Cases

Where it Could be Used for

Hospital Asset Tracking with Bluetooth Beacons

Mobile Medical Assets

Locate imaging carts, pumps, or drug trolleys in seconds to boost utilisation and cut losses.

Pharmaceutical Inventory

Pharmaceutical Inventory

Scan BLE-tagged drug bins to spot soon-to-expire stock and automate replenishment.

Indoor Asset Tracking Solution

Fleet & Yard Management

Live yard positioning of trailers and service vehicles for faster dispatch.

Helmet Sensor for Factory Personnel Tracking

Personnel Safety Zones

Geo-fence alerts keep staff out of restricted or hazardous areas.

Warehouse Shelf LoRaWAN Micro Bluetooth Gateway LANSITEC TECHNOLOGY CO. LTD

Smart Warehousing

Automate pallet and forklift tracking to accelerate pick-and-pack workflows.

Group of People Gathering Event Management Indoor Bluetooth Gateway

Event & Exhibition Control

Temporary deployment guides visitor flow and protects rental equipment.

Technical Details

Product Specifications

Mechanics

Dimension

78*79*35mm with the mounting lugs; 78*66*35mm without the mounting lugs

Operating Temperature

-20°C ~ +70°C

Storage Temperature

-10°C ~ +30°C

Operating Humidity

0% ~ 95% (non-condensing)

Weight

133g

Ingress Protection

IP68

Housing Material

PC and ABS

PCB Coating

Water proof coating

Power

Battery

Li-SoCl2 Battery, 4000mAh×2

Battery Life

Standby current: 25μA Total Uplink Reports: 67000 65 months @ 17dBm, SF7, Bluetooth receiving duration is 60s and LoRaWAN report interval is one hour

Connectivity

Bluetooth Protocol

Bluetooth 5.0

LoRaWAN Protocol

LoRaWAN 1.0.2B

LoRa Frequency

US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470

LoRa Maximum RF Power

22dBm

High TX Power Option

Max. 30dBm and -150dBm receiving sensitivity

LoRa Sensitivity

-139dBm @SF12, BW125kHz, 434MHz/470MHz
-137dBm @SF12, BW125kHz, 868MHz/915MHz

Access Quantity

>500 in one LoRaWAN gateway

Data Rate (bps)

300~30K

Functions

Encryption

AES128

Positioning Precision

3m

Configurable Bluetooth data filter and payload report

Filter any data bytes in a Bluetooth payload and report any via LoRaWAN

Switch

Mechanical

Adjustable Position Report Interval

5s x n (1 to 65536)

Heartbeat Report Interval

30s x n (1 to 255)

FOTA over Bluetooth

Support

Switch

Mechanical

Max. Beacons Supported

105*, maximum of 15 beacon messages at one single LoRaWAN package @SF9
* Please reach out to us if more are needed.

Multiple Bluetooth gateway LoRaWAN report synchronization

Sync the clock and LoRaWAN report

TDMA

Support

Bluetooth Data Compression

Support

CAT-1 Bluetooth Macro Tracker

Cat-1 Macro Tracker

Lansitec Cat-1 Macro Tracker is designed based on GNSS, Bluetooth and Cat-1 for indoor and outdoor tracking. It is powered by 38,000mAh industrial battery with a standby time as long as 7 years. Users can adjust settings such as the GNSS report duration, heartbeat message period, beacon report interval, and asset receiving duration.

Macro Bluetooth Gateway 5 Cat-1 Macro Tracker LANSITEC TECHNOLOGY CO. LTD

Product Specifications

Bluetooth

Bluetooth Protocol

5.0, iBeacon, Eddystone, private

Bluetooth TX Power

-20 to +4 dBm TX power, configurable in 4 dB steps

Bluetooth Sensitivity

-96dBm

Cat- 1

Regions

North America

Europe / Africa

China / India

Latin America

FDD

B2/B4/B5/B12/B13/ B66

B1/B3/B5/B7/B8/B20

B1/B3/B5/B8

B2/B3/B4/B5/B7/B8/B28/B66

LTE-M

N/A

N/A

B34/B38/B39/B40/ B41

N/A

SIM Card

Nano or eSIM

Protocol

MQTT, HTTP(S), TCP, UDP

GNSS

GNSS Band

GPS, BDS, GALILEO, GLONASS, QZSS, SBAS (WAAS, EGNOS, GAGAN, MSAS)

GNSS Position Accuracy

<2.5m CEP

Cold Start Duration

30s to 60s

AGPS

Support

Mechanics

Dimension

160*160*55mm

Operating Temperature

-45°C ~ +85°C

Storage Temperature

-60°C ~ +90°C

Operating Humidity

0% ~ 95% (non-condensing)

Weight

530g

Ingress Protection

IP66

Battery Life

Standby Current

25μA

Switch

Support

Status LED

Support

Battery

Li-SoCl2 Battery, 2×19000mAh (optional: 4×19000mAh)

Function

Adjustable Position Report Interval

5s x n (1 to 65536)

Heartbeat Report Interval

30s x n (1 to 65536)

GNSS Position Report Interval

5s xn (1 to 65536)

Adjustable Bluetooth Payload to be reported

Support

FOTA over Bluetooth

Support

Temperature Report

Optional, please advise Lansitec upon ordering

Temperature Sensor Range

-40°C~+85°C

Temperature Accuracy

Chamber temperature in the beacon, ±5°C

Temperature Resolution

0.25°C

Cat 1 Patients and Employees Badge Tracker

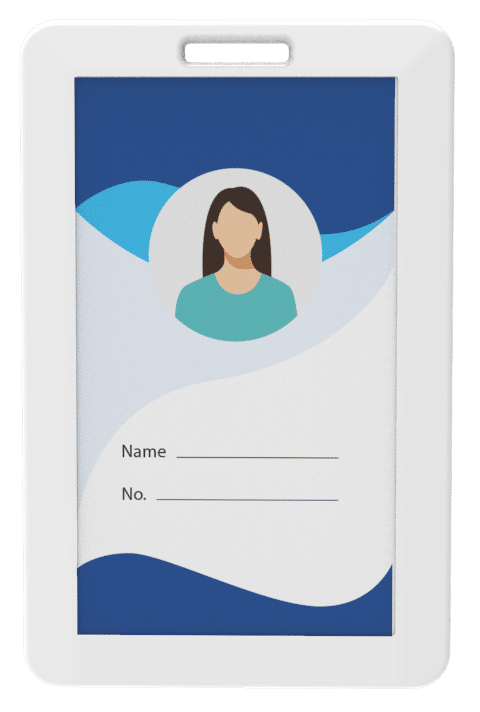

Cat-1 Badge Tracker

Lansitec Cat-1 Badge Tracker is designed based on GNSS, Bluetooth 5.0, and Cat-1 technology. It supports indoor and outdoor tracking. The badge is mainly used for personnel and asset management. The build-in 3-axis accelerator could be used for determining the motion status of the terminal to help save battery life and enhance user experience.

Badge Tracker with Lanyard

Product Specifications

Bluetooth

Bluetooth Protocol

5.0, iBeacon, Eddystone, private

Bluetooth TX Power

-20 to +4 dBm TX power, configurable in 4 dB steps

Bluetooth Sensitivity

-96dBm

Cat- 1

Regions

North America

Europe / Africa

China / India

Latin America

FDD

B2/B4/B5/B12/B13/ B66

B1/B3/B5/B7/B8/B20

B1/B3/B5/B8

B2/B3/B4/B5/B7/B8/B28/B66

LTE-M

N/A

N/A

B34/B38/B39/B40/ B41

N/A

SIM Card

Nano or eSIM

Protocol

MQTT, HTTP(S), TCP, UDP

GNSS

GNSS Band

GPS, BDS, GALILEO, GLONASS, QZSS, SBAS (WAAS, EGNOS, GAGAN, MSAS)

GNSS Position Accuracy

<2.5m CEP

Cold Start Duration

30s to 60s

AGPS

Support

Mechanics

Dimension

97*62*7mm

Operating Temperature

-10°C~+65°C

Storage Temperature

-20°C~+80°C

Operating Humidity

5% ~ 95% (non-condensing)

Housing Material

ABS

Weight

35g

Battery Life

Battery

Li-ion rechargeable battery, 600mAh

GNSS (report interval >10minutes)

Approx. 600 times

Bluetooth Positioning

Approx. 2000 times

Standby Current

25μA

Max. Current

200mA

Function

Adjustable Position Report Interval

5s x n (1 to 65536)

Heartbeat Report Interval

30s x n (1 to 65536)

Switch

Magnetic Reed

Temperature Report

Optional, please advise Lansitec upon ordering

Temperature Sensor Range

-40°C~+85°C

Temperature Accuracy

Chamber temperature in the beacon, ±5

Temperature Resolution

0.25°

Tamper Detection

Support

FOTA over Bluetooth

Support

Movement Duration

Support

Door Open/Close Sensing

Support

Vibration Shock Detection

Support

Asset Management with Bluetooth Tags

Support (report nearby Bluetooth tags)

Offline Cache Position (40 Positions)

Support

Magnetic Power Switch Enable/Disable

Support

3D Accelerometer

Support

NFC Tag

1KB

LTE Cat-1
Container Tracker

Track high-value containers, pallets, or equipment anywhere in the world with the Lansitec Cat-1 Container Tracker. Powered by dual Li/SOCl₂ batteries for up to five years of maintenance-free service (at 30-minute reporting intervals), this device seamlessly combines GNSS (<2.5 m accuracy) for precise positioning with Cat-1 cellular connectivity to deliver real-time data—even in harsh climates. Its IP68 enclosure defends against dust and water, while built-in features like tamper detection, door open/close sensing, and vibration shock alerts help protect assets from unauthorized movement or damage. Optional Bluetooth tags expand your monitoring capabilities, letting you track secondary items packed inside cargo containers or transit cases. Whether you need to secure machines on remote worksites or ensure that perishable goods arrive intact, the Cat-1 Container Tracker keeps you informed and in control every step of the way.

Container Tracker (Cat-1) Features

What Makes it Unique

  • Global Cat-1 Coverage Operates on various frequency bands (North America, Europe/Africa, China/India, Latin America), ensuring continuous connectivity worldwide.
  • 5-Year Battery Life Powered by dual Li/SOCl₂ (2×4000 mAh) batteries, delivering up to five years of service at 30-minute report intervals.
  • Indoor & Outdoor Positioning GNSS for outdoor precision (<2.5 m CEP) and optional Bluetooth positioning for indoor or transition zones.
  • Rugged IP68 Enclosure Protects against dust, water, and extreme temperatures (-45 °C to +85 °C), suitable for harsh industrial or maritime conditions.
  • Advanced Security & Sensing Tamper detection, vibration shock monitoring, and door open/close sensing help prevent unauthorized movement or damage.
  • Optional Bluetooth Tags Track secondary assets stored inside containers or pallets by scanning nearby BLE beacons, all reported through Cat-1.
  • Offline Cache & FOTA Stores up to 40 positions if network coverage is lost, and supports firmware-over-the-air updates for minimal manual intervention.

Container Tracker (Cat-1) Use Cases

What it Could be Used for

sea container tracking

Container Tracking

Monitor large fleets of shipping containers. Receive real-time alarms if a device is removed, and keep an eye on location, temperature, or door status to prevent cargo theft or spoilage.

Macine or Equipment Rentla LoRaWAN Container Tracker

Machine Status

Measure vibration, usage duration, and door access on remote machinery—such as construction vehicles or generators—to optimize maintenance scheduling and reduce downtime.

Transit Case LoRaWAN Container Tracker

Transit Case

Keep tabs on valuable equipment or sensitive materials stored in transit cases, even when shipped across multiple facilities. Bluetooth tag compatibility allows you to see precisely what’s inside each box.

Macro Proximity Sensor for Industrial Applications

Harsh Environment Sites

Deploy in mines, offshore drilling rigs, or exposed outdoor yards where equipment is frequently moved. The rugged IP68 design and extended battery life minimize servicing needs in remote locations.

Warehouse Shelf Cat-1 Container Tracker LANSITEC TECHNOLOGY CO. LTD

Remote Inventory

Track critical resources in remote warehouses or distribution centers. With Cat-1 coverage and offline caching, items remain visible and accounted for, even if a network outage occurs.

Technical Details

Product Specifications

Mechanics

Dimension

198*28*33mm

Housing Materials

PC and ABS

Operating Temperature

-20°C ~ +70°C

Storage Temperature

-10°C ~ +30°C

Operating Humidity

0% ~ 95% (non-condensing)

Weight

130g

PCB Coating

Water proof coating

Ingress Protection

IP68

Power

Battery

Li/SOCl2 2x4000mAh

GNSS (report interval>10minutes)

Approx. 11,000 times

Bluetooth positioning

Approx. 24,000 times

Standby Current

25μA

Max. Current

500mA

Cat-1

Regions

North America

Europe / Africa

China / India

Latin America

FFD

B2/B4/B5/B12/B13/ B66

B1/B3/B5/B7/B8/B20

B1/B3/B5/B8

B2/B3/B4/B5/B7/B8/B28/ B66

TTD

N/A

N/A

B34/B38/B39/B40/ B41

N/A

SIM Card

Nano or eSIM

Protocol

MQTT, HTTP(S), TCP, UDP

Bluetooth

Bluetooth Protocol

5.0, iBeacon, Eddystone, private

Bluetooth TX Power

-20 to +4 dBm TX power, configurable in 4 dBm steps

Bluetooth Sensitivity

-96dBm

GNSS

GNSS

BDS/GPS/GLONASS

GNSS Position Accuracy

<2.5m CEP

Cold Start Duration

30s to 60s

AGPS

Support

Functions

Adjustable Position Report Interval

5s x n (1 to 65536)

Heartbeat Report Interval

30s x n (1 to 65536)

Switch

Magnetic Reed

Temperature Report

Optional, please advise Lansitec upon ordering

Temperature Sensor Range

-40°C~+85°C

Temperature Accuracy

Chamber temperature in the beacon, ±5°C

Temperature Resolution

0.25°C

Tamper Detection

Support

FOTA over Bluetooth

Support

Movement Duration

Support

Door Open/Close Sensing

Support

Vibration Shock Detection

Support

Asset Management with Bluetooth Tags

Support (report nearby Bluetooth tags)

Offline Cache Position (40 Positions)

Support

Magnetic Power Switch Enable/Disable

Support

3D Accelerometer

Support

NFC Tag

1KB

LTE Cat-1
Compact Bluetooth Gateway

Take your remote asset monitoring and environmental sensing to the next level with the Lansitec Macro Bluetooth Gateway (Cat-1). Engineered around a high-capacity 38,000mAh lithium battery, it delivers an impressive five years (or more) of untethered performance—even in extreme temperatures ranging from -40°C to +70°C. With robust Cat-1 connectivity, the gateway seamlessly relays BLE beacon data (iBeacon, Eddystone, or private protocols) to your cloud platform, enabling real-time insights without relying on Wi-Fi or wired infrastructure. Its IP66-rated enclosure ensures consistent operation under harsh or dusty conditions, while adjustable scanning and reporting intervals let you balance power efficiency and data granularity. Whether you’re safeguarding critical hospital equipment, optimizing fleet routes, or analyzing productivity in large warehouses, the Macro Bluetooth Gateway provides a low-maintenance, long-lasting solution that helps you reduce downtime, cut costs, and maintain total visibility over your operations.

Compact Bluetooth Gateway (Cat-1) Features

What Makes it Unique

  • Portable Power Works across multiple frequency bands for seamless connectivity woraA 600 mAh Li-ion battery delivers 10 hours of operation when no external power is available, recharging via a standard 5 V/1 A Micro USB port.dwide.
  • Global Cat-1 Connectivity Multiple frequency bands (B1/B3/B5/B7/B8/B20, etc.) for worldwide coverage.
  • Customizable BLE Payload Filter specific bytes in BLE sensor data to reduce bandwidth usage and optimize cloud reports.
  • Adaptable Report Intervals Balance real-time data needs with power efficiency by adjusting data and heartbeat intervals.
  • Easy Setup Compact, 7 mm-thick design slips into tight spaces, with optional mounting hardware for flexible installation.
  • FOTA via Bluetooth Update firmware wirelessly, ensuring minimal downtime and simpler on-site maintenance.

Compact Bluetooth Gateway (Cat-1) Use Cases

What it Could be Used for

Hospital Asset Tracking with Bluetooth Beacons

Hospital Asset Tracking

Deploy in labs or emergency pop-up clinics to track mobile medical equipment. The device’s portable power eliminates the need for dedicated power lines, ensuring uninterrupted monitoring of critical resources.

Lansitec B Mobile Solution for Car and Key Tracking in Dealerships 2 Cat-1 Compact Bluetooth Gateway LANSITEC TECHNOLOGY CO. LTD

Vehicle Tracking

Temporarily install the gateway in rental fleets or company vehicles to gather telemetry (e.g., mileage, battery status), then upload it through Cat-1 to central systems, even when on the move or in remote locations.

Retail & Event Engagement with Bluetooth Beacons

Pop-Up Retail or Events

Monitor foot traffic and customer interactions at trade shows, markets, or fairs. The gateway’s 10-hour internal battery bridges gaps in power supply and simplifies fast, temporary deployments.

Retail Inventory Compact Bluetooth Gateway

Inventory Scanning Zones

Create semi-permanent scanning stations in warehouses or distribution centers. When power outlets are scarce, rely on the gateway’s onboard battery to capture BLE data from pallets or containers before uploading to management systems.

Hospital Asset Tracking with Bluetooth Beacons

Rapid Field Diagnostics

Attach the gateway to field diagnostic kits or portable test labs. Track usage hours and sensor inputs, then share results with cloud-based medical or analytical platforms for quick analysis. Ideal for emergency response units or traveling technicians.

Technical Details

Product Specifications

Mechanics

Dimension

97*62*7mm

Housing Materials

ABS

Operating Temperature

-10°C ~ +65°C

Storage Temperature

-20°C ~ +80°C

Operating Humidity

5% ~ 95% (non-condensing)

Weight

35g

Power

Battery

Li-ion rechargeable battery 600mAh

Battery Life

1 month @ 10s Bluetooth receiving duration and 60 report interval

Standby Current

25μA

Max. Current

500mA

Power Supply Mode

5V/1A

Charge Jack

Micro USB

Cat-1

Regions

North America

Europe / Africa

China / India

Latin America

FFD

B2/B4/B5/B12/B13/ B66

B1/B3/B5/B7/B8/B20

B1/B3/B5/B8

B2/B3/B4/B5/B7/B8/B28/ B66

TTD

N/A

N/A

B34/B38/B39/B40/ B41

N/A

SIM Card

Nano or eSIM

Protocol

MQTT, HTTP(S), TCP, UDP

Bluetooth

Bluetooth Protocol

5.0, iBeacon, Eddystone, private

Bluetooth TX Power

-20 to +4 dBm TX power, configurable in 4 dBm steps

Bluetooth Sensitivity

-96dBm

Bluetooth Distance

150m sight distance

Functions

Adjustable Position Report Interval

5s x n (1 to 65536)

Heartbeat Report Interval

30s x n (1 to 65536)

Adjustable Bluetooth Payload Report

Filter any data bytes in a Bluetooth payload and report any via Cat-1

FOTA over Bluetooth

Support

Battery Level Report

Support

Customized data filter and data report

Support

Switch

Mechanical

Positioning Precision

3m

Encryption

AES128

Certification

CE, FCC

LTE Cat-1
Macro Bluetooth Gateway

The Lansitec Macro Bluetooth Gateway (Cat-1) offers a uniquely robust power solution with a 38,000 mAh low-discharge battery, enabling continuous operation for 5+ years. It processes and relays Bluetooth (BLE) data — supporting iBeacon, Eddystone, and private protocols — to a server via Cat-1 networks worldwide. Encased in an IP66-rated enclosure, this gateway thrives in extreme temperatures (-40 °C to +70 °C) and demanding outdoor or industrial settings, delivering a reliable, zero-maintenance approach to long-term asset and environmental monitoring.

Macro Bluetooth Gateway (Cat-1) Features

What Makes it Unique

  • 38,000 mAh Battery Provides over five years of operation, drastically reducing maintenance visits for remote or hard-to-access installations.
  • Global Cat-1 Coverage Supports various regions (North America, Europe/Africa, China/India, Latin America) for seamless data transfer.
  • Adjustable BLE Payload Configure packet filtering and scanning intervals to optimize bandwidth and power usage.
  • IP66 Durability Resistant to water, dust, and extreme temperatures, ensuring reliable performance in harsh environments.
  • Wide Protocol Compatibility Works with iBeacon, Eddystone, private BLE formats, plus advanced encryption (AES128) for secure data handling.
  • FOTA over Bluetooth Quickly update firmware without opening the device or disconnecting power, saving time and labor costs.

Macro Bluetooth Gateway (Cat-1) Use Cases

What it Could be Used for

Hospital Asset Tracking with Bluetooth Beacons

Hospital Asset Tracking

Leverage the macro battery capacity to track medical equipment and monitor drug inventories for years without manual recharging. Real-time data minimizes losses and ensures timely patient care.

Lansitec B Mobile Solution for Car and Key Tracking in Dealerships 2 Cat-1 Macro Bluetooth Gateway LANSITEC TECHNOLOGY CO. LTD

Vehicle Tracking

Deploy on transport fleets operating in remote or international routes. BLE sensors measure key parameters (fuel levels, tire pressure), while Cat-1 connectivity enables broad coverage for location and status updates.

Helmet Sensor for Factory Personnel Tracking

Factory Personnel Tracking

Monitor forklifts, pallets, or sensitive machinery in large facilities. The gateway’s extended battery life and IP66 rating eliminate the need for external power or frequent checks, lowering overhead.

Mining & Remote Site Operations

Outdoor Mining Operations

Place the gateway on mining equipment to track usage hours, vibration metrics, and location. The robust enclosure and long-lasting battery reduce downtime in rugged, power-scarce environments.

Public Spaces Outdoor Event Socket Sync Bluetooth Gateway

Public Infrastructure

Install on street assets (e.g., bus stops, utility poles) for monitoring local conditions or usage. Cat-1 coverage delivers consistent data uplinks, even in rural or municipal areas lacking stable internet connections.

Technical Details

Product Specifications

Mechanics

Dimension

160*160*55mm

Housing Materials

Anti-UV PC-ABS

Operating Temperature

-40°C ~ +70°C

Storage Temperature

-45°C ~ +85°C

Operating Humidity

0% ~ 95% (non-condensing)

Weight

530g

PCB Coating

Water proof coating

Ingress Protection

IP66

Power

Battery

Li-SoCl2 19000mAhx2, optional: 19000mAhx4/19000mAhx6

Battery Life

5 years @ 5s Bluetooth receiving duration and 240 report interval

Standby Current

25μA

Max. Current

500mA

Cat-1

Regions

North America

Europe / Africa

China / India

Latin America

FFD

B2/B4/B5/B12/B13/ B66

B1/B3/B5/B7/B8/B20

B1/B3/B5/B8

B2/B3/B4/B5/B7/B8/B28/ B66

TTD

N/A

N/A

B34/B38/B39/B40/ B41

N/A

SIM Card

Nano or eSIM

Protocol

MQTT, HTTP(S), TCP, UDP

Bluetooth

Bluetooth Protocol

5.0, iBeacon, Eddystone, private

Bluetooth TX Power

-20 to +4 dBm TX power, configurable in 4 dBm steps

Bluetooth Sensitivity

-96dBm

Bluetooth Distance

150m sight distance

Functions

Adjustable Position Report Interval

5s x n (1 to 65536)

Heartbeat Report Interval

30s x n (1 to 65536)

Adjustable Bluetooth Payload Report

Filter any data bytes in a Bluetooth payload and report any via Cat-1

FOTA over Bluetooth

Support

Battery Level Report

Support

Customized data filter and data report

Support

Switch

Mechanical

Positioning Precision

3m

Encryption

AES128

Certification

CE, FCC

LTE Cat-1
Solar Bluetooth Gateway

The Lansitec Solar Bluetooth Gateway (Cat-1) scans and restructures data from nearby BLE sensors, beacons, and controllers, transmitting it to the cloud through a global LTE Cat-1 network. Equipped with a 3W solar panel and a 5300 mAh rechargeable battery, it operates maintenance-free in extreme environments. The device’s IP66-rated enclosure, adjustable reporting intervals, and support for multiple Bluetooth protocols (iBeacon, Eddystone, private) make it ideal for monitoring assets, vehicles, or personnel over wide areas.

Solar Bluetooth Gateway (Cat-1) Features

What Makes it Unique

  • Cat-1 Global Coverage Works across multiple frequency bands for seamless connectivity worldwide.
  • Solar-Powered & Long Battery Life A 3 W solar panel and 5300 mAh battery ensure reliability, even under harsh conditions or low sunlight.
  • iBeacon & Eddystone Compatibility Scan and forward BLE payloads, with customizable filtering to optimize data usage.
  • IP66 Enclosure Rugged, dustproof, and water-resistant design.
  • Adjustable Report Intervals Configure Bluetooth scanning rates and data uplinks to balance power efficiency and real-time updates.
  • FOTA over Bluetooth Simplify firmware updates without removing or disassembling the gateway.

Solar Bluetooth Gateway (Cat-1) Use Cases

What it Could be Used for

Hospital Asset Tracking with Bluetooth Beacons

Hospital Asset Tracking

Collect and transmit location or status updates from BLE-enabled medical devices. Instantly verify the availability of critical equipment like CT machines or monitor drug inventory in real time.

Lansitec B Mobile Solution for Car and Key Tracking in Dealerships 2 Cat-1 Solar Bluetooth Gateway LANSITEC TECHNOLOGY CO. LTD

Vehicle Tracking

Deploy on vehicles to gather engine diagnostics, mileage, and usage data from BLE sensors. Leverage Cat-1 connectivity for wide coverage, reducing fleet operating costs.

Helmet Sensor for Factory Personnel Tracking

Factory Personnel Tracking

Assign BLE badges to workers in large factories or distribution centers. The gateway’s real-time scanning and data forwarding improve safety, resource allocation, and productivity.

Agricultural Asset Monitoring

Agricultural Equipment

Monitor farm machinery parked in remote fields. The solar-powered design eliminates frequent battery swaps, ensuring continuous oversight of tractors, harvesters, or irrigation devices.

Construction Site

Construction Site Inventory

Place gateways at construction sites to track material deliveries and equipment usage through BLE tags. Prevent losses, manage tools efficiently, and streamline project timelines by receiving immediate alerts for unauthorized relocations.

Technical Details

Product Specifications

Mechanics

Dimension

160*160*55mm

Housing Materials

Anti-UV PC-ABS

Operating Temperature

-40°C ~ +70°C

Charging Temperature

-20°C ~ +60°C

Storage Temperature

-45°C ~ +85°C

Operating Humidity

0% ~ 95% (non-condensing)

Weight

460g

PCB Coating

Water proof coating

Ingress Protection

IP66

Power

Battery

Li-ion rechargeable battery 5300mAh

Battery Life

1 month @ 10s Bluetooth receiving duration and 60 report interval

Bluetooth positioning

Approx. 150,000 times

Solar Panel

3W

Standby Current

25μA

Max. Current

500mA

Max. Charging Current

500mA

Charging Rate

Max. 1500mAh each day

Cat-1

Regions

North America

Europe / Africa

China / India

Latin America

FFD

B2/B4/B5/B12/B13/ B66

B1/B3/B5/B7/B8/B20

B1/B3/B5/B8

B2/B3/B4/B5/B7/B8/B28/ B66

TTD

N/A

N/A

B34/B38/B39/B40/ B41

N/A

SIM Card

Nano or eSIM

Protocol

MQTT, HTTP(S), TCP, UDP

Bluetooth

Bluetooth Protocol

5.0, iBeacon, Eddystone, private

Bluetooth TX Power

-20 to +4 dBm TX power, configurable in 4 dBm steps

Bluetooth Sensitivity

-96dBm

Bluetooth Distance

150m sight distance

Functions

Adjustable Position Report Interval

5s x n (1 to 65536)

Heartbeat Report Interval

30s x n (1 to 65536)

Adjustable Bluetooth Payload Report

Filter any data bytes in a Bluetooth payload and report any via Cat-1

FOTA over Bluetooth

Support

Battery Level Report

Support

Customized data filter and data report

Support

Switch

Mechanical

Positioning Precision

3m

Encryption

AES128

Certification

CE, FCC

NB-IoT & LTE-M
Macro Bluetooth Gateway

The Lansitec Macro Bluetooth Gateway (NB-IoT/LTE-M) gathers data from nearby BLE beacons, sensors, or controllers, then forwards it to a remote server via cellular networks. Equipped with a 38,000mAh (low-discharge) battery, it can operate for five years or more, even in challenging environments. With IP66 protection, an adjustable reporting interval, and broad BLE protocol support (iBeacon, Eddystone, private), this gateway delivers a versatile, long-term solution for various asset tracking and monitoring applications.

NB-IoT/LTE-M Macro Bluetooth Gateway Features

What Makes it Unique

  • Long-Life Battery A 38,000mAh Li-SoCl2 power source can deliver 5+ years of operation at default settings (5s BLE scanning, 240s cellular reporting).
  • Wide Cellular Coverage NB-IoT/LTE-M worldwide bands ensure data transmission even in remote or low-signal areas.
  • Multiple BLE Protocols Works with iBeacon, Eddystone, and proprietary formats for broad sensor compatibility.
  • Rugged IP66 Enclosure Suitable for outdoor or industrial environments (-45°C to +85°C).
  • Configurable Data & Interval Users can adjust Bluetooth payload filters and upload frequency to balance power usage and data needs.
  • FOTA Over Bluetooth Supports firmware upgrades without physical servicing, reducing maintenance overhead.

NB-IoT/LTE-M Macro Bluetooth Gateway Use Cases

What it Could be Used for

Hospital Asset Tracking with Bluetooth Beacons

Hospital Asset Tracking

Monitor critical medical devices (e.g., infusion pumps, portable X-ray units) and forward real-time usage and location to hospital IT systems. Ultra-long battery life reduces manual checks and maintenance.

Lansitec B Mobile Solution for Car and Key Tracking in Dealerships 2 NB-IoT Macro Bluetooth Gateway LANSITEC TECHNOLOGY CO. LTD

Vehicle Tracking

Gather BLE sensor info (fuel, tire pressure, diagnostics) from fleet vehicles. Relay aggregated data to the cloud for route optimization, safety checks, and real-time alerts.

B010 Industrial Beacon: Advanced Real-Time Asset Tracking Solution

Industrial Inventory

Track and manage large machinery or warehouse pallets over extended periods without frequent battery replacements. Alerts and data trends help minimize downtime and streamline logistics.

Enhancing Logistics Efficiency with Lansitec Cat-1 Trackers and Bluetooth Beacons

Supply Chain Visibility

Deploy the gateway in shipping containers or cargo bays. Prolonged battery life ensures continuous asset visibility during long-haul transportation, improving traceability and reducing loss or damage.

hay-bales-countryside

Off-Grid Infrastructure

Ideal for remote facilities (e.g., telecom towers, solar farms) lacking consistent power supply. The durable design and low discharge battery enable automatic sensor readings and status reports even under harsh conditions.

Technical Details

Product Specifications

Mechanics

Dimension

160*160*55mm

Ingress Protection

IP66

Housing Materials

Anti-UV PC-ABS

Operating Temperature

-45°C~+85°C

Storage Temperature

-60°C~+90°C

Operating Humidity

0% ~ 95% (non-condensing)

PCB Coating

Water proof coating

Weight

530g

Power

Battery

Li-SoCl2 19000mAhx2, optional: 19000mAhx4/19000mAhx6

Battery Life

5 years @ 5s Bluetooth receiving duration and 240s report interval

Standby Current

25μA

Max. Current

300mA

Bluetooth Positioning

Approx. 1m times *

*Please refer to the battery life calculator for detailed battery life information.

Connectivity

Protocol

MQTT, HTTP

LoRaWAN

Optional

LTE-FDD

Band

Data Rate (Peak)

LTE-M

B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/ B20/B25/B26/B27/B28/B66/B85

588 (DL) 1119 (UL)

NB-IoT

B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/ B20/B25/B28/B66/B71/B85

Cat NB2: 127 (DL) 158.5 (UL)
Cat NB1: Max. 32 (DL) Max. 70 (UL)

Wifi

Optional, 2.4GHz, positioning only

N/A

SIM Card

Nano and eSIM

N/A

Bluetooth

Bluetooth Protocol

5.0, iBeacon, Eddystone, private

Bluetooth TX Power

-20 to +4 dBm TX power, configurable in 4 dBm steps

Bluetooth Sensitivity

-96dBm

Functions

Adjustable Bluetooth Payload to be reported

Filter any data bytes in a Bluetooth payload and report any via NB-IoT or LTE-M

Adjustable Position Report Interval

5s x n (1 to 65536)

Heartbeat Report Interval

30s x n (1 to 65536)

Switch

Mechanical

Customized data filter and data report

Support

FOTA over Bluetooth

Support

Encryption

TLS1.2

Max. Uplink Report Bytes

1400

Max. Beacons Supported

105 *

*Please reach out to us if more are needed.

Certification

CE, FCC, RCM, BQB

Helmet GPS Tracker

NB-IoT
Helmet Sensor

Lansitec NB-IoT Helmet Sensor is designed based on GNSS, Bluetooth5.0, and forward data via NB-IoT or LTE-M. It supports indoor and outdoor tracking. It supports various features which contribute to easy asset management in industrial settings. Its built-in 3-axis accelerator could be used for determining the motion status of the sensor to save power and enhance user experience.

Helmet Tracker

Product Specifications

Connectivity

Protocol

MQTT, HTTP(S)

Encryption

AES128

LTE-M

Band: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
Data Rate (Peak): 588 (DL), 1119 (UL)

NB-IoT

Band: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
Data Rate (Peak): Cat NB2: 127 (DL) 158.5 (UL) Cat NB1: Max. 32 (DL) Max. 70 (UL)

Wifi

Band: Optional, 2.4GHz, positioning only
Data Rate (Peak): N/A

SIM Card

Band: Nano and eSIM
Data Rate (Peak): N/A

Bluetooth

Bluetooth Protocol

5.0, iBeacon

Bluetooth TX Power

-20 to +4 dBm TX power, configurable in 4 dBm steps

Bluetooth Sensitivity

-96dBm

Bluetooth Positioning Accuracy

3m

GNSS

GNSS

GPS, BDS, GALILEO, GLONASS, QZSS, SBAS (WAAS, EGNOS, GAGAN, MSAS)

GNSS Position Accuracy

<2.5m (CEP50)

Cold Start Duration

30~120s

AGPS

Support

Mechanics

Dimension

80*80*35mm

Operating Temperature

-10°C~+65°C

Charging Temperature

0°C~+50°C

Storage Temperature

-20°C~+80°C

Operating Humidity

5% ~ 95% (non-condensing)

Weight

90g

Housing Material

ABS and PC

Ingress Protection

IP66

Impact Protection

IK10

Power

Standby Current

25μA

Maximum Current

145mA

Status LED

Support

Battery

Li-ion rechargeable battery 1200mAh

GNSS (report interval >10minutes)

Approx. 8000 times

Bluetooth Position

Approx. 33000 times

Power

Adjustable Position Report Interval

5s x n (1 to 65536)

Heartbeat Report Interval

30s x n (1 to 65536)

GNSS Position Report Interval

5s xn (1 to 65536)

FOTA over Bluetooth

Support

Movement Duration

Support

Fall Detection

Support

G-sensor

Support

Barometer

Support, 1m altitude accuracy

Battery Level Report

Support

Proximity Detection

Support

Switch

Button × 2

NFC Tag (optional)

1KB

LoRaWAN
Tracking Label

Say goodbye to lost shipments and untraceable assets with Lansitec’s ultra-thin Tracking Label. Combining GNSS, Bluetooth 5.0, and LoRaWAN technology, this disposable tracking solution provides reliable indoor and outdoor positioning for packages, pallets, and containers. Whether you’re shipping goods across the globe or simply managing inventory within a warehouse, the Tracking Label’s 3-axis accelerometer and automatic BLE/GNSS switching ensure efficient power use without compromising on accuracy. With up to three years of battery life (based on six GNSS reports per day) and an IP66 rating, this label is built to stand up to harsh conditions and lengthy transit times—giving you the confidence to monitor and manage your assets from end to end.

Features

What Makes it Unique

  • Ultra-Thin & Disposable Design At just 3mm thick, it’s easy to attach to packages or pallets, making it the ideal lightweight, single-use tracking solution.
  • Dual Indoor/Outdoor Tracking Switch automatically between Bluetooth (1–3m accuracy) indoors and GNSS (<2.5m CEP) outdoors for consistent location visibility.
  • Long Battery Life A built-in 2000mAh disposable lithium battery can last over three years under typical usage, significantly reducing maintenance.
  • Intelligent Motion Detection The 3-axis accelerometer detects movement or tampering and adjusts tracking frequency to conserve power.
  • Rugged IP66 Enclosure Safeguards against moisture, dust, and mild impacts, ensuring reliable performance in transit or storage.
  • Low Operating Costs LoRaWAN connectivity removes the need for costly cellular data plans, lowering your total cost of ownership.

Use Cases

Where it Could be Used for

Indoor Asset Tracking Solution

Package & Pallet Tracking

Monitor shipments in real time across multiple carriers, alerting you to potential delays, re-routes, or tampering.

Warehouse Inventory Management with Bluetooth Beacons

Warehouse Inventory Control

Combine the label’s indoor BLE tracking with LoRaWAN coverage to instantly locate items—preventing stockouts or overstock.

Cold Chain Logistic Temperature Monitoring

Cold Chain Logistics

Pair optional environmental sensors with the label to track temperature-sensitive goods, ensuring compliance and preventing spoilage.

Macine or Equipment Rentla LoRaWAN Container Tracker

Rental & Leasing Management

Affix a disposable label to equipment or assets on short-term leases, offering accurate usage data and location without long-term commitments or high operational costs.

Sea Container Tracking

Smart Returnable Packaging

Improve asset utilization by tracing returnable containers or crates in real time, minimizing losses and accelerating turnaround times.

Technical Details

Product Specifications

Mechanics

Dimension

120*75*3mm

Operating Temperature

-35°C ~ +75°C

Storage Temperature

-45°C ~ +85°C

Operating Humidity

0% ~ 95% (non-condensing)

Weight

50g

Ingress Protection

IP66

Power

Battery

1800mAh Disposable Lithium Battery

Battery Life

> 3 years @ 6 GNSS reports a day

Operating Current

20μA ~139mA

Connectivity

Bluetooth Protocol

Bluetooth 5.0

LoRaWAN Protocol

LoRaWAN 1.0.2B

LoRa Frequency

US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470

LoRa Distance

>1km in urban area

LoRa Sensitivity

-139dBm @SF12, BW125kHz, 434MHz/470MHz
-137dBm @SF12, BW125kHz, 868MHz/915MHz

Bluetooth Distance

150m sight distance

Indoor Tracking

Bluetooth, 1~3m accuracy

Outdoor Tracking

GNSS, <2.5m CEP

Functions

3D Accelerometer

Support

Encryption

AES128

Low Battery Alert

Support

Vibration Intensity Adjustment

Support

Operating Mode

GNSS coordinates acquisition frequency adjustable, LoRa communication frequency adjustable, Automatic BLE and GNSS tracking switching

Certification

CE, FCC, RCM

LoRaWAN
Solar Tracker

Harness the power of the sun for streamlined asset and personnel tracking with the Lansitec Solar Tracker. Built on GNSS, Bluetooth 5.0, and LoRaWAN technology, it provides accurate indoor and outdoor positioning while operating on a robust 3W solar panel and a 5300mAh rechargeable battery. Easy to install and configure, the Solar Tracker enables flexible scheduling for GNSS reports, heartbeat messages, and beacon data intervals—helping users optimize performance and power consumption. Ideal for vehicles, personnel, or medical assets, this eco-friendly device reduces downtime and boosts operational visibility, even in demanding environments.

Features

What Makes it Unique

  • Hybrid Indoor/Outdoor Tracking Combines GNSS (<2.5m accuracy) for outdoor positioning with Bluetooth 5.0 for more localized, indoor asset monitoring.
  • Solar-Powered & Long-Lasting Battery A durable 3W solar panel and 5300mAh rechargeable battery provide extended operation, reducing manual charging and maintenance.
  • LoRaWAN Connectivity Transmit data over long distances (>2km in urban areas) without network fees, leveraging AES128 encryption for secure communication.
  • Adaptable Reporting Intervals Adjust GNSS position, heartbeat, and beacon reporting frequencies to balance battery life with real-time visibility.
  • IP66-Rated Enclosure Rugged design withstands dust, water, and extreme temperatures, ideal for challenging outdoor or semi-outdoor conditions.
  • Asset Management with BLE Tags Gather data from nearby Bluetooth beacons—such as temperature or location—and relay them via LoRaWAN for centralized monitoring.
  • Offline Caching & FOTA Store location data when out of network range and utilize firmware-over-the-air updates via Bluetooth to keep the device up-to-date.

Use Cases

Where it Could be Used for

Lansitec B Mobile Solution for Car and Key Tracking in Dealerships 2 Solar Tracker LANSITEC TECHNOLOGY CO. LTD

Vehicle Tracking

Monitor real-time vehicle locations, speeds, and conditions to optimize dispatching and reduce operational costs.

Helmet Sensor for Factory Personnel Tracking

Personnel Tracking

Enhance workplace security and efficiency by monitoring staff movements in sensitive areas or across large facilities.

Agricultural Asset Monitoring

Agricultural Asset Monitoring

Use solar-powered tracking in remote farmlands to safeguard expensive equipment, livestock, or valuable inventory without relying on constant battery replacements.

Group of People Gathering Event Management Indoor Bluetooth Gateway

Outdoor Event & Venue Management

Track attendee flow, staff placement, and critical resources—such as medical stations—in expansive event spaces to improve crowd control and safety.

Technical Details

Product Specifications

Mechanics

Dimension

160*160*55mm

Operating Temperature

-40°C ~ +70°C

Storage Temperature

-45°C ~ +85°C

Operating Humidity

0% ~ 95% (non-condensing)

Weight

460g

Ingress Protection

IP66

Power

Battery

Li-ion rechargeable battery 5300mAh

Solar Panel

Approx. 30,000 times

Standby Current

25μA

Switch

15μA

Status LED

145mA

Connectivity

Bluetooth Protocol

Bluetooth 5.0

Activation Mode

OTAA or ABP

LoRaWAN Protocol

LoRaWAN 1.0.2B

LoRa Frequency

US915, AU915, EU868, AS923, LA915, RU864, KR920, IN865, KZ865, CN470

LoRa TX power

0 to 20dBm

High TX Power Option

Max. 30dBm and -150dBm receiving sensitivity

LoRa Sensitivity

-139dBm @SF12, BW 125kHz, 434MHz/470MHz
-137dBm @SF12, BW 125kHz, 868MHz/915MHz

Access Quantity

>500 in one LoRaWAN gateway

LoRa Communication Distance

>2km in the urban area

Encryption

AES128

Bluetooth

TX Power

-20 to +4 dBm TX power, configurable in 4 dBm steps

Sensitivity

-96dBm

Receiving Range

50m

GNSS

GNSS

BDS/GPS/GLONASS

Accuracy

<2.5m (CEP50)

Cold Start Time Duration

30~120s

Functions

Adjustable Position Report Interval

5s x n (1 to 65536)

Heartbeat Report Interval

30s x n (1 to 255)

GNSS Position Report Interval

5s x n (1 to 65536)

Adjustable Bluetooth Payload to be reported

Support

FOTA over Bluetooth

Support

Temperature Report

Optional, please advise Lansitec upon ordering

Temperature Sensor Range

-40°C~+85°C

Temperature Accuracy

Chamber temperature in the beacon, ±5°C

Temperature Resolution

0.25°C

Certification

CE, FCC, RCM

LoRaWAN

SocketSync
Proximity Gateway

Enhance indoor safety and tracking precision with the SocketSync Proximity Gateway. Combining Bluetooth 5.0 and LoRaWAN technology, this compact device not only collects and forwards BLE sensor data to the LoRaWAN network but also alerts you with buzzing and flashing when a Bluetooth beacon enters a predefined proximity range. By calculating distance based on the signal strength (RSSI), the SocketSync Proximity Gateway helps you protect sensitive areas, manage high-value equipment, and monitor personnel in real time. Thanks to its configurable alarm range, adjustable reporting intervals, and robust power options, this gateway provides a versatile solution for security, asset management, and workflow efficiency across diverse indoor scenarios.

Features

What Makes it Unique

  • Proximity-Based Alarms Trigger buzzer and LED flash alerts when beacons cross a customizable RSSI threshold, enhancing on-site safety and security.
  • Indoor Tracking & Geo-Fencing Monitor movement within defined areas and receive notifications if assets, personnel, or visitors breach preset boundaries.
  • LoRaWAN & Bluetooth 5.0 Integration Enjoy wide-area, cost-effective connectivity without compromising on low-power, long-range performance.
  • Easy Installation & Power Options Comes with AC power support (85–305VAC), a rechargeable 300mAh battery for temporary power outages, and a compact ABS housing for simple mounting.
  • FOTA Over Bluetooth Keep your device up to date with over-the-air firmware upgrades for continuous improvements in performance and security. Wide power supply - 85~305VAC
  • Customizable Reporting Adjust alarm duration, heartbeat intervals, beacon report frequency, and Bluetooth payload settings to match your operational needs.

Use Cases

Where it Could be Used for

Factory Personnel Tracking with Bluetooth Beacons

Personnel Safety & Access Control

Automatically alert staff if someone enters a restricted zone, or if a lone worker remains stationary for too long—ideal for office buildings and industrial settings.

Hospital Asset and Staff Tracking with Lansitec

Hospital & Laboratory Monitoring

Safeguard sensitive equipment and areas like labs or quarantine zones by setting proximity-based alarms that activate when unauthorized or untagged personnel approach.

Public Spaces Outdoor Event Socket Sync Bluetooth Gateway

Event Management

Deploy the gateway at entrances or designated sections to control crowd flow, prevent bottlenecks, and enhance attendee safety with immediate, on-the-spot alarms.

Warehouse Shelf Socket Sync Proximity Gateway LANSITEC TECHNOLOGY CO. LTD

Warehouse Collision Avoidance

Minimize accidents by alerting forklift operators or warehouse staff when they come too close to one another or to restricted aisles, preventing collisions and enhancing on-site safety.

Retail Inventory Compact Bluetooth Gateway

Real-Time Retail Security

Monitor high-value merchandise in retail stores; trigger on-site alarms and remote notifications if inventory items are moved without authorization.

Technical Details

Product Specifications

Mechanics

Dimension

81*61*26mm (45mm, with the mounting lug)

Operating Temperature

-10 ~ +60°C

Storage Temperature

-45°C ~ +85°C

Operating Humidity

0% ~ 95% (non-condensing)

Housing Material

ABS with fire retardant

Power

Battery

Li-ion rechargeable battery, 300mAh

AC Input

85~305VAC

Standby Current

5mA

Max. Current

200mA

Switch

Mechanical

Status LED

Support

LoRaWAN

LoRaWAN Protocol

LoRaWAN 1.0.2B

LoRa Frequency

US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470

LoRa TX power

0 to 20dBm

LoRa Sensitivity

-139dBm @SF12, BW125kHz, 434MHz/470MHz
-137dBm @SF12, BW125kHz, 868MHz/915MHz

LoRa Communication Distance

>1.5km in the urban area

Encryption

300~30K

Bluetooth

Protocol

Bluetooth 5.0

TX Power

4, 0, -4, -8, -12, -16, -20dBm

Sensitivity

-96dBm

Receiving Range

50m

Functions

Alarm RSSI Threshold

Default: -65dBm, adjustable

Buzzer Volume Level

0 (silent) to 4 (maximum)

Buzzer Duration

10s x n (1 to 255)

Adjustable Position Report Interval

5s x n (1 to 65536)

Heartbeat Report Interval

30s x n (1 to 255)

Adjustable Bluetooth Payload to be reported

Filter any data bytes in a Bluetooth payload and report any via LoRaWAN

FOTA over Bluetooth

Support

Switch

Mechanical

Max. Beacons Supported

105*, maximum of 15 beacon messages at one single LoRaWAN package @SF9

* Please reach out to us if more are needed.

Certification

CE, FCC, RCM

LoRaWAN
Macro Tracker

Take long-term asset monitoring to the next level with the Lansitec Macro Tracker. Built on GNSS, Bluetooth 5.0, and LoRaWAN technology, this tracker excels at both indoor and outdoor positioning—making it ideal for fleet management, warehouse optimization, and high-value asset protection. Thanks to its industrial-grade 38,000mAh lithium thionyl chloride battery, the Macro Tracker can run for multiple years with minimal intervention. Add to that IP66-rated durability, configurable reporting intervals, and flexible data payload settings, and you have a robust, low-maintenance tracking solution that keeps your operations running smoothly, no matter how demanding the environment.

Features

What Makes it Unique

  • Ultra-Long Battery Life A 38,000mAh industrial battery delivers up to 7 years of standby time, minimizing maintenance visits and downtime.
  • Accurate Indoor & Outdoor Tracking Combine GNSS (<2.5m accuracy) for outdoor positioning with Bluetooth 5.0 for close-range, indoor monitoring.
  • IP66-Rated Durability Sealed against dust and water, the Macro Tracker operates between -45°C and +85°C, perfect for harsh or remote locations.
  • LoRaWAN Connectivity Ensure secure, long-range communication (>2km in urban areas) without monthly cellular fees, all encrypted via AES128.
  • Configurable Data & Reporting Easily adjust GNSS intervals, heartbeat periods, and Bluetooth payloads to meet your specific operational demands.
  • Simple Deployment With optional temperature sensing, FOTA updates over Bluetooth, and a built-in status LED, installation and management are straightforward.

Use Cases

Where it Could be Used for

Lansitec B Mobile Solution for Car and Key Tracking in Dealerships 2 Macro Tracker LANSITEC TECHNOLOGY CO. LTD

Vehicle Tracking

Monitor vehicles in real time to optimize dispatch operations, reduce fuel costs, and enhance driver safety through maintenance alerts and geofencing.

Mining & Remote Site Operations

Mining & Remote Site Operations

Track heavy machinery and key personnel in remote mining sites or construction zones. The Macro Tracker’s robust battery and IP66 enclosure thrive in harsh outdoor conditions.

Emergency Evacuation & Rescue

Emergency Logistics & Disaster Relief

Monitor relief shipments and critical resources over extended durations in areas lacking stable power or connectivity, ensuring that aid reaches those who need it most.

Technical Details

Product Specifications

Mechanics

Dimension

160*160*55mm

Operating Temperature

-45°C ~ +85°C

Storage Temperature

-60°C ~ +90°C

Operating Humidity

0% ~ 95% (non-condensing)

Weight

530g

Ingress Protection

IP66

Power

Battery

Li-SoCl2 Battery, 2×19000mAh (optional: 4×19000mAh)

Standby Current

25μA

Switch

Support

Status LED

Support

Connectivity

Bluetooth Protocol

Bluetooth 5.0

Activation Mode

OTAA or ABP

LoRaWAN Protocol

LoRaWAN 1.0.2B

LoRa Frequency

US915, AU915, EU868, AS923, LA915, RU864, KR920, IN865, KZ865, CN470

LoRa TX power

0 to 20dBm

High TX Power Option

Max. 30dBm and -150dBm receiving sensitivity

LoRa Sensitivity

-139dBm @SF12, BW 125kHz, 434MHz/470MHz
-137dBm @SF12, BW 125kHz, 868MHz/915MHz

Access Quantity

>500 in one LoRaWAN gateway

LoRa Communication Distance

>2km in the urban area

Encryption

AES128

Bluetooth

TX Power

-20 to +4 dBm TX power, configurable in 4 dBm steps

Sensitivity

-96dBm

Receiving Range

50m

GNSS

GNSS

BDS/GPS/GLONASS

Accuracy

<2.5m (CEP50)

Cold Start Time Duration

30~120s

Functions

Adjustable Position Report Interval

5s x n (1 to 65536)

Heartbeat Report Interval

30s x n (1 to 255)

GNSS Position Report Interval

5s x n (1 to 65536)

Adjustable Bluetooth Payload to be reported

Support

FOTA over Bluetooth

Support

Temperature Report

Optional, please advise Lansitec upon ordering

Temperature Sensor Range

-40°C~+85°C

Temperature Accuracy

Chamber temperature in the beacon, ±5°C

Temperature Resolution

0.25°C

Certification

CE, FCC

LoRaWAN

Macro Proximity Gateway

Elevate safety and tracking with the Lansitec Macro Proximity Gateway. Featuring both Bluetooth 5.0 and LoRaWAN technology, this gateway does more than just collect beacon data: it actively monitors proximity and triggers an alarm—complete with buzzing and flashing—whenever a Bluetooth beacon enters a predefined range. By measuring signal strength (RSSI), the Macro Proximity Gateway estimates the distance between itself and nearby beacons, relaying critical data to a LoRaWAN gateway for real-time visibility. Multiple battery configurations (up to 6×19,000mAh) ensure at least one year of continuous operation, making it an ideal solution for extended deployments where safety, security, and asset tracking are top priorities.

Features

What Makes it Unique

  • Proximity Alarm with LED & Buzzer Automatically alert nearby personnel when a beacon crosses an adjustable RSSI threshold, bolstering safety and security.
  • Accurate Indoor Tracking Track assets and personnel within indoor environments, leveraging LoRaWAN connectivity for long-range reporting.
  • Geo-Fencing Define virtual boundaries and receive instant alerts if tracked items move beyond their designated zones.
  • Adjustable Alarm Settings Customize alarm range, duration, volume, heartbeat intervals, and more for optimal performance.
  • High-Capacity Battery Options Choose from multiple Li-SoCl2 battery configurations to ensure at least one year of uninterrupted operation.
  • IP66-Rated Durability Built to withstand harsh conditions with protection against dust and water, making it suitable for industrial environments.
  • Comprehensive BLE Gateway Gather sensor readings (e.g., temperature, humidity) from nearby Bluetooth beacons and forward them via LoRaWAN for centralized monitoring.

Use Cases

Where it Could be Used for

Visitor Experience at Tourist Attractions with B004 Bluetooth Beacon

Visitor Management & Restricted Access

Implement proximity-based controls in hospitals, museums, data centers, or corporate offices. When an asset or a visitor wearing a beacon nears a restricted zone, the gateway’s alarm system notifies security personnel, ensuring swift response and asset protection.

Construction Site

Construction Site Safety

Deploy proximity alerts to warn workers of approaching heavy machinery or hazardous zones. The audible and visual alarms help reduce accidents and enhance overall site safety.

Fridge Food Temperature Monitor Macro Proximity Sensor LANSITEC TECHNOLOGY CO. LTD

Bluetooth data Communication

Seamlessly transmit temperature, humidity, liquid level, and other BLE sensor readings to LoRaWAN gateways for robust data analytics and swift decision-making.

Technical Details

Product Specifications

Mechanics

Dimension

160*160*55mm

Operating Temperature

-45°C ~ +85°C

Storage Temperature

-60°C ~ +90°C

Operating Humidity

0% ~ 95% (non-condensing)

Weight

530g

Ingress Protection

IP66

Power

Battery

Li-SoCl2 Battery, 19000mAhx2/19000mAhx4/19000mAhx6

Standby Current

15μA

Switch

Support

Status LED

Support

Connectivity

Bluetooth Protocol

Bluetooth 5.0

LoRaWAN Protocol

LoRaWAN 1.0.2B

LoRa Frequency

US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470

LoRa Maximum RF Power

22dBm

High TX Power Option

Max. 30dBm and -150dBm receiving sensitivity

LoRa Sensitivity

-139dBm @SF12, BW125kHz, 434MHz/470MHz -137dBm @SF12, BW125kHz, 868MHz/915MHz

Access Quantity

>500 in one LoRaWAN gateway

Data Rate (bps)

300~30K

Functions

Alarm RSSI Threshold

Default: -65dBm, adjustable

Buzzer Volume Level

0 (silent) to 4 (maximum)

Buzzer Duration

Filter any data bytes in a Bluetooth payload and report any via LoRaWAN

Adjustable Position Report Interval

10s x n (1 to 255)

Heartbeat Report Interval

5s x n (1 to 65536)

Adjustable Bluetooth Payload to be reported

Filter any data bytes in a Bluetooth payload and report any via LoRaWAN

FOTA over Bluetooth

Support

Max. Beacons Supported

105*, maximum of 15 beacon messages at one single LoRaWAN package @SF9

* Please reach out to us if more are needed.

Certification

CE, FCC, RCM

B011 Helmet Beacon

The Lansitec B011 Helmet Beacon is purpose-built for industrial, healthcare, or security contexts where reliable, long-lasting Bluetooth tracking is crucial. Equipped with a 1,200 mAh rechargeable Li-ion battery, it can run for up to a year at 0 dBm and a 0.5 s broadcast interval. Its IP66-rated ABS/PC housing shields the beacon from dust and water, making it suitable for rugged environments. Supporting iBeacon and optional AoA protocols, the B011 ensures precise indoor/outdoor tracking—even at distances up to 150 m—while optional temperature monitoring adds another layer of situational awareness.

B011 Helmet Beacon Features

What Makes it Unique

  • Extended Battery Life Sustain up to a year of continuous advertising at moderate intervals; ideal for helmets, machinery, or roaming assets.
  • Robust Construction IP66 enclosure (80 × 80 × 35 mm, 90 g) withstands heavy use in warehouses, factories, and outdoor sites.
  • Adjustable RF & Intervals Set RF power from -20 to +4 dBm and advertisement intervals from 100 ms to 10 s to optimize power usage and detection range.
  • AoA (Optional) Achieve superior location accuracy with angle-of-arrival gateways, crucial for high-security or high-precision tracking.
  • Temperature Sensing (Optional) Monitor ambient conditions (±5 °C accuracy) in demanding setups, from construction sites to medical wards.
  • Buzzer Support Enable audible alerts for lost-and-found scenarios, emergency notifications, or status confirmations.

B011 Helmet Beacon Use Cases

What it Could be Used for

Hospital Asset Tracking with Bluetooth Beacons

Hospital Asset Tracking

Affix the beacon to vital medical equipment or trolleys. The real-time broadcasts help staff locate items quickly, reducing delays in patient care.

Lansitec B Mobile Solution for Car and Key Tracking in Dealerships 2 Helmet Beacon LANSITEC TECHNOLOGY CO. LTD

Vehicle Monitoring

Attach to hardhats used by drivers or forklift operators in large depots. The beacon’s robust build and year-long battery ensure consistent updates without frequent battery changes.

Helmet Sensor for Factory Personnel Tracking

Industrial Workflow

Place on helmets worn by workers in heavy manufacturing or construction sites. AoA compatibility provides pinpoint positioning for improved safety oversight and efficient team coordination.

Agricultural Asset Monitoring

Outdoor Equipment

Use the IP66-rated beacon on external power tools or rolling stock in challenging conditions. Extended coverage (up to 150 m) ensures location signals remain strong over extensive work areas.

Macine or Equipment Rentla LoRaWAN Container Tracker

Maintenance Scheduling

Integrate temperature data and usage intervals to predict maintenance needs on equipment or protective gear. Automate restock alerts and safety checks based on reliable, real-time telemetry.

Technical Details

Product Specifications

Mechanics

Dimension

80*80*35mm

Weight

90g

Color

White

Material

ABS and PC

Operating Temperature

-10°C~+65°C; optional: 1200mAh battery, -40°C~+125°C

Storage Temperature

-25°C ~ +75°C

Operating Humidity

5% ~ 95% (non-condensing)

Ingress Protection

IP66

Power

Battery

1200mAh Li-ion rechargeable battery

Battery Life

1 Year (0dBm, 0.5s transmit interval)

Connectivity

Beacon Protocol

iBeacon, Bluetooth AoA

RF Power

-20~+4 dBm, configurable in 4 dBm steps

Sensitivity

-96dBm

Advertise Interval

100ms ~ 10s adjustable

Bluetooth Protocol

Bluetooth 5.1

Coverage Range

150m sight distance

Supply Capacity

>300k/month

Frequency

2.4GHz

Functions

Temperature Report

Optional, please advise Lansitec upon ordering

Temperature Sensor Range

-40°C~+85°C

Temperature Accuracy

Chamber temperature in the beacon, ±5°C

Temperature Resolution

0.25°C

Buzzer

Optional

Certification

CE, FCC

NB-IoT & LTE-M
Solar Bluetooth Gateway

The Lansitec Solar Bluetooth Gateway (NB-IoT/LTE-M) captures data from nearby BLE beacons and sensors—such as temperature or positioning information—and transmits it to the cloud via NB-IoT or LTE-M. Featuring a 3W solar panel and a 5300mAh rechargeable battery, it runs maintenance-free in harsh environments. Its IP66-rated enclosure, adjustable reporting intervals, and support for iBeacon, Eddystone, and custom Bluetooth protocols make it a flexible solution for long-term asset and inventory tracking across a wide range of industries.

NB-IoT/LTE-M Solar Bluetooth Gateway Features

What Makes it Unique

NB-IoT/LTE-M Solar Bluetooth Gateway Use Cases

What it Could be Used for

Hospital Asset Tracking with Bluetooth Beacons

Hospital Asset Tracking

Continuously monitor high-value medical equipment in real time. The solar-powered design suits semi-outdoor usage, such as ambulance staging areas or portable triage stations, minimizing battery swaps and maintenance visits.

Lansitec B Mobile Solution for Car and Key Tracking in Dealerships 2 NB-IoT Solar Bluetooth Gateway LANSITEC TECHNOLOGY CO. LTD

Vehicle Tracking

Oversee fleet movement and engine diagnostics by reading BLE sensor data. Forward aggregated telemetry (e.g., speed, location, temperature) to the cloud via NB-IoT or LTE-M for efficient scheduling and route optimization.

B010 Industrial Beacon: Advanced Real-Time Asset Tracking Solution

Industrial Inventory

Collect sensor data (humidity, pressure, weight) from BLE tags on crates, pallets, or machinery. Automatic alerts for abnormal conditions prevent downtime and optimize warehouse management.

Group of People Gathering Event Management Indoor Bluetooth Gateway

Field Security Systems

Deploy for temporary security checkpoints or remote outposts. Solar charging and robust cellular connectivity allow you to track personnel badges and local BLE sensors anywhere, without requiring a dedicated power source.

Public Spaces Outdoor Event Socket Sync Bluetooth Gateway

Outdoor Retail Management

Position at outdoor markets, festivals, or pop-up shops. Gather customer foot-traffic data via BLE beacons, while NB-IoT/LTE-M backhaul offers reliable connectivity for sales analytics and marketing insights.

Technical Details

Product Specifications

Mechanics

Dimension

160*160*55mm

Ingress Protection

IP66

Housing Materials

Anti-UV PC-ABS

Operating Temperature

-40°C ~ +70°C

Charging Temperature

-20°C ~ +60°C

Storage Temperature

-45°C ~ +85°C

Operating Humidity

0% ~ 95% (non-condensing)

PCB Coating

Water proof coating

Weight

460g

Power

Battery

Li-ion rechargeable battery, 5300mAh

Battery Life

1 month @ 10s Bluetooth receiving duration and 60 report interval

Bluetooth positioning

Approx. 150,000 times *

Solar Panel

3W

Standby Current

25μA

Max. Current

300mA

Max. Charging Current

500mA

Charging Rate

Max. 1500mAh each day

*Please refer to the battery life calculator for detailed battery life information.

Connectivity

Protocol

MQTT, HTTP

LoRaWAN

Optional

LTE-FDD

Band

Data Rate (Peak)

LTE-M

B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/ B20/B25/B26/B27/B28/B66/B85

588 (DL) 1119 (UL)

NB-IoT

B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/ B20/B25/B28/B66/B71/B85

Cat NB2: 127 (DL) 158.5 (UL)
Cat NB1: Max. 32 (DL) Max. 70 (UL)

Wifi

Optional, 2.4GHz, positioning only

N/A

SIM Card

Nano and eSIM

N/A

Bluetooth

Bluetooth Protocol

5.0, iBeacon, Eddystone, private

Bluetooth TX Power

-20 to +4 dBm TX power, configurable in 4 dBm steps

Bluetooth Sensitivity

-96dBm

Functions

Adjustable Bluetooth Payload to be reported

Filter any data bytes in a Bluetooth payload and report any via NB-IoT or LTE-M

Adjustable Position Report Interval

5s x n (1 to 65536)

Heartbeat Report Interval

30s x n (1 to 65536)

Switch

Mechanical

Customized data filter and data report

Support

FOTA over Bluetooth

Support

Encryption

TLS1.2

Max. Uplink Report Bytes

1400

Max. Beacons Supported

105 *

*Please reach out to us if more are needed.

Certification

CE, FCC, RCM

NB-IoT & LTE-M
Badge Tracker

The Lansitec NBM2 Badge Tracker combines NB-IoT, LTE-M, GNSS, and Bluetooth 5.0 for reliable indoor/outdoor tracking. Designed for both personnel and asset management, it features a built-in 3-axis accelerometer for motion detection, helping to optimize power consumption and extend battery life (up to 6 months on standby). Its sleek form factor (97×62×7 mm) makes it a convenient wearable or attachable solution for applications ranging from security and fleet operations to inventory tracking.

NBM2 Badge Tracker Features

What Makes it Unique

  • Dual Indoor/Outdoor Tracking GNSS (<2.5 m accuracy) for outdoor location, and Bluetooth (~3 m accuracy) for indoor tracking.
  • Safety-Focused Alerts Includes fall detection, panic button, zone detection, and overstay alarms, bolstering worker protection.
  • Rugged Design IP66 and IK10 ratings resist dust, water, and impacts from -10 °C to +65 °C.
  • Efficient Power Usage 1,200 mAh battery plus motion-based activation; up to 8,000 GNSS reports or 33,000 Bluetooth position updates.
  • Barometer & 3D Accelerometer Detect altitude changes (±1 m) and motion states for improved safety and usage metrics.
  • FOTA & NFC Firmware-over-the-air via Bluetooth and optional NFC enable swift device updates and easy provisioning.

NBM2 Badge Tracker Use Cases

What it Could be Used for

Build Smarter: B010 & B-Mobile for Construction Tracking

Construction Worker Tracking

Equip workers on building sites with helmet sensors for fall detection and overstay alarms. Managers receive near real-time alerts, improving safety compliance and rapid emergency response.

Helmet Sensor for Factory Personnel Tracking

Factory Personnel Management

Monitor staff locations and movements in production lines or warehouses. Barometric data helps identify employees working at elevated platforms, enhancing safety and ensuring quick intervention if unexpected drops occur.

Public Spaces Outdoor Event Socket Sync Bluetooth Gateway

Large Venue Security

Deploy sensors at major events, stadiums, or airports. The panic alarm feature helps staff quickly signal emergencies, while GNSS/Bluetooth location data streamlines crowd control and resource allocation.

Lone Worker Construction Site Protection Indoor Bluetooth Gateway

Confined Space Monitoring

Track workers entering tunnels, tanks, or basements where visibility and cellular connectivity can be limited. The sensor’s IP66 enclosure and fall-detection alerts bolster safety, preventing prolonged incidents in inaccessible areas.

Hazardous Environment

Hazardous Material Handling

Provide an added layer of safety for employees working with corrosives, explosives, or chemical agents. Immediate motion and location data help managers respond if staff remain too long in a restricted zone or signal a panic alarm.

Technical Details

Product Specifications

Mechanics

Dimension

97*62*7mm

Housing Materials

ABS

Operating Temperature

-10°C~+65°C

Storage Temperature

-20°C~+80°C

Operating Humidity

5% ~ 95% (non-condensing)

Weight

35g

Power

Battery

Li-ion rechargeable battery, 600mAh GNSS (

GNSS (report interval >10minutes)

Approx. 600 times

Bluetooth positioning

Approx. 2000 times

Standby Current

25μA

Max. Current

200mA

Connectivity

Protocol

MQTT, HTTP

LoRaWAN

Optional

LTE-FDD

Band

Data Rate (Peak)

LTE-M

B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/ B20/B25/B26/B27/B28/B66/B85

588 (DL) 1119 (UL)

NB-IoT

B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/ B20/B25/B28/B66/B71/B85

Cat NB2: 127 (DL) 158.5 (UL)
Cat NB1: Max. 32 (DL) Max. 70 (UL)

Wifi

Optional, 2.4GHz, positioning only

N/A

SIM Card

Nano and eSIM

N/A

Bluetooth

Bluetooth Protocol

5.0, iBeacon, Eddystone, private

Bluetooth TX Power

-20 to +4 dBm TX power, configurable in 4 dBm steps

Bluetooth Sensitivity

-96dBm

GNSS

GNSS

BDS/GPS/GLONASS/GALILEO/QZSS

GNSS Position Accuracy

<2.5m CEP

Cold Start Duration

30s to 60s

AGPS

Support

Functions

Adjustable Position Report Interval

5s x n (1 to 65536)

Heartbeat Report Interval

30s x n (1 to 65536)

Switch

Support

Fall Detection

Support

FOTA over Bluetooth

Support

Movement Duration

Support

3D Accelerometer

Support

NFC Tag (optional)

1KB

NB-IoT & LTE-M
Container Tracker

The Lansitec NBM1 Container Tracker combines NB-IoT/LTE-M connectivity with GNSS for versatile indoor and outdoor positioning. Its IP68-rated enclosure and dual 4000mAh Li/SOCl2 batteries enable 5 years of operation at a 30-minute reporting interval, making it perfect for long-haul containers, pallets, or high-value assets. With features such as tamper detection, door open/close sensing, and offline cache, this tracker helps prevent unauthorized activity and maintains reliable asset visibility in varied environments.

NB-IoT/LTE-M Container Tracker Features

What Makes it Unique

  • Global NB-IoT & LTE-M Support Operates on multiple bands for worldwide coverage.
  • Indoor & Outdoor Tracking GNSS (<2.5m accuracy) and optional Bluetooth positioning for transitional or indoor locations.
  • Movement & Tamper Detection Monitors vibration, detects shocks, and issues alarms if the tracker is removed.
  • Ultra-Long Battery Life Up to 5 years of service at a 30-minute reporting interval; 8,000mAh total capacity.
  • Asset Management with BLE Collect data from nearby Bluetooth tags and report through NB-IoT or LTE-M.
  • Offline Caching & FOTA Stores up to 40 positions if out of network range and supports firmware updates over Bluetooth.

NB-IoT/LTE-M Container Tracker Use Cases

What it Could be Used for

Sea Container Tracking

Container Tracking

Track thousands of cargo containers globally in real time; receive automatic alerts if a device is tampered with or removed, maintaining shipment integrity.

Factory Machine Status Monitoring LoRaWAN Container Tracker

Machine Status Monitoring

Capture metrics like movement duration, vibration intensity, and door open/close events for valuable machinery. Optimize maintenance schedules and extend equipment lifespan.

Transit Case LoRaWAN Container Tracker

Transit Case Management

Enhance visibility of transit cases, whether located in warehouses or on the move. Easily identify case contents via BLE tag scanning and expedite inventory checks.

Construction Site

Remote Construction Assets

Secure construction site equipment or portable office containers. The IP68 design stands up to harsh conditions, and long battery life reduces the need for frequent battery replacements.

Enhancing Container Tracking Efficiency with Lansitec LoRaWAN 2 NB-IoT Container Tracker LANSITEC TECHNOLOGY CO. LTD

Offshore Logistics

Monitor critical supplies on oil rigs or ships. The robust enclosure and wide operating temperature range (-45°C to +85°C) ensure uninterrupted tracking in extreme marine environments.

Technical Details

Product Specifications

Mechanics

Dimension

198*28*33mm

Ingress Protection

IP68

Housing Materials

PC and ABS

Operating Temperature

-20°C ~ +70°C

Storage Temperature

-10°C ~ +30°C

Operating Humidity

0% ~ 95% (non-condensing)

PCB Coating

Water proof coating

Weight

130g

Power

Battery

Li/SOCl2 4000mAh x 2

GNSS (report interval >10minutes)

Approx. 11,000 times

Bluetooth positioning

Approx. 24,000 times

Standby Current

25μA

Max. Current

200mA

Connectivity

Protocol

MQTT, HTTP

LoRaWAN

Optional

LTE-FDD

Band

Data Rate (Peak)

LTE-M

B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/ B20/B25/B26/B27/B28/B66/B85

588 (DL) 1119 (UL)

NB-IoT

B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/ B20/B25/B28/B66/B71/B85

Cat NB2: 127 (DL) 158.5 (UL)
Cat NB1: Max. 32 (DL) Max. 70 (UL)

Wifi

Optional, 2.4GHz, positioning only

N/A

SIM Card

Nano and eSIM

N/A

Bluetooth

Bluetooth Protocol

5.0, iBeacon, Eddystone, private

Bluetooth TX Power

-20 to +4 dBm TX power, configurable in 4 dBm steps

Bluetooth Sensitivity

-96dBm

GNSS

GNSS

BDS/GPS/GLONASS/GALILEO/QZSS

GNSS Position Accuracy

<2.5m CEP

Cold Start Duration

30s to 60s

AGPS

Support

Functions

Adjustable Position Report Interval

5s x n (1 to 65536)

Heartbeat Report Interval

30s x n (1 to 65536)

Switch

Mechanical

Temperature Report

Optional, please advise Lansitec upon ordering

Temperature Sensor Range

-40°C~+85°C

Temperature Accuracy

Chamber temperature in the beacon, ±5°C

Temperature Resolution

0.25°C

NFC Tag (optional)

1KB

3D Accelerometer

Support

FOTA over Bluetooth

Support

Movement Duration

Support

Door Open/Close Sensing

Support

Vibration Shock Detection

Support

Tamper Detection

Support

Asset Management with Bluetooth Tags

Support, report nearby Bluetooth tags

Offline Cache Position

40 Positions

Magnet Power Switch Enable/Disable

Support

B004 Bluetooth Beacon

Introducing the Lansitec B004 Bluetooth Beacon—a sleek, triangle-shaped device that can be attached to anything you want to track or safeguard. Operating on Bluetooth 5.0 and supporting the iBeacon protocol, it transmits signals up to 150 m (line of sight) to compatible gateways or smart devices. Powered by a single CR2032 battery (230 mAh), the beacon can last about 765 days at a 5 s advertisement interval and 0 dBm RF power. In addition to location broadcasting, it features a built-in buzzer for lost-and-found alerts, an SOS button for quick assistance, and optional AoA capabilities to boost positioning accuracy. Its compact form factor and low power consumption make it ideal for personal belongings, vehicle keys, and on-the-go employees who need an extra layer of security and convenience.

B004 Bluetooth Beacon Features

What Makes it Unique

  • Compact & Lightweight Triangle design (side length ~37 mm, thickness ~7.5 mm) easily attaches to keyrings, lanyards, or valuables.
  • Long Battery Life A single CR2032 cell (230 mAh) delivers up to 765 days of runtime at 0 dBm and 5 s advertisement intervals.
  • Buzzer & SOS Built-in audible alarm activated via BLE, plus a power/SOS button for quick assistance or manual power toggling.
  • Flexible Advertisement Adjust intervals from 100 ms to 10 s, balancing real-time visibility with power efficiency.
  • Optional AoA Support Enables enhanced positioning accuracy when paired with AoA-capable gateways, ideal for high-precision asset or personnel tracking.
  • Low Power Alarm & LED Offers visual and battery-level alerts to maintain reliable service with minimal downtime.

B004 Bluetooth Beacon Use Cases

What it Could be Used for

Mini Smart Bluetooth Tracker Beacon Tag B003 Comprehensive Technical Review

Personal Asset Tracking

Secure wallets, keychains, or laptops. Receive immediate beeps or location pings if they go missing, cutting down search times or theft risks.

Lansitec B Mobile Solution for Car and Key Tracking in Dealerships 2 B004 Bluetooth Beacon LANSITEC TECHNOLOGY CO. LTD

Vehicle Key Management

Keep track of multiple key fobs in auto dealerships, fleet operations, or personal garages. The beacon’s buzzer quickly locates misplaced keys, ensuring minimal disruption to daily workflows.

Helmet Sensor for Factory Personnel Tracking

Personnel & Visitor IDs

Equip staff or guests with discreet beacons in large facilities (factories, campuses) for real-time location monitoring and a built-in SOS function. Quick identification helps address emergencies or restrict unauthorized movements.

Public Spaces Outdoor Event Socket Sync Bluetooth Gateway

Public Rental Services

Attach beacons to e-scooters or bikes. The wide 150 m broadcast radius and buzzer function aid in quick returns and reduce theft or misuse.

Visitor Experience at Tourist Attractions with B004 Bluetooth Beacon

Event & Expo Navigation

Distribute beacons to attendees or VIPs. The iBeacon signals help with crowd analytics or customized notifications—like location-based announcements—while the buzzer and SOS features offer a safety net in busy venues.

Technical Details

Product Specifications

Mechanics

Dimension

Equilateral triangle, 37mm side length; thickness 7.5mm

Weight

6.8g

Color

Black/White/Green/Pink

Material

ABS

Operating Temperature

-20°C~+70°C

Storage Temperature

-25°C~+75°C

Operating Humidity

5% ~ 95% (non-condensing)

Installation Method

Double-Side Tape; Lanyard; Key Chain

Power

Battery

CR2032

Battery Capacity

230mAh

Battery Life

765 days on average @ 0dBm, 5s advertising interval

Standby Current

≤5μA

Peak Current

8mA

Average Current

15μA @ 0dBm, 5s advertising interval

Connectivity

Beacon Protocol

iBeacon

RF Power

-20~+4dBm

Advertise Interval

100ms~10s

Transmission Distance

150m sight distance

Bluetooth Protocol

Bluetooth 5.0

Functions

Power Button and SOS Button

Support

Buzzer

Support
*It can be activated via a Bluetooth command, for lost and found

Low Power Alarm

Support

LED

Support

Lansitec Bluetooth Bracelet

The Lansitec Bluetooth Bracelet goes beyond basic tracking by incorporating motion-sensor–based positioning (1–3 m accuracy), health monitoring (skin temperature, heart rate, blood pressure, steps), and an SOS button for emergency assistance. Featuring wear detection, the device automatically enters a low-power mode when it’s not on a user’s wrist—extending its battery life (4–10 days under normal usage). A 210 mAh rechargeable battery provides more than one month of standby, while the magnetic charging port allows full recharging in just 1.5 hours. Its compact form factor, real-time alerts for low power/shutdown, and iBeacon broadcasting capability make the Lansitec Bluetooth Bracelet a versatile choice for patient care, workforce safety, or visitor oversight.

Bluetooth Bracelet Features

What Makes it Unique

  • Indoor/Outdoor Tracking Tracks location via BLE with 1–3 m accuracy and automatically reports data as configured.
  • Vital Sign Monitoring Reads skin temperature, heart rate, blood pressure, and step count for continuous health insights.
  • Wear Detection & Power Saving Switches to low-power mode when not worn, prolonging battery life (up to 4–10 days under normal use).
  • SOS Button Triggers alarm messages, starts positioning, and reports health metrics immediately in emergencies.
  • Magnetic Charging Recharges the 210 mAh battery in around 1.5 hours, providing more than one month standby time.
  • Low Power/Shutdown Alerts Notifies the user of critical battery levels or device shutdown for uninterrupted tracking.

Bluetooth Bracelet Use Cases

What it Could be Used for

Hospital Asset and Staff Tracking with Lansitec

Patient Safety & Care

Track patient movement across wards or care facilities. Monitor vital signs in real time, and respond faster to wandering or emergency calls.

hospital2

Healthcare Coordination

Enhance operational efficiency with accurate, real-time information on patient positions—streamlining handovers, reducing delays, and minimizing miscommunication among caregivers.

Helmet Sensor for Factory Personnel Tracking

Workforce Security

Issue bracelets to employees in high-risk areas (factories, chemical plants). The real-time position data and SOS function help managers coordinate safe operations and respond rapidly to incidents.

Visitor Experience at Tourist Attractions with B004 Bluetooth Beacon

Visitor Oversight

Provide guests with temporary bracelets at large events, theme parks, or secure compounds. Track crowd flow, retrieve health metrics (if applicable), and quickly address lost or off-limits scenarios.

Hospital Asset Tracking with Bluetooth Beacons

Long-Term Patient Monitoring

Deploy for patients needing extended observation—e.g., in rehab centers or senior homes. Blood pressure, temperature, and step counts empower staff to detect anomalies promptly and deliver proactive care.

Technical Details

Product Specifications

Mechanics

Dimension

43*23*13mm

Weight

25g

Color

Black by default

Material

ABS

Operating Temperature

-10°C~+65°C

Storage Temperature

-20°C~+80°C

Operating Humidity

5% ~ 95% (non-condensing)

Waterproof Level

IP67

Wristband

TPU

Power

Battery

210mAh, 3.8V

Battery Life

More than 1 month

Normal Usage

4~10 days (depends on positioning frequency)

Charging Method

Magnetic adsorption charging

Charging Time

1.5 hours

Connectivity

Beacon Protocol

iBeacon

Bluetooth Protocol

Bluetooth 5.0

Bluetooth Function

BLE (Bluetooth Low Energy)

OTA via Bluetooth

Support

Positioning Accuracy

1~3m

Display

Screen Resolution

64x32, White OLED

Screen Size

0.49 inch

LED

2 LED lights (red and blue)

Functions

LED

Support

Physical Button

Support

Skin Temperature

Support

Blood Pressure

Support

Heartbeat

Support

Step Count

Support

Vibration Motor

Support

SOS Function

Support

Wear Detection

Support

RFID

Optional

Touch Button

Not Support

WiFi

Not Support

B003 Bluetooth Beacon

The Lansitec B003 Bluetooth Beacon is a compact triangular device that makes lost-and-found scenarios a breeze. Powered by a single CR2032 battery, it can last up to 765 days with typical usage (5 s advertisement interval). Its built-in buzzer sounds alerts when activated via a Bluetooth command—handy for locating misplaced belongings or issuing SOS signals. With iBeacon compatibility, 150 m line-of-sight coverage, and an optional AoA feature for precise positioning, the B003 Beacon is ideal for personal items, staff monitoring, and asset management across various industries.

B003 Bluetooth Beacon Features

What Makes it Unique

  • Compact Triangular Design Sleek, 37 mm-sided form factor (7.5 mm thick) that fits easily on keychains, lanyards, or inside bags.
  • Buzzer & SOS Button Trigger audible alerts for lost-and-found or emergency signals when connected to a compatible gateway or mobile app.
  • Extended Battery Life A single CR2032 battery (230 mAh) provides up to 765 days of operation at a 5 s advertising interval.
  • iBeacon & Optional AoA Broadcast iBeacon packets for straightforward integration with most Bluetooth gateways; enable AoA for more precise location data.
  • Low Power Alarms & LED Receive warnings when the battery is running low; LED and buzzer guide the user during pairing or reconfiguration.

B003 Bluetooth Beacon Use Cases

What it Could be Used for

Mini Smart Bluetooth Tracker Beacon Tag B003 Comprehensive Technical Review

Personal Item Tracking

Attach the beacon to keys, wallets, or other daily essentials. If misplaced, activate the buzzer or use the real-time location data to find items quickly, minimizing downtime and frustration.

Lansitec B Mobile Solution for Car and Key Tracking in Dealerships 2 B003 Bluetooth Beacon LANSITEC TECHNOLOGY CO. LTD

Vehicle Monitoring

Keep a beacon on vehicle keys, spare parts, or diagnostic gear. Ensure quick retrieval or theft deterrence with automatic motion alerts when the beacon is moved unexpectedly.

Helmet Sensor for Factory Personnel Tracking

Personnel Tracking

Provide employees or visitors with the beacon in large facilities. Combine with BLE gateways to detect real-time whereabouts, ensuring security and prompt responses to emergencies or restricted-area violations.

Smart Helmet with Sensors for Accident Prevention Enhancing Safety and Efficiency

Shared Asset Management

Track multi-user resources—like projectors, tools, or safety equipment—to see who has them, where they are in use, and receive alerts if they’re taken beyond authorized boundaries.

Lansitec B-Fixed Solution for Security Guard Tracking in Airports

Travel & Luggage

Slip a beacon into suitcases or backpacks before traveling. Whether at busy airports or hotel lobbies, the buzzer function offers an instant alert if your luggage moves unexpectedly, preventing mix-ups or theft.

Technical Details

Product Specifications

Mechanics

Dimension

Equilateral triangle, 37mm side length; thickness 7.5mm

Weight

6.8g

Color

Black/White/Green/Pink

Material

ABS

Operating Temperature

-20°C~+70°C

Storage Temperature

-25°C~+75°C

Operating Humidity

5% ~ 95% (non-condensing)

Installation Method

Double-Side Tape; Lanyard; Key Chain

Power

Battery

CR2032

Battery Capacity

230mAh

Battery Life

765 days on average @ 0dBm, 5s advertising interval

Standby Current

≤5μA

Peak Current

8mA

Average Current

15μA @ 0dBm, 5s advertising interval

Connectivity

Beacon Protocol

iBeacon

RF Power

-20~+4dBm

Advertise Interval

100ms~10s

Transmission Distance

150m sight distance

Bluetooth Protocol

Bluetooth 5.0

Functions

Power Button and SOS Button

Support

Buzzer

Support
*It can be activated via a Bluetooth command, for lost and found

Low Power Alarm

Support

LED

Support

LoRaWAN

SocketSync
Bluetooth Gateway

Streamline your indoor tracking and data collection with the Lansitec SocketSync Bluetooth Gateway. Built on a powerful combination of BLE and LoRaWAN technology, this compact device reads Bluetooth beacon data—such as location or sensor measurements—and forwards it securely via LoRaWAN to your preferred server or cloud platform. Designed for easy installation in office buildings, hospitals, or public venues, the SocketSync Gateway features adjustable parameters—including heartbeat intervals and LoRaWAN work modes—so you can tailor its operation to your specific needs. Whether you’re tracking hospital equipment, monitoring staff movement, or managing public spaces, SocketSync offers a flexible, cost-efficient gateway solution with minimal downtime.

Features

What Makes it Unique

  • Plug-and-Play Installation Simply connect the gateway to an AC power source (85–305VAC). A built-in 300mAh battery ensures continuous operation during power outages.
  • Bluetooth 5.0 & LoRaWAN Integration Receive data from BLE beacons and transmit it over LoRaWAN for broad coverage without incurring additional data costs.
  • Adjustable Reporting & Alarms Customize heartbeat intervals, position reports, and alarm triggers for precise control over your monitoring systems.
  • Long-Distance LoRa Communication Achieve up to 1.5km coverage in urban areas, enabling wide-area indoor or near-indoor tracking.
  • Configurable Bluetooth Payload Filter out unnecessary data bytes from BLE sensor messages to optimize bandwidth and power usage.
  • Robust Security Utilize AES128 encryption for safe, end-to-end data transmission and peace of mind in secure environments.
  • Versatile Sensor Compatibility Collect temperature, humidity, pressure, and more from BLE sensors, with the option to tailor data reports to your unique application. Wide power supply - 85~305VAC

Use Cases

Where it Could be Used for

Hospital Asset Tracking with Bluetooth Beacons

Hospital Asset Tracking

Monitor crucial medical tools—like infusion pumps and diagnostic devices—and ensure they’re located, maintained, and deployed efficiently.

Public Spaces Outdoor Event Socket Sync Bluetooth Gateway

Public Space Management

Oversee security personnel, maintenance teams, or event staff in large venues such as shopping malls, stadiums, or airports. Real-time location visibility improves safety and responsiveness.

Warehouse Shelf Socket Sync Bluetooth Gateway LANSITEC TECHNOLOGY CO. LTD

Warehouse & Inventory Optimization

Track pallets, forklifts, or valuable goods within a busy warehouse environment. Leverage the gateway’s long-range connectivity to reduce misplaced items and streamline operations.

Smart Office Environment Socket Sync Bluetooth Gateway

Smart Office & Co-Working Spaces

Monitor desk occupancy, temperature, and air quality with BLE sensors. Automatically adjust HVAC settings and optimize workspace allocation in real time to boost comfort and efficiency.

Technical Details

Product Specifications

Mechanics

Dimension

81*61*26mm (45mm, with the mounting lug)

Operating Temperature

-10 ~ +60°C

Storage Temperature

-45°C ~ +85°C

Operating Humidity

0% ~ 95% (non-condensing)

Housing Material

ABS with fire retardant

Power

Battery

Li-ion rechargeable battery, 300mAh

AC Input

85~305VAC

Standby Current

5mA

Max. Current

200mA

Switch

Mechanical

Status LED

Support

LoRaWAN

Activation Mode

OTAA or ABP

LoRa Frequency

US915, AU915, EU868, EU433, AS923, RU864, ID920, KR920, IN865, KZ865, CN470, CN470-Ali

LoRa TX Power

0 to 20dBm

LoRa Sensitivity

-139dBm @SF12, BW 125kHz, 434MHz/470MHz
-137dBm @SF12, BW 125kHz, 868MHz/915MHz

LoRa Communication Distance

>1.5km in the urban area

Encryption

AES128

Bluetooth

TX Power

4, 0, -4, -8, -12, -16, -20dBm

Sensitivity

-96dBm

Receiving Range

50m

Functions

Adjustable Position Report Interval

5s x n (1 to 65536)

Heartbeat Report Interval

30s x n (1 to 65536)

FOTA over Bluetooth

Support

Adjustable Bluetooth Payload to be reported

Filter any data bytes in a Bluetooth payload and report any via LoRaWAN

Max. Beacons Supported

105*, maximum of 15 beacon messages at one single LoRaWAN package @SF9

* Please reach out to us if more are needed.

Certification

CE, FCC, RCM

B002 Bluetooth Label

Introducing the Lansitec B002 Bluetooth Label, a remarkably thin (1.5–2.5 mm) BLE device built around the iBeacon protocol. Flexible yet durable, it can be attached to various surfaces—from medical equipment and shipping boxes to wallets and personal items—using double-sided adhesive. Whether you need to track assets within a hospital or manage inventory in a bustling warehouse, the B002 Bluetooth Label offers reliable, low-power beaconing that gateways or mobile devices can detect and decode in real time. With optional motion-based advertising and battery-level reporting, it helps you maintain pinpoint visibility over your most critical resources.

B002 Bluetooth Label Features

What Makes it Unique

  • Ultra-Thin Form Factor At just 1.5–2.5 mm thick, the flexible PVC construction suits tight spaces or curved surfaces, simplifying deployment.
  • Configurable Advertisement Interval Adjust between 100 ms and 10 s to balance power consumption and real-time detection.
  • Long Battery Life A built-in 500 mAh Li-MnO₂ battery can last up to 52 months at a 5 s interval without an accelerometer.
  • Movement & Battery Reporting (Optional) Enable motion-based broadcast or battery-level alerts for dynamic asset monitoring.
  • AoA Support (Optional) Pair with AoA-capable gateways for high-precision positioning, enhancing location granularity.
  • iBeacon Protocol Seamless integration with Bluetooth 5.0 receivers, ensuring broad compatibility across asset-tracking applications.

B002 Bluetooth Label Use Cases

What it Could be Used for

Hospital Asset and Staff Tracking with Lansitec

Hospital Asset Tracking

Affix labels to critical tools or devices, such as infusion pumps or portable imaging systems. Automatic location updates ensure rapid retrieval, reducing losses and improving patient care.

Lansitec B Mobile Solution for Car and Key Tracking in Dealerships 2 B002 Bluetooth Label LANSITEC TECHNOLOGY CO. LTD

Vehicle Tracking

Mark key fobs, spare parts, or diagnostic equipment within fleet vehicles or maintenance bays. The 150 m line-of-sight beaconing range supports timely alerts on asset movement and location status.

Warehouse Shelf B002 Bluetooth Label LANSITEC TECHNOLOGY CO. LTD

Warehouse Management

Streamline inventory by labeling crates, pallets, or high-value items. Optional accelerometer-based advertising helps detect unauthorized movement or mishandling events.

Retail Inventory Compact Bluetooth Gateway

Retail & Event Operations

Deploy on merchandise or promotional materials in pop-up stores and exhibitions. Track foot traffic patterns, item interactions, and replenish stock quickly to meet demand.

Smart Office Environment Socket Sync Bluetooth Gateway

Smart Home & Office

Attach to personal belongings or shared office resources (e.g., laptops, conference room equipment). The BLE beacons allow easy device lookup, reducing time spent on searches and losses due to misplacement.

Technical Details

Product Specifications

Mechanics

Dimension

90*60*1.5mm, Thickness: 1.5~2.5mm.

Weight

10g

Color

Blue in default, Customizable

Material

PVC

Operating Temperature

-35°C~+75°C

Storage Temperature

-45°C~+85°C

Operating Humidity

5% ~ 95% (non-condensing)

Installation Method

Double-side adhesive paste

Power

Battery

Li-MnO2, non-replaceable

Battery Capacity

500mAh

Battery Life

52 months @ 0dBm, 5s advertisement interval without the accelerometer

Standby Current

≤5μA

Peak Current

8mA

Average Current

15μA @ 0dBm, 5s advertising interval, without the 3D Accelerometer

Connectivity

Beacon Protocol

iBeacon

RF Power

-20~+4dBm

Advertise Interval

100ms~10s

Transmission Distance

150m sight distance

Bluetooth Protocol

Bluetooth 5.0

LoRaWAN
Solar Bluetooth Gateway

Experience reliable, real-time tracking and asset management with the Lansitec Solar Bluetooth Gateway. Built on the robust LoRaWAN and Bluetooth 5.0 protocols, this gateway seamlessly collects data from nearby BLE beacons and sensors—whether it’s temperature, humidity, or location—and transmits it over long distances via LoRaWAN. Powered by a durable 3W solar film and a 5300mAh rechargeable battery, it thrives in harsh outdoor environments, requiring minimal maintenance. From precise 3-meter outdoor tracking to geo-fencing capabilities, the Lansitec Solar Bluetooth Gateway helps organizations stay connected to their critical assets, reduce losses, and optimize operational efficiency.

Features

What Makes it Unique

  • Outdoor Tracking Precision (3m) Pinpoint the exact location of assets, vehicles, or personnel in real time.
  • iBeacon & Eddystone Compatibility Receive and restructure data from any BLE sensor or beacon for seamless integration.
  • Versatile Sensor Data Communication Collect temperature, humidity, liquid level, blood pressure, weight, and more, then relay data via LoRaWAN to your app or cloud service.
  • Wide Operating Temperature Range Built to perform reliably between -40°C to +70°C, ensuring year-round durability.
  • Geo-Fence Create virtual perimeters for enhanced security and automated alerts.
  • Maintenance-Free Solar Power A robust solar film and rechargeable battery provide continuous operation, even in harsh climates.
  • Adjustable Bluetooth Uploading Frequency Tailor transmission intervals for extended standby time and optimal power use.

Use Cases

Where it Could be Used for

Vehicle Tracking with Bluetooth Beacons

Vehicle Tracking

Gain real-time visibility into fleet locations to optimize routes, reduce operating costs, and enhance overall scheduling efficiency.

Sensors: Accurate Environment Data with LoRaWAN

Bluetooth data Communication

Seamlessly collect data from various BLE sensors—temperature, humidity, or even biometric signals—and transmit it via LoRaWAN to your cloud or on-premises system. Ideal for remote monitoring in healthcare, industrial, or environmental applications.

Warehouse Inventory Management with Bluetooth Beacons

Asset and Personal Tracking

Use advanced geolocation capabilities to keep track of valuable assets and ensure the safety of individuals across diverse environments. The low maintenance and extended battery life make it a robust solution for both large-scale facilities and remote field operations.

Hospital Asset Tracking with Bluetooth Beacons

Hospital Asset Tracking

Monitor vital medical equipment—like wheelchairs, heartrate monitors, CT machines, X-ray machines, and operating tables—to improve efficiency, reduce losses, and ensure timely patient care. Keep tabs on drug inventory to avoid expiration or misplacement.

Technical Details

Product Specifications

Mechanics

Dimension

160*160*55mm

Operating Temperature

-40°C ~ +70°C

Charging Temperature

-20°C ~ +60°C

Storage Temperature

-45°C ~ +85°C

Operating Humidity

0% ~ 95% (non-condensing)

Weight

460g

Ingress Protection

IP66

Power

Battery

Li-ion rechargeable battery 5300mAh

Battery Life

One month in continuous rainy days @ Bluetooth continuous receiving and 60s LoRaWAN report interval. Please refer to our battery life calculator for detailed battery life information

Solar Panel

3W

Connectivity

Bluetooth Protocol

Bluetooth 5.0

LoRaWAN Protocol

LoRaWAN 1.0.2B

LoRa Frequency

US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470

LoRa Maximum RF Power

22dBm

High TX Power Option

Max. 30dBm and -150dBm receiving sensitivity

LoRa Sensitivity

-139dBm @SF12, BW125kHz, 434MHz/470MHz -137dBm @SF12, BW125kHz, 868MHz/915MHz

Access Quantity

>500 in one LoRaWAN gateway

Data Rate (bps)

300~30K

Encryption

AES128

Functions

Positioning Precision

3m

Bluetooth Data Filter and Report

Filter any data bytes in a Bluetooth payload and report any via LoRaWAN

Switch

Mechanical

Adjustable Position Report Interval

5s x n (1 to 65536)

Heartbeat Report Interval

30s x n (1 to 255)

FOTA over Bluetooth

Support

Water Level Detection

Optional

Max. Beacons Supported

105 *, maximum of 15 beacon messages at one single LoRaWAN package @SF9

* Please reach out to us if more are needed.

Certification

CE, FCC, RCM

LoRaWAN
Macro Bluetooth Gateway

The Lansitec Macro Bluetooth Gateway takes long-range, low-power tracking to the next level. Designed with LoRaWAN and Bluetooth 5.0 at its core, it efficiently gathers beacon or sensor data—such as temperature, humidity, or location—and forwards it to LoRaWAN gateways for real-time monitoring. Thanks to its industrial-grade 38,000mAh lithium thionyl chloride battery, this gateway can run for years, minimizing maintenance while ensuring consistent performance. With a resilient IP66-rated enclosure, wide operating temperature range, and versatile data filtering capabilities, the Macro Bluetooth Gateway delivers dependable, high-precision monitoring in challenging indoor and semi-outdoor environments.

Features

What Makes it Unique

  • Industrial-Grade Battery (38,000mAh) Powered by dual 19,000mAh (up to 6 are supported) Li-SoCl2 batteries, delivering up to seven years of continuous service for minimal downtime.
  • Indoor Tracking Precision (3m) Maintain accurate, real-time asset or personnel visibility in complex indoor spaces, reducing operational inefficiencies.
  • Geo-Fencing Configure virtual boundaries for proactive alerts when tracked items move beyond defined zones.
  • Rugged IP66 Construction Sealed against dust and moisture, the Macro Bluetooth Gateway is built to withstand harsh environments.
  • Flexible Data Transmission Forward beacon and sensor readings via LoRaWAN to your app or cloud platform, with adjustable reporting intervals to optimize battery life.
  • Advanced BLE Payload Filtering Filter out specific data bytes from Bluetooth payloads and report only the information you need, cutting down on redundant transmissions.
  • Wide Temperature Range Engineered to function reliably between -45°C and +85°C, making it suitable for demanding industrial settings.
  • Wide TempaExtended Reporting & Heartbeat Intervalserature Range Set custom uplink or heartbeat intervals to refine power consumption and data granularity.

Use Cases

Where it Could be Used for

Vehicle Tracking with Bluetooth Beacons

Vehicle Tracking

Monitor fleet activity in real time to enhance dispatch efficiency, optimize routes, and cut down on overall operational costs.

Fridge Food Temperature Monitor LoRaWAN Macro Bluetooth Gateway LANSITEC TECHNOLOGY CO. LTD

Bluetooth data Communication

Seamlessly transmit temperature, humidity, liquid level, vibration and other BLE sensor readings to LoRaWAN gateways for robust data analytics and swift decision-making.

Warehouse Shelf LoRaWAN Macro Bluetooth Gateway LANSITEC TECHNOLOGY CO. LTD

Asset and Personal Tracking

Protect high-security zones by tracking employee access and movements, helping to prevent unauthorized entry or potential theft. Prevent unauthorized entry, theft, and potential destruction, thereby protecting critical data, devices, and infrastructure.

Hospital Asset Tracking with Bluetooth Beacons

Hospital Asset Tracking

Monitor vital medical equipment—like wheelchairs, heartrate monitors, CT machines, X-ray machines, and operating tables—to improve efficiency, reduce losses, and ensure timely patient care. Keep tabs on drug inventory to avoid expiration or misplacement.

Technical Details

Product Specifications

Mechanics

Dimension

160*160*55mm

Operating Temperature

-45°C ~ +85°C

Storage Temperature

-60°C ~ +90°C

Operating Humidity

0% ~ 95% (non-condensing)

Weight

530g

Ingress Protection

IP66

Power

Battery

Li-SoCl2 Battery, 19000mAhx2

Battery Life

Standby current: 25μA Total Uplink Reports: 720,000 83 months @ 5 minutes report interval Please refer to our battery life calculator for detailed battery life information

Connectivity

Bluetooth Protocol

Bluetooth 5.0

LoRaWAN Protocol

LoRaWAN 1.0.2B

LoRa Frequency

US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470

LoRa Maximum RF Power

22dBm

High TX Power Option

Max. 30dBm and -150dBm receiving sensitivity

LoRa Sensitivity

-139dBm @SF12, BW125kHz, 434MHz/470MHz -137dBm @SF12, BW125kHz, 868MHz/915MHz

Access Quantity

>500 in one LoRaWAN gateway

Data Rate (bps)

300~30K

Functions

Encryption

AES128

Positioning Precision

3m

Bluetooth Data Filter and Report

Filter any data bytes in a Bluetooth payload and report any via LoRaWAN

Switch

Mechanical

Adjustable Position Report Interval

5s x n (1 to 65536)

Heartbeat Report Interval

30s x n (1 to 255)

FOTA over Bluetooth

Support

Switch

Mechanical

Max. Beacons Supported

105*, maximum of 15 beacon messages at one single LoRaWAN package @SF9

* Please reach out to us if more are needed.

Certification

CE, FCC, RCM

LoRaWAN

Indoor Bluetooth Gateway

Elevate your indoor asset and personnel tracking with the Lansitec Indoor Bluetooth Gateway. Designed around Bluetooth 5.0 technology and LoRaWAN, this gateway ensures seamless data transmission without additional network fees—even across long distances. By collecting beacon signals from badges, bracelets, and various BLE sensors, it provides real-time insights into locations, movements, and environmental conditions. Whether you’re managing security staff, monitoring warehouse inventory, or overseeing event operations, the Indoor Bluetooth Gateway delivers low-power, high-efficiency connectivity to help you stay informed and in control.

Features

What Makes it Unique

  • Optimized for Indoor Environments Ideal for offices, warehouses, hospitals, or event venues, offering precise real-time tracking and minimal interference.
  • Cost-Effective LoRaWAN Connectivity Enjoy wide-area coverage without incurring extra network usage fees for data transmission.
  • Bluetooth 5.0 for Extended Range Benefit from robust signal strength and low power consumption when collecting data from BLE beacons and sensors.
  • Geo-Fence Support Establish virtual perimeters around critical areas, receiving alerts whenever tagged items or personnel enter or exit these zones.
  • Configurable Bluetooth Payload Filter and report only the data you need—such as temperature, humidity, or motion—reducing bandwidth and power usage.
  • Versatile Power Options Operate via a 600mAh rechargeable battery for short-term deployments or connect to a 5V/1A power source for continuous use.
  • FOTA Over Bluetooth Keep your gateway updated with over-the-air firmware upgrades, ensuring you always have the latest features and security patches.

Use Cases

Where it Could be Used for

Construction Site

Real-Time Staff Tracking

Issue connected badges to security personnel, maintenance workers, or event organizers. Monitor their locations and movements in real time to coordinate responses, deploy resources efficiently, and enhance on-site safety.

Lone Worker Construction Site Protection Indoor Bluetooth Gateway

Lone Worker Protection

Provide an extra layer of security for employees working late or in isolated areas. Automated alerts trigger if a staff member’s badge remains stationary for too long or enters restricted zones.

Case Study: Lansitec’s LoRaWAN UWB Solution for Anti-Collision in Industrial Environments

Facility Environment Monitoring

Collect temperature, humidity, and other environmental data via BLE sensors placed throughout your building. Analyze this information through LoRaWAN for better climate control, energy savings, and asset preservation.

Group of People Gathering Event Management Indoor Bluetooth Gateway

Event Crowd Management

Track attendee flow and prevent overcrowding. Strategically place the gateway around venues to gather data from wearable beacons, helping organizers optimize layouts and enhance crowd safety.

Technical Details

Product Specifications

Mechanics

Dimension

120*120*31mm

Operating Temperature

-40°C ~ +85°C

Storage Temperature

-45°C ~ +85°C

Operating Humidity

0% ~ 95% (non-condensing)

Weight

175g

Power

Battery

Li-ion rechargeable battery, 600mAh

Power Supply Mode

5V/1A

Connect to Power Source

Yes

Charge Jack

Micro USB

Connectivity

Bluetooth Protocol

Bluetooth 5.0

LoRaWAN Protocol

LoRaWAN 1.0.2B

LoRa Frequency

US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470

LoRa Fastest Communication Frequency

5s

LoRa Sensitivity

-139dBm @SF12, BW125kHz, 434MHz/470MHz
-137dBm @SF12, BW125kHz, 868MHz/915MHz

Functions

Geo-fence

Support

Encryption

AES128

Transmission Capacity

100 beacon messages can be received within 1s, maximum of 15 beacon messages can be sent in one package

Adjustable Bluetooth Payload to be reported

Filter any data bytes in a Bluetooth payload and report any via LoRaWAN

Adjustable Position Report Interval

5s x n (1 to 65536)

Heartbeat Report Interval

30s x n (1 to 255)

FOTA over Bluetooth

Support

Certification

CE, FCC, RCM

i5 Wearable
Bluetooth Beacon

The Lansitec i5 Wearable Bluetooth Beacon pairs a compact, IP67-rated beacon core with a comfortable silicone gel band—ensuring reliable, water-resistant performance in hospitals, care centers, event venues, and more. Powered by a single CR2032 battery, it continuously broadcasts iBeacon messages (with customizable intervals) for up to two years at 0 dBm. This durable bracelet is ideal for monitoring patients, visitors, or staff who need to be tracked in real time, helping improve safety protocols and operational efficiency. An optional AoA upgrade enables precision location services, further enhancing the beacon’s value in security-sensitive or healthcare environments.

i5 Wearable Bluetooth Beacon Features

What Makes it Unique

  • IP67 Water Resistance Fully sealed beacon core withstands splashes, dust, and submersion, making it suitable for frequent sanitization or outdoor usage.
  • Comfortable Silicone Gel Band Durable yet gentle on skin; easily adjustable for different wrist sizes in patient or visitor applications.
  • Extended Battery Life A CR2032 (230 mAh) cell provides up to 2 years of continuous broadcasting at 0 dBm/5 s intervals.
  • Multiple Power Settings RF power adjustable from -40 to +4 dBm, plus advertisement intervals from 100 ms to 10 s to balance energy consumption and detection range.
  • Optional AoA Support Combine with AoA-capable gateways to achieve sub-meter accuracy for high-priority tracking.
  • Lightweight & Low Profile Weighs just 21 g in total (7.8 g main body + band), offering ease and comfort for daily wear.

i5 Wearable Bluetooth Beacon Use Cases

What it Could be Used for

hospital2

Patient Safety & Tracking

Monitor patient movements in hospitals or care facilities to ensure timely treatment and prevent wandering. In emergencies, instantly identify the patient’s location for faster response.

Visitor Experience at Tourist Attractions with B004 Bluetooth Beacon

Visitor Monitoring

Issue bracelets to visitors in restricted or high-traffic venues, such as exhibitions or theme parks. Track real-time occupancy and movement patterns without the inconvenience of check-in stations.

Helmet Sensor for Factory Personnel Tracking

Personnel Security

Assign wearable beacons to staff working in sensitive environments (labs, server rooms), triggering alerts if they approach unauthorized zones or need immediate assistance. Provide employees or visitors with the beacon in large facilities. Combine with BLE gateways to detect real-time whereabouts, ensuring security and prompt responses to emergencies or restricted-area violations.

Public Spaces Outdoor Event Socket Sync Bluetooth Gateway

Recreation & Sports

Arm participants with waterproof, lightweight tags for events like marathons or group activities. Organizers can track progress, record times, and quickly handle on-site medical or security incidents.

B010 Industrial Beacon: Advanced Real-Time Asset Tracking Solution

Workplace Timekeeping

Use the i5 Beacon as an automated check-in/check-out device for factory workers or contractors operating in large facilities. The hands-free beacon logs location-based timestamps, reducing manual paperwork while improving attendance accuracy.

Technical Details

Product Specifications

Mechanics

Dimension

32.6*9.0mm

Weight

Main body: 7.8g; Total weight (with band): 21g

Color

Main: white, Band: black

Material

Main: ABS, Band: silicon gel

Operating Temperature

-20°C~+70°C

Storage Temperature

-25°C~+75°C

Operating Humidity

5% ~ 95% (non-condensing)

Ingress Protection

IP67

Power

Battery

CR2032

Battery Capacity

230mAh

Battery Life

2 years @ 0dBm, 5s advertising interval

Standby Current

≤5μA

Peak Current

8mA

Average Current

12μA @ 0dBm, 5s advertising interval

Connectivity

Beacon Protocol

iBeacon

RF Power

-40~+4dBm

Advertise Interval

100ms~10s

Transmission Distance

150m sight distance

Bluetooth Protocol

Bluetooth 5.0

i3 Portable Bluetooth Tag

Unlock effortless asset and personnel tracking with the Lansitec i3 Portable Bluetooth Tag. Featuring a compact 38 × 25 × 5 mm design, this beacon advertises iBeacon packets continuously and can broadcast up to six distinct frames. Powered by a CR2032 coin cell, it delivers up to 765 days of battery life under typical conditions. Thanks to its built-in 3D accelerometer, the tag can dynamically report movement data—ideal for monitoring medical equipment, vehicles, or any items in motion. The optional AoA (Angle of Arrival) feature further refines location accuracy for environments requiring pinpoint tracking.

i3 Portable Bluetooth Tag Features

What Makes it Unique

  • Ultra-Compact Build Fits easily on medical devices, office equipment, or personal belongings without adding bulk.
  • Multi-Frame Advertising Supports up to six simultaneous beacon frames for richer data broadcasts (e.g., iBeacon plus custom telemetry).
  • 3D Accelerometer Triggers dynamic movement-based advertising to capture usage patterns or detect unauthorized activity.
  • Flexible Triggers Configure advertisement intervals (100 ms to 10 s) and power levels (-20 dBm to +5 dBm) to balance battery usage and detection range.
  • Extended Battery Life With a 230 mAh CR2032 battery, it can run up to 765 days on a 5 s interval at 0 dBm, minimizing maintenance.
  • Optional AoA Support Paired with AoA-capable gateways, achieves more accurate location tracking in crowded or multi-floor indoor environments.

i3 Portable Bluetooth Tag Use Cases

What it Could be Used for

Hospital Asset Tracking with Bluetooth Beacons

Hospital Asset Tracking

Affix the beacon to portable imaging devices, patient transport carts, or medication boxes for real-time location updates. Accelerometer data reveals usage frequency, while battery-saving intervals reduce overhead.

Lansitec B Mobile Solution for Car and Key Tracking in Dealerships 2 i3+ Portable Bluetooth Label LANSITEC TECHNOLOGY CO. LTD

Vehicle Monitoring

Place tags on key sets or diagnostic tools. Quick detection ensures minimal downtime during maintenance, and movement alerts can detect unauthorized usage or potential theft.

Helmet Sensor for Factory Personnel Tracking

Personnel Tracking

Issue tags to staff in high-security environments (labs, server farms). The 3D accelerometer triggers location broadcasts only upon movement, prolonging battery life while retaining accurate logs of who goes where.

Smart Helmet with Sensors for Accident Prevention Enhancing Safety and Efficiency

Tool Inventory

Keep close tabs on power tools or specialized equipment in workshops. Movement-based broadcasts reveal usage rates and movement data, helping managers coordinate maintenance schedules.

Retail & Event Engagement with Bluetooth Beacons

Smart Retail & Events

Equip conference badges or promotional items with multi-frame beaconing. Organizers track crowd flow and engagement in real time, enhancing visitor experiences and capturing actionable insights for marketing or security purposes.

Technical Details

Product Specifications

Mechanics

Dimension

38*25*5mm

Weight

6.2g

Color

White

Material

ABS

Hole Size

3mm

Operating Temperature

-20°C~+70°C

Storage Temperature

-25°C~+75°C

Operating Humidity

5% ~ 95% (non-condensing)

Installation Method

Double-side adhesive paste

Power

Battery

CR2032

Battery Capacity

230mAh

Battery Life

765 days on average @ 0dBm, 5s advertising interval, without the 3D Accelerometer

Standby Current

≤5μA

Peak Current

8mA

Average Current

15μA @ 0dBm, 5s advertising interval, without the 3D Accelerometer

Connectivity

Beacon Protocol

iBeacon

RF Power

-20~+4dBm

Advertise Interval

100ms~10s

Transmission Distance

150m sight distance

Bluetooth Protocol

Bluetooth 5.0

LoRaWAN
Helmet Sensor

Enhance worker safety and operational efficiency with the Lansitec Helmet Sensor. Combining GNSS, Bluetooth 5.0, and LoRaWAN technology, this sensor supports accurate indoor and outdoor positioning, making it ideal for construction sites, factories, distribution centers, or wide-open environments like ports and airports. From wear detection and fall alarms to zone-based alerts and step counting, the Helmet Sensor proactively monitors worker activities and conditions. Its integrated 3-axis accelerometer helps conserve battery by adjusting tracking frequency based on motion, while the robust IP66 and IK10-rated enclosure stands up to harsh industrial settings. Whether you’re looking to streamline visitor management, protect lone workers, or optimize fleet oversight, the Lansitec Helmet Sensor delivers real-time data and reliable performance where it matters most.

Features

What Makes Helmet Sensor Unique

  • Comprehensive Sensing & Alerts Wear detection, fall detection, panic alarm, overstay alarm, and zone-based alerts for enhanced worker safety.
  • Accurate Indoor/Outdoor Tracking Utilize Bluetooth for up to 3m accuracy indoors and GNSS with 2.5m precision outdoors.
  • Robust Design IP66-rated and IK10 impact protection keeps the device functioning in harsh environmental and industrial conditions.
  • Efficient Battery Use Built-in 3-axis accelerometer and barometer help manage power consumption by detecting motion and altitude changes.
  • Simple Integration & Deployment NFC for quick device identification, magnetic charging port, and optional FOTA over Bluetooth streamline setup and updates.
  • Flexible Connectivity LoRaWAN connectivity provides low-cost, long-range coverage, reducing the need for expensive cellular plans.
  • Asset Management Compatibility Pair the sensor with BLE tags or beacons to gather location data from additional equipment or tools in the field.

Use Cases

Helmet Sensor Could be Used for

Build Smarter: B010 & B-Mobile for Construction Tracking

Construction Worker Tracking

Monitor on-site personnel for fall incidents, overstay alerts, and emergency notifications in large construction environments.

Visitor Experience at Tourist Attractions with B004 Bluetooth Beacon

Visitor Management

Assign sensors to visitors in industrial facilities, ensuring authorized access and swift response to alarms or unauthorized movements.

Helmet Sensor for Factory Personnel Tracking

Factory Personnel Tracking

Improve shift management, locate workers during emergencies, and monitor time spent in restricted zones to boost operational safety.

Aerial Work Oversight Environment Helmet

Aerial Work Oversight

Track height data and detect sudden movements or falls for elevated work teams, increasing safety compliance.

Hazardous Environment

Hazardous Environment Monitoring

Deploy in mines, chemical plants, or other hazardous locations to detect falls, track exposure times, and enforce safety protocols.

Emergency Evacuation & Rescue

Emergency Evacuation & Rescue

Use real-time location data to quickly locate staff or visitors during crises, reducing response times and improving outcomes.

Technical Details

Helmet Sensor Specifications

Mechanics

Dimension

80*80*35mm

Operating Temperature

-10°C~+65°C

Charging Temperature

0°C~+50°C

Storage Temperature

-20°C~+80°C

Operating Humidity

5% ~ 95% (non-condensing)

Weight

90g

Housing Material

ABS and PC

Ingress Protection

IP66

Impact Protection

IK10

Power

Battery

Li-ion rechargeable battery, 1200mAh

GNSS (report interval>10minutes)

Approx. 8,000 times

Bluetooth Positioning

Approx. 33,000 times

Standby Current

25μA

Max. Current

145mA

Connectivity

Bluetooth Protocol

Bluetooth 5.0, iBeacon

Bluetooth TX Power

-20 to +4 dBm TX power, configurable in 4dBm steps

Bluetooth Sensitivity

-96dBm

Bluetooth Positioning Accuracy

3m

LoRaWAN Protocol

LoRaWAN 1.0.2B, Class A

Activation Mode

OTAA or ABP

LoRa Frequency

US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470

LoRa TX Power

0 to 20dBm

LoRa Sensitivity

-139dBm @SF12, BW125kHz, 434MHz/470MHz
-137dBm @SF12, BW125kHz, 868MHz/915MHz

LoRa Distance

> 1km in urban area

Encryption

AES128

GNSS

BDS/GPS/GLONASS

GNSS Tracking Accuracy

2.5m

GNSS Cold Start Duration 30s to

30s to 120s

Functions

3D Accelerometer

Support

Barometer

Support, 10cm altitude accuracy

PCB Coating

Water proof coating

NFC Tag (optional)

1KB

Adjustable Position Report Interval

5s x n (0 to 65535)

Heartbeat Report Interval

30s x n (1 to 255)

Switch

Touch button x2

FOTA over Bluetooth

Support

Battery Level Report

Support

Proximity Detection

Support

Asset management with Bluetooth

Report nearby Bluetooth beacons/tags to a LoRaWAN gateway

LoRaWAN
Container Tracker

Keep track of your valuable assets, wherever they travel, with the Lansitec Container Tracker. Equipped with GNSS, Bluetooth, and LoRaWAN technology, it excels at both indoor and outdoor positioning—providing real-time visibility into containers, transit cases, heavy machinery, and more. Its rugged IP68-rated enclosure and ultra-long battery life allow for extended deployments in harsh environments, while tamper detection and vibration sensing enhance security and damage prevention. From monitoring a single container in motion to overseeing an entire fleet of shipping assets, the Lansitec Container Tracker helps you reduce losses, streamline logistics, and maintain full control over your operations.

Features

What Makes it Unique

  • GNSS & Bluetooth Integration Combine multi-satellite tracking (GPS, BDS, GALILEO, GLONASS, QZSS, SBAS) with BLE for accurate indoor and outdoor positioning.
  • IP68-Rated Durability Ensure reliable performance in harsh or wet environments, ideal for long-haul shipping and outdoor storage.
  • Ultra-Long Battery Life Powered by dual Li/SOCl2 4000mAh batteries, enabling thousands of position reports before a recharge or replacement is needed.
  • Tamper & Vibration Detection Receive real-time alerts if the device is removed from a container or subjected to excessive shocks.
  • Door Open/Close Sensing Monitor access in transit, reducing theft and unauthorized entry.
  • Offline Cache & FOTA Stores up to 40 positions when out of network range, and supports firmware updates over Bluetooth for ongoing performance improvements.
  • Built-In 3D Accelerometer Track movement duration and vibration intensity to gauge usage, detect mishandling, and prevent damage.
  • Asset Management with Bluetooth Tags Collect data from nearby BLE tags to monitor secondary assets, inventory items, or equipment within the container.

Use Cases

Where it Could be Used for

Container

Container Tracking

Gain real-time visibility of thousands of containers across fleets. An instant alarm triggers if the tracker is tampered with, securing shipments and preventing unauthorized removal.

Transit Case LoRaWAN Container Tracker

Transit Case Tracking

Maintain continuous oversight of sensitive materials, ensuring you know the location and contents of each case—whether in a warehouse or on the move.

Factory Machine Status Monitoring LoRaWAN Container Tracker

Machine Status Monitoring

Track movement patterns, vibration shocks, and usage durations for large machinery. Receive alerts if operational limits are exceeded or if equipment is moved unexpectedly.

Indoor Asset Tracking Solution

Asset Management

Link Bluetooth tags to monitor additional items stored within a container or transit case. Stay informed about which assets are present, and simplify inventory control.

Enhancing Logistics Efficiency with Lansitec Cat-1 Trackers and Bluetooth Beacons

Logistics Chain Integrity

Verify consistent travel routes and detect unauthorized stops or deviations. Door open/close sensing and location logging help maintain complete supply chain visibility.

Macine or Equipment Rentla LoRaWAN Container Tracker

Equipment Rental Oversight

Manage and bill based on actual usage time, detect misuse or excessive vibration, and collect location data for prompt retrieval of leased equipment.

Technical Details

Product Specifications

Mechanics

Dimension

198*28*33mm

Housing Material

PC and ABS

Operating Temperature

-20°C ~ +70°C

Storage Temperature

-10°C ~ +30°C

Operating Humidity

0% ~ 95% (non-condensing)

Weight

133g

Ingress Protection

IP68

Power

Battery

Li/SOCl2 4000mAh x 2

GNSS (report interval>10minutes)

Approx. 30,000 times

Bluetooth Positioning

Approx. 500,000 times

Standby Current

15μA

Max. Current

145mA

Bluetooth

Bluetooth Protocol

5.0, iBeacon

Bluetooth TX Power

-20 to +4 dBm TX power, configurable in 4 dB steps

Bluetooth Sensitivity

-96dBm

LoRaWAN

LoRaWAN Protocol

1.0.2B, Class A

Activation Mode

OTAA or ABP

LoRa Frequency

US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470

LoRa TX Power

0 to 20dBm

LoRa Sensitivity

-137dBm @SF12, BW125kHz, 868MHz/915MHz

LoRa Communication Distance

>1km in urban area

Encryption

AES128

GNSS

GNSS Position Accuracy

<2.5m CEP

GNSS Position Accuracy

<2.5m CEP

Cold Start Duration

30s to 60s

Functions

Adjustable Position Report Interval

5s x n (1 to 65536)

Heartbeat Report Interval

30s x n (1 to 65536)

Switch

Magnetic Reed

Temperature Report

Optional, please advise Lansitec upon ordering

Temperature Sensor Range

-40°C~+85°C

Temperature Accuracy

Chamber temperature in the beacon, ±5°C

Temperature Resolution

0.25°C

Tamper Detection

Support

FOTA over Bluetooth

Support

Movement Duration

Support

Door Open/Close Sensing

Support

Vibration Shock Detection

Support

Asset Management with Bluetooth Tags

Support (report nearby Bluetooth tags)

Offline Cache Position (40 Positions)

Support

Magnetic Power Switch Enable/Disable

Support

3D Accelerometer

Support

NFC Tag

1KB

LoRaWAN Bluetooth Proximity Sensor

Contact Tracing Badge

Lansitec contact tracing badge is designed based on Bluetooth 5.0 and LoRaWAN technology. It uses RSSI for distance measurement and contact tracing. The badge is mainly used for keeping social distance at the workplace or hospital and is especially useful during COVID-19.

Proximity detection function: the badge beeps when other badges approach. The badge can use vibration and sound to alert the user even without the LoRaWAN network. NFC function is also integrated into the badge to facilitate management.

Badge Tracker with Lanyard

Product Specifications

Connectivity

Bluetooth Protocol

Bluetooth 5.0

LoRaWAN Protocol

LoRaWAN 1.0.2B

LoRaWAN Band

US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470

LoRa Distance

>1km in urban area

LoRa Sensitivity

-139dBm @SF12, BW125kHz, 434MHz/470MHz -137dBm @SF12, BW125kHz, 868MHz/915MHz

Bluetooth Distance

150m sight distance

Indoor Tracking

Bluetooth, 2~3m accuracy

Mechanics

Dimension

96*61*7mm

Operating Temperature

-10°C ~ +65°C

Storage Temperature

-20°C ~ +80°C

Operating Humidity

5% ~ 95% (non-condensing)

Weight

28g

Operating Current

20μA ~139mA

Function

NFC

Supported

Encryption

AES128

Low Battery Alert

Supported

Buzzer

Supported

Vibrator

Supported

Vibrator Mechanical Noise

<50dB

Proximity Detection

Supported, 2 meters by default. Distance is adjustable through commands.

Bluetooth FOTA

Win10, Android, iOS

Decoder

On-line decoder and decoder source code to expedite the development

Power

Battery

Li-ion rechargeable battery, 600mAh

Battery Life

100 hours

Charge Jack

Micro USB

Certifications

Certification

CE, FCC, RCM, UN38.3

LoRaWAN

Compact
Bluetooth Gateway

Discover the power of portable, real-time tracking with the Lansitec Compact Bluetooth Gateway. Designed with Bluetooth 5.0 and LoRaWAN technology, this slim gateway captures nearby BLE beacon signals and transmits them to your LoRaWAN network for seamless monitoring. Equipped with a 600mAh rechargeable battery, it can operate wirelessly for approximately 10 hours on a single charge—or much longer with adjusted Bluetooth settings—making it ideal for short-term deployments, pop-up events, or on-the-go asset management. With a precision of up to 5 meters indoors and geo-fencing capabilities, the Compact Bluetooth Gateway offers a quick, flexible way to keep your assets, vehicles, and personnel in check.

Features

What Makes it Unique

  • 5m Indoor Tracking Precision Pinpoint assets and personnel within tighter indoor spaces for more accurate data collection and analysis.
  • Geo-Fence Support Create virtual perimeters to instantly detect when tracked items or individuals leave designated zones.
  • Long-Distance Bluetooth 5.0 Benefit from extended range and reduced power consumption, ensuring efficient data collection.
  • Flexible LoRaWAN Connectivity Transmit beacon signals to your server or cloud over LoRaWAN, enabling wide-area monitoring.
  • Compact, Portable Design At just 97×62×7mm, the gateway is easy to carry or install in tight spaces, making it versatile for various scenarios.
  • Built-In 600mAh Rechargeable Battery Enjoy around 10 hours of operation off the grid, with the option to optimize battery life by adjusting Bluetooth settings.
  • Configurable Bluetooth Payload Filter any data bytes from BLE sensors and forward only the essential information, reducing bandwidth and power usage.

Use Cases

Where it Could be Used for

Hospital Asset Tracking with Bluetooth Beacons

Hospital Asset Tracking

Efficiently locate medical equipment—like CT machines, X-ray machines, or operating tables—to streamline operations and prevent loss or damage.

Vehicle Tracking with Bluetooth Beacons

Vehicle Tracking

Manage vehicle and key locations in real-time to improve fleet scheduling, reduce operating costs, and enhance security.

Retail Inventory Compact Bluetooth Gateway

Retail Inventory Management

Maintain real-time oversight of stock in retail environments or pop-up stores. The compact form factor makes it easy to deploy near point-of-sale areas or shelves for immediate, actionable insights on product availability.

Conference Attendee Compact Bluetooth Gateway

Conference Attendee Tracking

Capture attendee check-ins and foot traffic patterns at events, allowing organizers to optimize layouts, manage crowd flow, and enhance overall attendee experience.

Technical Details

Product Specifications

Mechanics

Dimension

97*62*7mm

Operating Temperature

-10°C ~ +60°C

Storage Temperature

-40°C ~ +85°C

Operating Humidity

5% ~ 95% (non-condensing)

Weight

35g

Housing Materials

ABS

Power

Battery

Li-ion rechargeable battery 600mAh

Standby Current

25μA

Max. Current

500mA

Power Supply Mode

5V/1A

Charge Jack

Micro USB

Connectivity

Bluetooth Protocol

Bluetooth 5.0

LoRaWAN Protocol

LoRaWAN 1.0.2B

LoRa Frequency

US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470

LoRa Fastest Communication Frequency

5s

LoRa Sensitivity

-139dBm @SF12, BW125kHz, 434MHz/470MHz -137dBm @SF12, BW125kHz, 868MHz/915MHz

Transmission Capacity

100 beacon messages can be received within 1s, Maximum of 15 beacon messages can be sent in one package

Functions

Encryption

AES128

Indoor Tracking

3m

Geo-fence

Support

Bluetooth Data Filter and Report

Filter any data bytes in a Bluetooth payload and report any via LoRaWAN

Switch

Support

Adjustable Position Report Interval

5s x n (1 to 65536)

Heartbeat Report Interval

30s x n (1 to 65536)

FOTA over Bluetooth

Support

Max. Beacons Supported

105*, maximum of 15 beacon messages at one single LoRaWAN package @SF9

* Please reach out to us if more are needed.

Certification

CE, FCC, RCM

B005 Bluetooth Beacon

Experience long-lasting, hassle-free Bluetooth tracking with the Lansitec B005 Bluetooth Beacon, a robust BLE device delivering up to five years of continuous operation at a 500 ms advertising interval. Equipped with two high-capacity CR2477 batteries (total 2000 mAh), it broadcasts iBeacon or AoA messages to compatible gateways within a 150 m line-of-sight range. The IP68-rated enclosure and optional temperature monitoring ensure reliable performance in challenging conditions—making this beacon perfect for healthcare facilities, fleet operations, and large-scale asset tracking.

B005 Bluetooth Beacon Features

What Makes it Unique

  • Extended Battery Life Two CR2477 coin cells (2000 mAh total) enable up to five years of operation at 0 dBm, 500 ms transmit intervals.
  • Configurable Broadcast Advertisement intervals range from 100 ms to 10 s, with adjustable TX power from -20 dBm to +4 dBm.
  • IP68 Enclosure Dustproof, waterproof design (82 × 64 × 21 mm) with optional integrated temperature sensor (±5 °C accuracy).
  • AoA (Optional) Enhance location accuracy when paired with AoA-capable gateways, providing sub-meter asset or personnel tracking.
  • High Production Capacity Scalable supply of over 300 k units per month for widespread deployments in hospitals, factories, or logistics centers.

B005 Bluetooth Beacon Use Cases

What it Could be Used for

Hospital Asset Tracking with Bluetooth Beacons

Hospital Asset Tracking

Securely attach the beacon to essential medical gear (like ventilators, portable imaging devices) for multi-year tracking without frequent battery changes. Real-time location updates minimize the risk of lost or delayed equipment.

Lansitec B Mobile Solution for Car and Key Tracking in Dealerships 2 Bluetooth Beacon LANSITEC TECHNOLOGY CO. LTD

Vehicle Tracking

Maintain oversight of fleets, monitor vehicle keys, or track on-board cargo. With up to 150 m coverage, operators can pinpoint items quickly, cutting downtime and preventing unauthorized use.

Retail Inventory Compact Bluetooth Gateway

Warehouse Optimization

Place beacons on pallets or storage bins. The extended battery life allows them to remain in place for years, reducing maintenance overhead while providing continuous inventory visibility.

Cold Chain Logistic Temperature Monitoring

Extreme-Temperature Deployments

Leverage the optional -40 °C to +125 °C battery configuration for cold storage facilities or hot industrial plants, preserving operational data in harsh conditions.

Public Spaces Outdoor Event Socket Sync Bluetooth Gateway

Outdoor Event Management

Deploy beacons at outdoor fairs or festivals under IP68 protection. AoA capabilities and optional buzzer features enable real-time geolocation of staff or temporary structures, optimizing crowd flow and safety.

Technical Details

Product Specifications

Mechanics

Dimension

82*64*21mm (with the lug)

Weight

43g

Color

White

Material

PC

Operating Temperature

-20°C~+70°C; optional: 1200mAh battery, -40°C~+125°C

Storage Temperature

-25°C~+75°C

Operating Humidity

5% ~ 95% (non-condensing)

Ingress Protection

IP68

Power

Battery

CR2477 (1000mAh) x2

Battery Capacity

2000mAh

Battery Life

5 Years (0dBm, 0.5s transmit interval)

Connectivity

Bluetooth Protocol

iBeacon, Bluetooth AoA

RF Power

-20~+4 dBm, configurable in 4 dBm steps

Sensitivity

-96dBm

Advertise Interval

100ms ~ 10s adjustable

Bluetooth Protocol

Bluetooth 5.1

Coverage Range

150m sight distance

Supply Capacity

>300k/month

Frequency

2.4GHz

Functions

Temperature Report

Optional, please advise Lansitec upon ordering

Temperature Sensor Range

-40°C~+85°C

Temperature Accuracy

Chamber temperature in the beacon, ±5°C

Temperature Resolution

0.25°C

Buzzer

Optional

Certification

CE, FCC

LoRaWAN
Badge Tracker

Achieve seamless personnel and asset tracking with the Lansitec Badge Tracker. Combining GNSS, Bluetooth 5.0, and LoRaWAN technology, this sleek device provides accurate real-time positioning both indoors and outdoors—perfect for managing workforce, visitors, and critical assets across large facilities. The built-in 3-axis accelerometer intelligently detects movement or falls, conserving battery when the device is idle and alerting you to unauthorized or emergency situations. With a maximum of five months standby time and no additional network fees, the Badge Tracker offers a cost-effective, high-precision solution for securing sensitive areas, optimizing resource usage, and improving operational workflows.

Features

What Makes it Unique

  • Dual Indoor/Outdoor Positioning Switches between Bluetooth for indoor tracking (1–3m accuracy) and GNSS for outdoor tracking (<2.5m CEP), ensuring constant visibility of personnel or assets.
  • 3-Axis Accelerometer Detects movement, falls, or illegal handling; helps conserve battery by adjusting tracking activity based on real-time motion status.
  • Long-Lasting Battery The 600mAh rechargeable battery can last up to five months in standby, reducing maintenance and downtime.
  • Low Total Cost LoRaWAN connectivity eliminates the need for cellular data plans, lowering operational expenses and simplifying deployment.
  • Flexible Configuration Easily adjust GNSS location acquisition frequency, LoRa communication intervals, and Bluetooth parameters for optimal performance and power consumption.
  • Enhanced Security Features AES128 encryption, vibration intensity adjustment, and low-battery alerts help maintain a secure, reliable solution for critical tracking needs.

Use Cases

Where it Could be Used for

Visitor Experience at Tourist Attractions with B004 Bluetooth Beacon

Worker & Visitor Management

Grant badges to employees and visitors for real-time location monitoring. Use location data to restrict access to sensitive zones, expedite emergency responses, and maintain a secure work environment.

Warehouse Shelf LoRaWAN Badge Tracker LANSITEC TECHNOLOGY CO. LTD

Warehouse Asset Management

Track valuable equipment and inventory in real time. Leverage the device’s accelerometer data for insights into usage patterns and plan preventive maintenance.

Lansitec B Mobile Solution for Car and Key Tracking in Dealerships 2 LoRaWAN Badge Tracker LANSITEC TECHNOLOGY CO. LTD

Vehicle Tracking & Safety

Keep tabs on company vehicles, dispatch them efficiently, and monitor key metrics—like speed or potential malfunctions—to reduce costs and enhance driver safety.

Indoor Asset Tracking Solution

Fleet Optimization & Resource Allocation

Whether it’s forklifts in a warehouse or carts in a large facility, monitor routes, idle time, and overall usage to improve operational workflows and reduce congestion.

Public Spaces Outdoor Event Socket Sync Bluetooth Gateway

Event & Conference Management

Provide attendees, staff, or VIPs with badges that enable real-time location tracking. Streamline crowd flow, handle security threats proactively, and create data-driven insights for future event planning.

Technical Details

Product Specifications

Mechanics

Dimension

97*62*7mm

Operating Temperature

-10°C ~ +65°C

Storage Temperature

-20°C ~ +80°C

Operating Humidity

0% ~ 95% (non-condensing)

Weight

28g

Power

Battery

Li-ion rechargeable battery, 600mAh

Battery Life

Maximum 5 months

Charging Method

Micro USB

Operating Current

20μA ~139mA

Connectivity

Bluetooth Protocol

Bluetooth 5.0

LoRaWAN Protocol

LoRaWAN 1.0.2B

LoRa Frequency

US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470

LoRa Distance

>1km in urban area

LoRa Sensitivity

-139dBm @SF12, BW125kHz, 434MHz/470MHz
-137dBm @SF12, BW125kHz, 868MHz/915MHz

Bluetooth Distance

150m sight distance

Indoor Tracking

GNSS, <2.5m CEP

Functions

3D Accelerometer

Support

Encryption

AES128

Low Battery Alert

Support

Vibration Intensity Adjustment

Support

Buzzer

Support

NFC

Support

Operating Mode

GNSS coordinates acquisition frequency adjustable,LoRa communication frequency adjustable, Automatic BLE and GNSS tracking switching

Certification

CE, FCC, RCM

B006 Badge
Bluetooth Beacon

Introducing the Lansitec B006 Badge Bluetooth Beacon—a versatile, badge-style transmitter designed for easy wear or attachment. Powered by either a 600 mAh rechargeable Li-ion battery or a 440 mAh non-rechargeable option, it offers up to one year of service at 0 dBm and a 1 s advertisement interval. Broadcasting iBeacon messages continuously, the B006 can be fine-tuned (100 ms to 5 s intervals) to balance coverage (up to 150 m) and battery longevity. Whether tracking hospital equipment or managing a mobile workforce, this compact beacon (97×62×7 mm) offers flexible power choices, optional temperature sensing, and an AoA upgrade for precise location data.

B006 Badge Bluetooth Beacon Features

What Makes it Unique

  • Flexible Battery Options Choose between a 600 mAh rechargeable battery or a 440 mAh non-rechargeable (2×CR2032) battery to suit specific operational needs.
  • Up to 1 Year Standby Maintain reliable performance at 0 dBm with a 1 s broadcast interval, saving on maintenance checks.
  • Adjustable TX & Interval Set transmit power from -20 dBm to +4 dBm and adjust advertisement intervals (100 ms to 5 s) for maximum efficiency or real-time detection.
  • Wide Coverage Achieves a line-of-sight range of up to 150 m, ideal for industrial or campus-wide environments.
  • Optional AoA & Temperature Sensing Unlock precise asset tracking or environment monitoring by pairing with AoA-capable gateways or adding the temperature sensor.
  • Robust Build Lightweight ABS housing with optional buzzer integration for alerts or lost-and-found functionality.

B006 Badge Bluetooth Beacon Use Cases

What it Could be Used for

Hospital Asset Tracking with Bluetooth Beacons

Hospital Asset Tracking

Label medical devices, beds, or patient wristbands with a rechargeable or disposable beacon. Real-time location data minimizes the risk of equipment misplacement and ensures timely patient care.

Lansitec B Mobile Solution for Car and Key Tracking in Dealerships 2 Badge Bluetooth Beacon LANSITEC TECHNOLOGY CO. LTD

Vehicle Monitoring

Attach the beacon to driver badges or keyrings in fleet operations. Proactively track usage hours, location, and unauthorized movement to improve operational efficiency and security.

Indoor Asset Tracking Solution

Warehouse Automation

Monitor pallets, carts, or staff ID badges in large distribution centers. The adjustable interval and power level let you balance real-time inventory checks with battery preservation.

Visitor Experience at Tourist Attractions with B004 Bluetooth Beacon

Facility Access Control

Integrate with ID management systems for employees or visitors. AoA support offers floor-level accuracy, while the buzzer feature enables audible prompts during restricted-area breaches.

Public Spaces Outdoor Event Socket Sync Bluetooth Gateway

Event Credentialing

Use the B006 as an event pass that logs entries, triggers location-based announcements, or assists in crowd flow analysis. The long standby time covers multi-day conferences without frequent battery swaps.

Technical Details

Product Specifications

Mechanics

Dimension

97*62*7mm

Color

White

Material

ABS

Operating Temperature

-10°C~+65°C

Storage Temperature

-20°C~+80°C

Operating Humidity

5% ~ 95% (non-condensing)

Power

Battery Option 1

Li-ion rechargeable battery, 600mAh

Battery Option 2

440mAh (2 x CR2032) non-rechargeable battery

Battery Life

One year (TX Power 0dBm, 1s interval)

Connectivity

Beacon Protocol

iBeacon

RF Power

4dBm to -20dBm in a 4dBm step (Bluetooth 5.0)

Sensitivity

-97dBm

Advertise Interval

100ms ~ 5s adjustable

Bluetooth Protocol

Bluetooth 5.0

Coverage Range

150m sight distance

Supply Capacity

>300k/month

Functions

Temperature Report

Optional, please advise Lansitec upon ordering

Temperature Sensor Range

-40°C~+85°C

Temperature Accuracy

Chamber temperature in the beacon, ±5°C

Temperature Resolution

0.25°C

Buzzer

Optional

B010 Industrial Beacon

Meet the Lansitec B010 Industrial Beacon, an IP68-rated Bluetooth 5.0 device built for reliable tracking in harsh environments like factories, warehouses, and shipping yards. Powered by two AA batteries (or optional Li/SOCl₂ cells), it can broadcast iBeacon messages for up to five years at 0 dBm and a one-second interval. Its robust PC housing shields internal components from dust, moisture, and vibrations, while optional AoA support delivers precise positioning for high-value assets and personnel. With a maximum range of 100 m and user-configurable TX power and intervals, the B010 stands out as a durable, long-lasting beacon solution.

B010 Industrial Beacon Features

What Makes it Unique

  • Long Battery Life Achieves up to five years of continuous iBeacon broadcasts at 0 dBm and a one-second interval using AA or Li/SOCl₂ battery options.
  • IP68 Industrial Casing Dustproof, waterproof PC enclosure (100×100×20 mm) withstands tough environments and temperature extremes.
  • Adjustable RF & Intervals Fine-tune output power (-20 dBm to +4 dBm) and advertisement rate (100 ms to 5 s) for optimal coverage and battery efficiency.
  • Optional AoA Support Improves real-time location tracking when paired with AoA-compatible gateways, making it ideal for large-scale production floors or busy distribution centers.
  • OTA Updates Use iOS, Android, or Windows 10 devices to adjust UUID, TX power, or intervals without dismantling the beacon.

B010 Industrial Beacon Use Cases

What it Could be Used for

Hospital Asset Tracking with Bluetooth Beacons

Hospital Asset Tracking

Attach to critical medical equipment—like imaging devices or mobile carts—for real-time location monitoring. Streamlined searches reduce downtime and prevent equipment misplacement, especially in high-traffic areas.

Lansitec B Mobile Solution for Car and Key Tracking in Dealerships 2 Industrial Beacon LANSITEC TECHNOLOGY CO. LTD

Vehicle Tracking

Ideal for fleet yards, distribution hubs, or small vehicles in factories. Broadcast vehicle presence, enabling route optimization and reducing operational costs associated with idle time and unauthorized movement.

Case Study: Lansitec’s LoRaWAN UWB Solution for Anti-Collision in Industrial Environments

Industrial Workflow

Implement in factories to monitor material flow and coordinate forklift paths. The beacon’s extended battery life and IP68 enclosure thrive amid dust, vibrations, and varying climates.

Warehouse Shelf Industrial Beacon LANSITEC TECHNOLOGY CO. LTD

Heavy-Duty Storage

Label long-term storage containers outdoors or in partially covered areas. The optional Li/SOCl₂ battery ensures year-round operation, even in freezing winters or scorching summers.

Mining & Remote Site Operations

Construction & Mining

Track mobile assets or workers in rugged sites. AoA compatibility offers detailed location data, helping managers keep staff safe and respond promptly to equipment relocations or anomalies.

Technical Details

Product Specifications

Mechanics

Dimension

100*100*20mm

Weight

150g

Material

PC

Operating Temperature

-20 to 54°C (Alkaline battery), optional: -40°C ~ 85°C Li/SOCl2 Battery

Storage Temperature

-25°C ~ +75°C

Operating Humidity

5% ~ 95% (non-condensing)

Ingress Protection

IP68

Power

Battery

AAx2; optional Battery: 2xER14250 (2x1200mAh)

Battery Life

10 years @ 0dBm and 0.5s advertisement interval

Bluetooth

Bluetooth Protocol

Bluetooth 5.0

Beacon Protocol

iBeacon

Frequency

2.402GHz to 2.480GHz

TX Power

-20 to +4 dBm TX power, configurable in a 4 dBm step

Sensitivity

-96dBm

Range

Up to 100m

Advertising Interval

100ms ~ 5s, configurable in a 100ms step, 1s in default

UUID by Default

F2-A5-2D-43-E0-AB-48-9C-B6-4C-4A-83-00-14-67-20

OTA

Support iOS, Android, Windows 10

Antenna

PCB Antenna

en_USEnglish
